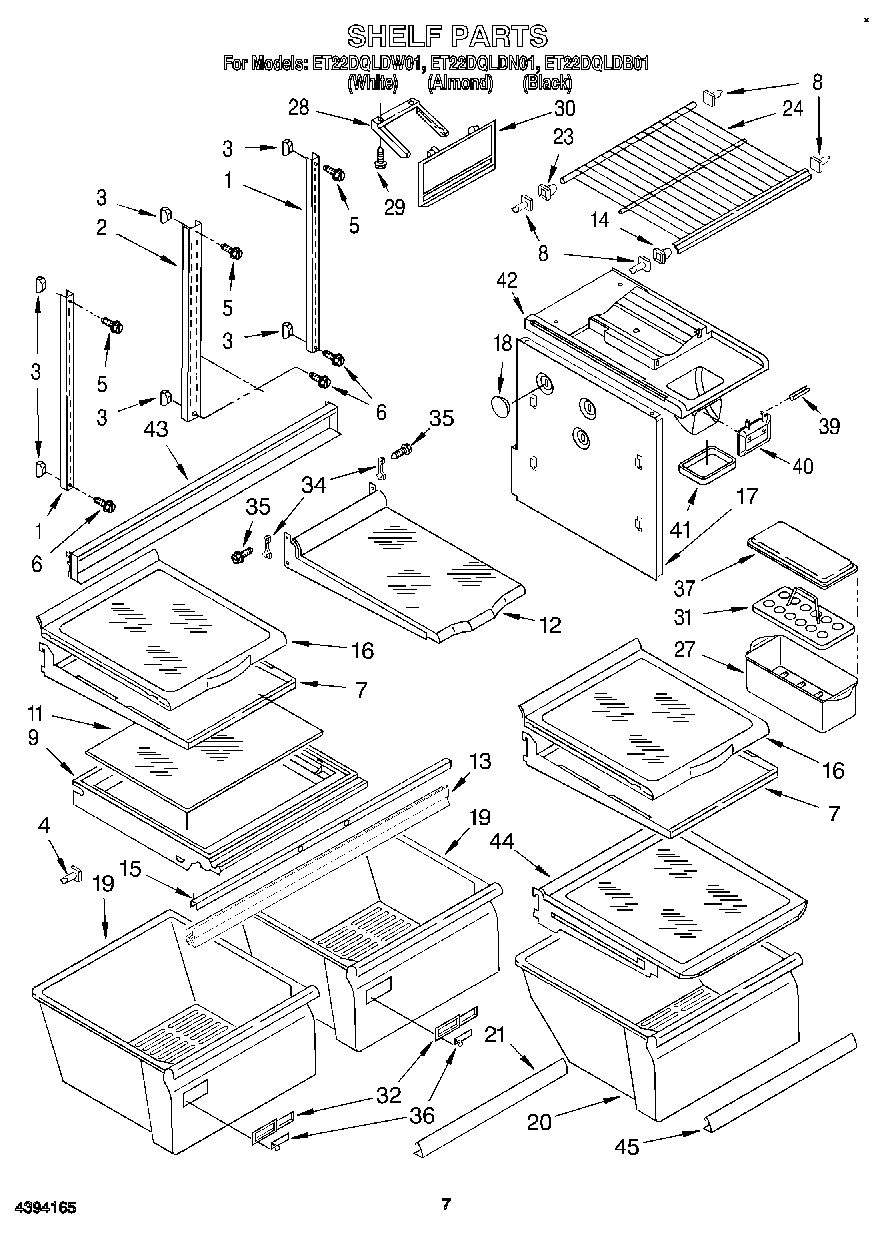

ET22DQLDB01 05 – SHELF, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2176903
	WPL LIT2182527
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	Torx Key
	Modular Icemaker Service Sheet
	WPL LIT2173971
	WPL LIT677971
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	W10854959 Whirlpool Refrigerator Shelf Stud
5	Screw (3)
6	WP489474 Whirlpool Refrigerator Screw
7	Frame Assembly, Cantilever (3)
8	Stud, Support
9	Crisper Cover
11	Glass, Crisper Cover
12	Shelf, Slide
13	Crisper Gasket, Front
14	Stud, Front R.S.
15	WP2172748 Whirlpool Drawer Support
16	Glass, Shelf
17	Support Wall I/M
18	Anchor-Screw I/M
19	Pan, Crisper
20	Pan, Meat
21	WP2179234 Whirlpool Refrigerator Pan Trim
23	819091 Whirlpool Refrigerator Shelf Stud
24	Shelf, Freezer (Top) (2)
27	W10136387A Whirlpool Refrigerator Egg Container
28	Slide, Ice Door
29	WP489478 Whirlpool Refrigerator Screw
30	2171712 Whirlpool Refrigerator Ice Door
31	WP2177817 Whirlpool Refrigerator Egg Container
32	WP2179343 Whirlpool Refrigerator Control Body
34	Hook, Shelf
35	Screw
36	WP2179342 Whirlpool Refrigerator Slide
37	Cover
39	Roll Pin
40	Door-Platform
41	Gasket-Platform
42	Platform-Ice Container
43	Slide, Track
44	Shelf, Meat Pan
45	72032 Whirlpool Touch Up Paint Black
45	285006 Whirlpool Spray
45	WP2179243 Whirlpool Refrigerator Pan Trim
45	350942 Whirlpool Spray Paint
45	Door Removal Instructions
45	WP72107 Whirlpool Touchup
45	799344 Whirlpool Refrigerator Paint
45	72017 Whirlpool Appliance Touch-Up Paint White
45	350956 Whirlpool Spray Assembly
45	350930 Whirlpool White Spray Paint
45	Almond (Uncut)
45	212643 Whirlpool Refrigerator Permagum Sealer
45	WPL 799833
45	CEMENT, ALUMILASTIC (1 1/4 OZ.)
45	TAPE, VINYL (3/4 X 108``)
45	WP542638 Whirlpool Refrigerator Grease
45	WP505587 Whirlpool Refrigerator Sealer
45	WP503695 Whirlpool Refrigerator Sealer
45	876370 Whirlpool Refrigerator Insulation
45	WPL 876029
45	606755 Whirlpool Refrigerator Bag
45	511873 Whirlpool Refrigerator Paint
45	833938 Whirlpool Refrigerator Terminal
