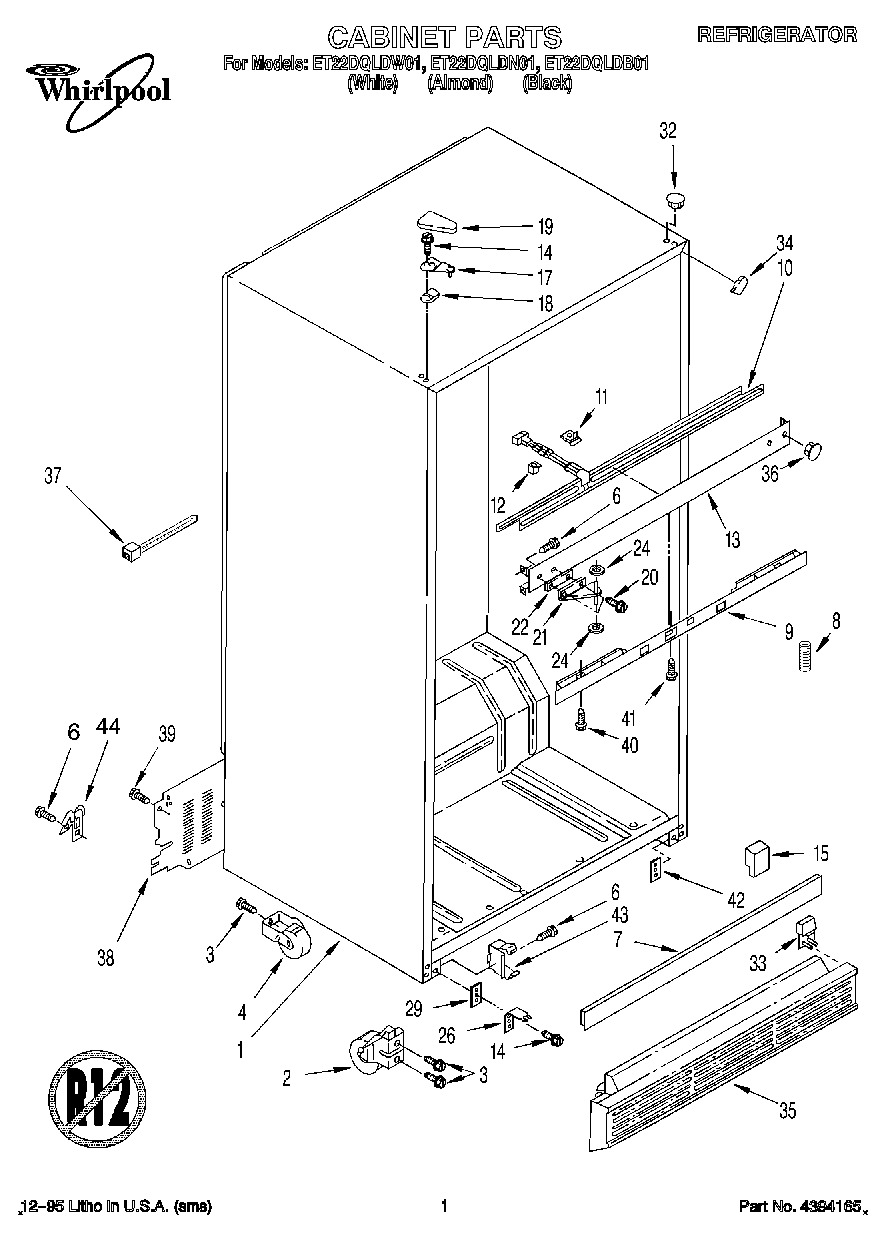

| 1 | Cabinet (Not A Serviceable Part) |
| 2 | Front Roller (2) |
| 3 | WP489427 Whirlpool Refrigerator Screw |
| 4 | WPW10250570 Whirlpool Refrigerator Cabinet Roller |
| 6 | WP489478 Whirlpool Refrigerator Screw |
| 7 | Deck Rail Cover |
| 8 | Spring-Tube |
| 9 | Control, Front Cover |
| 10 | Heater, Mullion |
| 11 | Clip, Center Rail (4) |
| 12 | Spacer (3) |
| 13 | Center Rail |
| 15 | Insert, Air Baffle |
| 17 | WP2189412 Whirlpool Refrigerator Door Hinge |
| 18 | Shim, Hinge Top |
| 19 | WP2213360 Whirlpool Refrigerator Cover |
| 19 | Cover, Hinge (Almond) |
| 19 | WP2213363 Whirlpool Refrigerator Cover |
| 20 | WP999367 Whirlpool Refrigerator Screw |
| 21 | Hinge, Center |
| 22 | Shim, Hinge Center |
| 24 | WP487802 Whirlpool Refrigerator Washer |
| 26 | Hinge Butt, Bottom |
| 29 | Spacer |
| 32 | WP2183998 Whirlpool Refrigerator Button Plug |
| 32 | WP2151652 Whirlpool Refrigerator Button Plug |
| 32 | Hole Plug (6) (Almond) |
| 33 | Corner Filler, Grille (Almond) |
| 33 | Corner Filler, Grille (White) |
| 33 | Corner Filler, Grille |
| 34 | Filler, Wrapper Corner (2) (Almond) |
| 34 | Filler, Wrapper Corner (2) (White) |
| 34 | Filler, Wrap Corner (Black) |
| 35 | Grille (Black) |
| 35 | Grille (Almond) |
| 35 | Grille (White) |
| 36 | Hole Plug (4) (White) |
| 37 | WPW10339879 Whirlpool Wire Tie |
| 38 | Cover, Unit |
| 40 | WP488163 Whirlpool Refrigerator Screw |
| 41 | WP489174 Whirlpool Refrigerator Screw |
| 42 | Tap-Plate, Bottom Hinge |
| 43 | WP2155013 Whirlpool Refrigerator Clip |
| 44 | 549193 Whirlpool Refrigerator Power Clamp |
