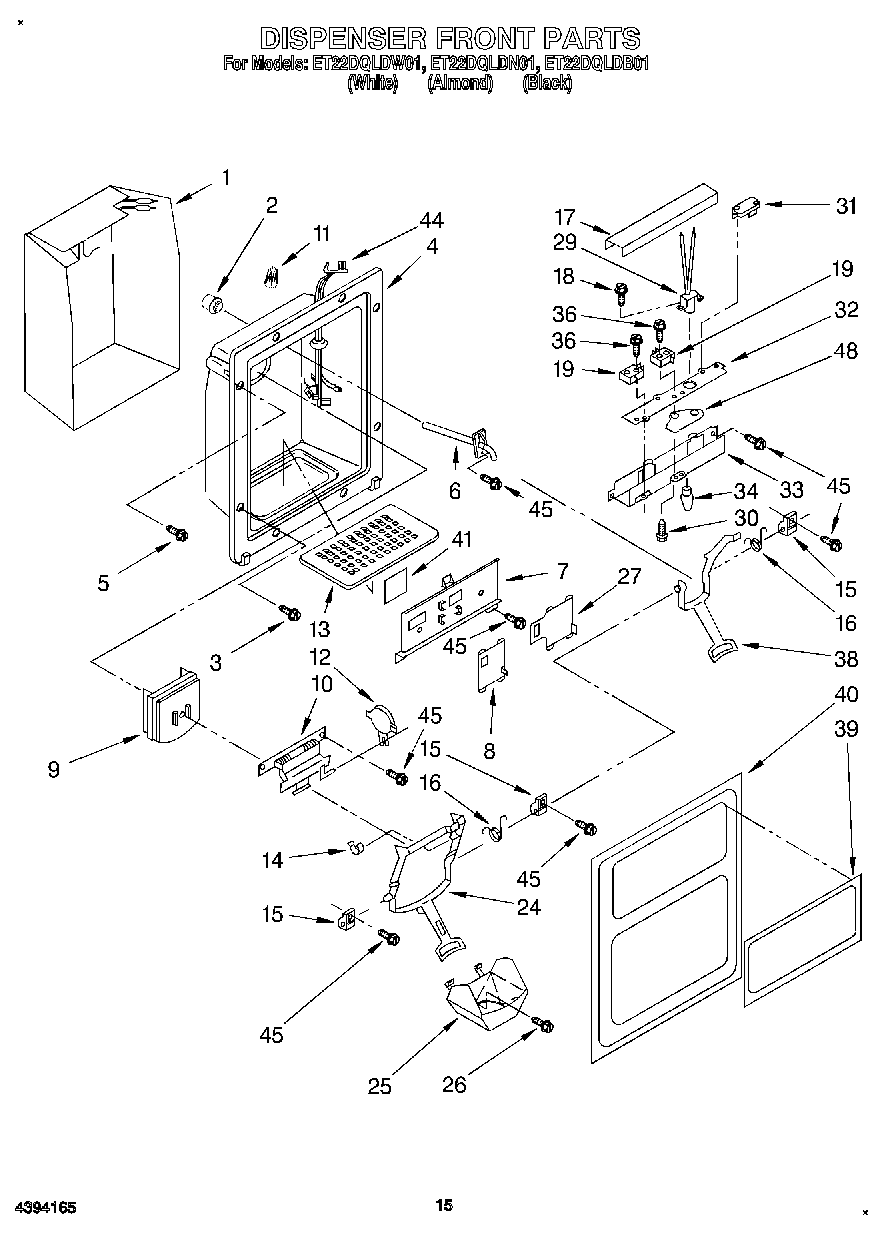

ET22DQLDN01 09 – DISPENSER FRONT

Products

Position	Product
1	Heater, Dispenser
2	Grommet
3	Screw, 8-18 x 3/4
4	Housing Dispenser (For Almond Model)
4	Housing, Dispenser
4	Housing, Dispenser
5	W11693756 Whirlpool Screw Assembly
6	WP4388152 Whirlpool Refrigerator Fitting
7	Frame, Slides
7	Frame, Slides
7	Frame, Slides (Almond)
8	Slide, Cube/Crush Switch
8	Slide, Cube/Crush Switch
8	Slide, Cube/Crush Switch (Almond)
9	Door, Ice
10	Door Mechanism Assembly (Includes Item 9)
11	Wire Connector
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow (White)
13	Grille, Overflow (Almond)
13	Grille, Overflow (Black)
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
18	WP489128 Whirlpool Refrigerator Screw
24	Lever Assembly, Ice Dispenser (Black)
24	Lever, Ice Dispenser (White)
24	Lever, Ice Dispenser (Almond)
25	Guide, Ice (Almond)
25	Guide, Ice
25	Guide, Ice
26	Screw
26	Screw
27	Slide, Light Switch
27	Slide, Light Switch (Almond)
27	Slide, Light Switch
29	Lamp Holder
30	Screw, 4-40 x 1
31	WP2162361 Whirlpool Switch
32	Insulator, Control Bracket
33	Bracket, Control
34	WP22002263 Whirlpool Dryer 10W Light Bulb
36	Screw,
38	Lever, Water Dispenser (White)
38	Lever, Water Dispenser (Almond)
38	Lever Assembly, Water Dispenser (Black)
39	Plaque, Front Cover (Almond)
39	Plaque, Front Cover
39	Plaque, Front Cover (White)
40	Front Cover, Housing (Almond (Includes Item 39))
40	Front Cover, Housing (White)
40	WPL 2174499
41	Heat Shield, Frame
44	Wiring Harness, Door
45	WP3400906 Whirlpool Refrigerator Screw
48	Spacer, Switch (2)
