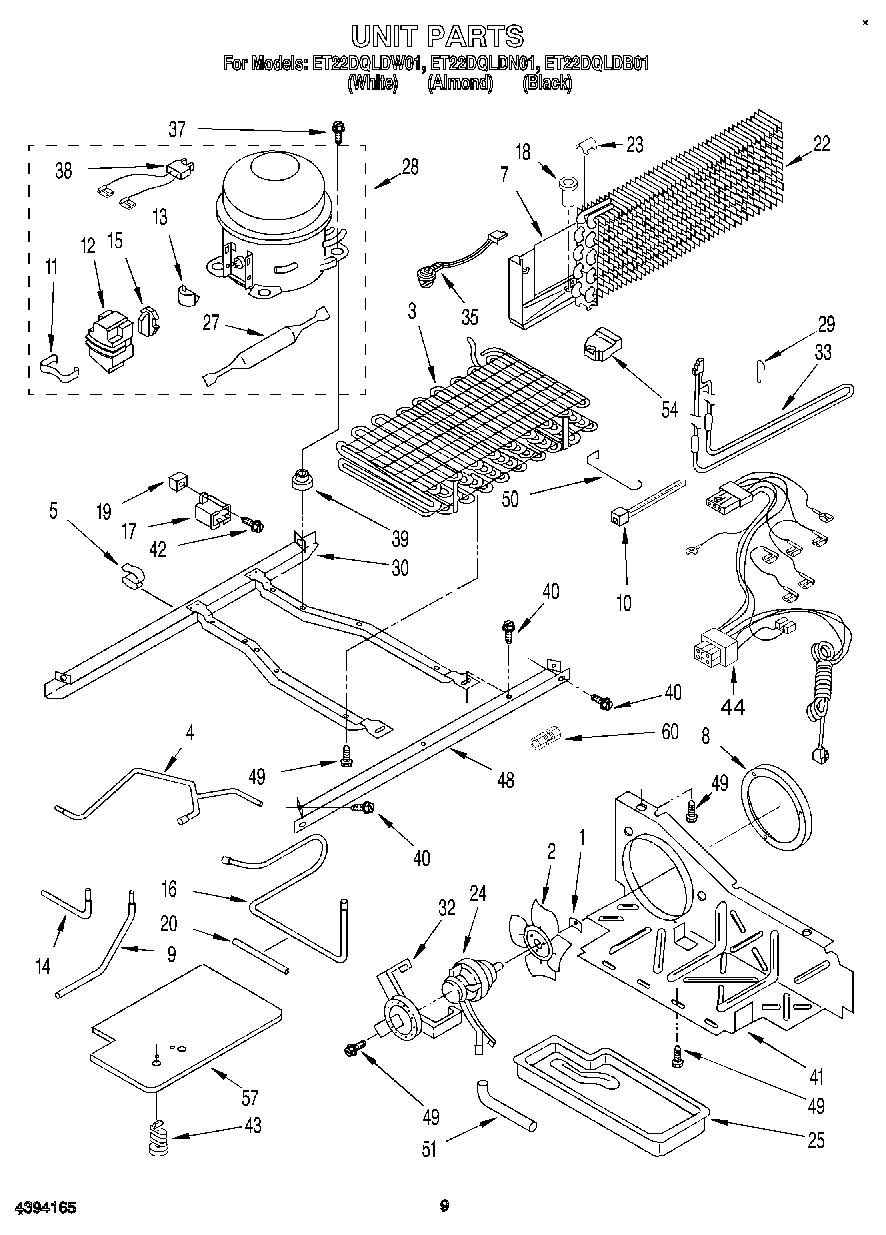

| 1 | WP486692 Whirlpool Refrigerator Nut |
| 2 | Fan, Blade |
| 3 | Condenser Assembly |
| 4 | Tube, Discharge |
| 5 | Clip, Wire |
| 7 | Drain Pan/ Heat Shield |
| 8 | Ring, Fan Mounting |
| 9 | Tube, Condenser To Heat Loop |
| 10 | WPW10339879 Whirlpool Wire Tie |
| 12 | WP2162358 Whirlpool Refrigerator Terminal Cover |
| 13 | OVERLOAD |
| 14 | 2154109 Whirlpool Refrigerator Tube |
| 15 | Relay (See Overload) |
| 16 | Tube, Suction |
| 17 | Capacitor |
| 18 | Drain Fitting |
| 19 | Screw Grommet |
| 20 | SLEEVE |
| 22 | Evaporator |
| 23 | 9791833 Whirlpool Refrigerator Clip |
| 24 | 833697 Whirlpool Condenser Fan Motor |
| 25 | Tray, Evaporator |
| 27 | W10843121 Whirlpool Refrigerator Tube |
| 28 | 876765 Whirlpool Primary Mounting Kit Refrigerator |
| 28 | W10309990 Whirlpool Refrigerator Compressor |
| 29 | Support, Heater |
| 30 | 2304903 Whirlpool Refrigerator Frame |
| 32 | Bracket, Motor |
| 33 | Heater, Defrost |
| 35 | WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat |
| 38 | Wire Assembly |
| 39 | 876811 Whirlpool Grommet |
| 41 | Air Baffle |
| 42 | W11693756 Whirlpool Screw Assembly |
| 43 | 489396 Whirlpool Refrigerator Clip |
| 44 | Wire Assembly |
| 48 | Unit Mounting Rail |
| 49 | WP489464 Whirlpool Refrigerator Screw |
| 50 | 1105612 Whirlpool Fan Guard |
| 51 | Drain Extension |
| 54 | Support-Evaporator (R.S.) |
| 54 | Support-Evaporator (L.S.) |
| 57 | Cover-Unit Btm. |
| 60 | VALVE, ACCESS (5/8``) |
| 60 | 978026 Whirlpool Refrigerator Primary Valve |
| 60 | 978027 Whirlpool Refrigerator Primary Valve |
| 60 | 978030 Whirlpool Refrigerator Valve |
| 60 | WP978025 Whirlpool Refrigerator Valve |
| 60 | VALVE, ACCESS (1/2``) |
| 60 | 876764 Whirlpool Refrigerator Primary Valve |
| 60 | WP4211117 Whirlpool Refrigerator Connector |
