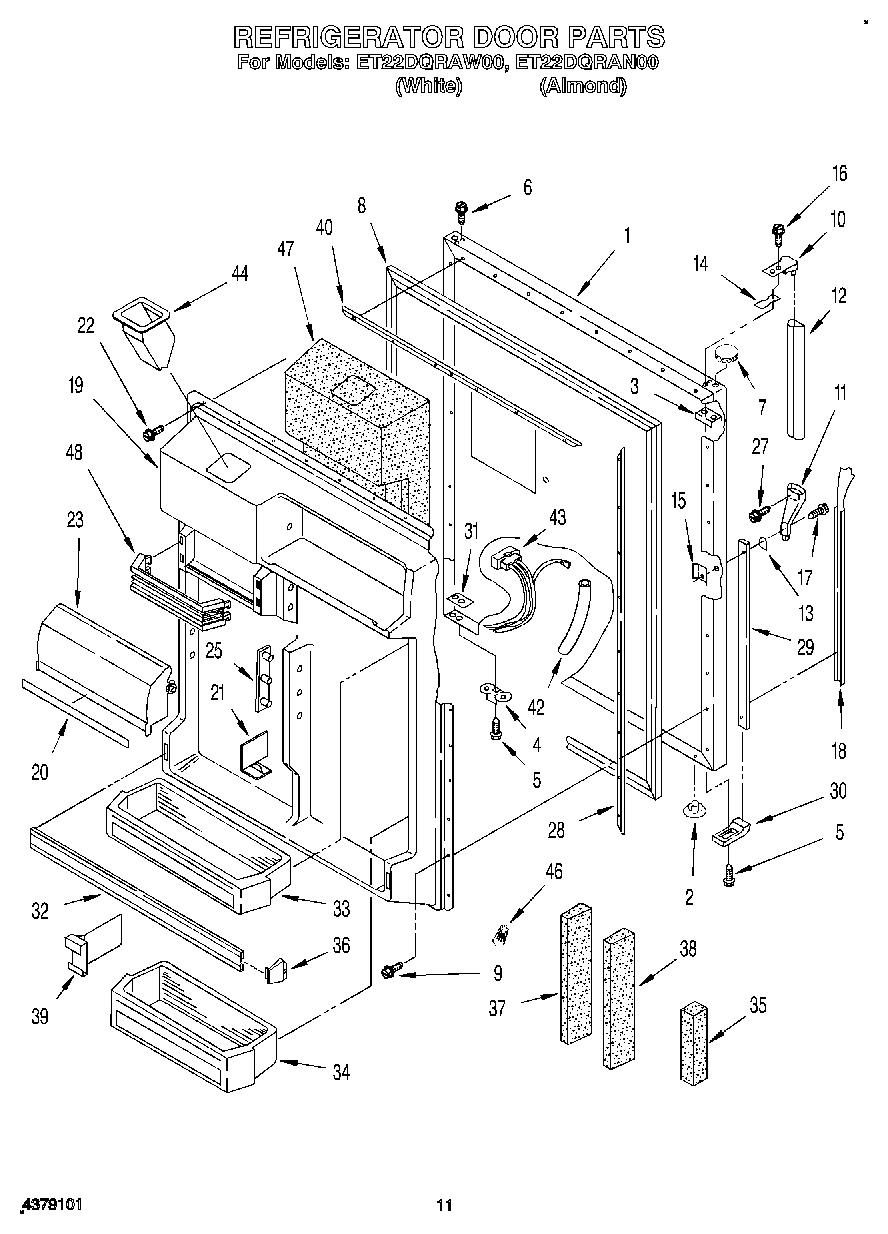

ET22DQRAN00 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Includes Insulation) (White)
1	Panel, Refrigerator Door (Includes Insulation) (Almond)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2188450A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	Handle End
11	Handle End, Side
12	Handle Center (Almond)
12	Handle, Center
13	Shim
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Insert, Handle (White)
18	Insert, Handle (Almond)
19	Interior Door Panel
20	Trim, Compartment Door
21	Divider-Door
23	Door, Compartment
25	Pin Plate (8)
25	Pin Plate (6)
27	Screw
28	Gasket, Retainer
29	Retainer, Insert
30	WPL 1105804
31	Connector-Wire
32	WPL 2148616
33	Shelf Bin (2)
34	WPL 2148550
35	Side Door Dike
36	4386917 Whirlpool Endcap Kit
37	Door Dike, Center
38	WPL 1122709
39	Divider (3)
40	Gasket Retainer, Top & Bottom
42	Tube-Door Wiring
43	Plug, Crossover
44	Ice Chute
46	Wire Connector
47	Insulation, Dispenser
48	Trim-Door Shel
