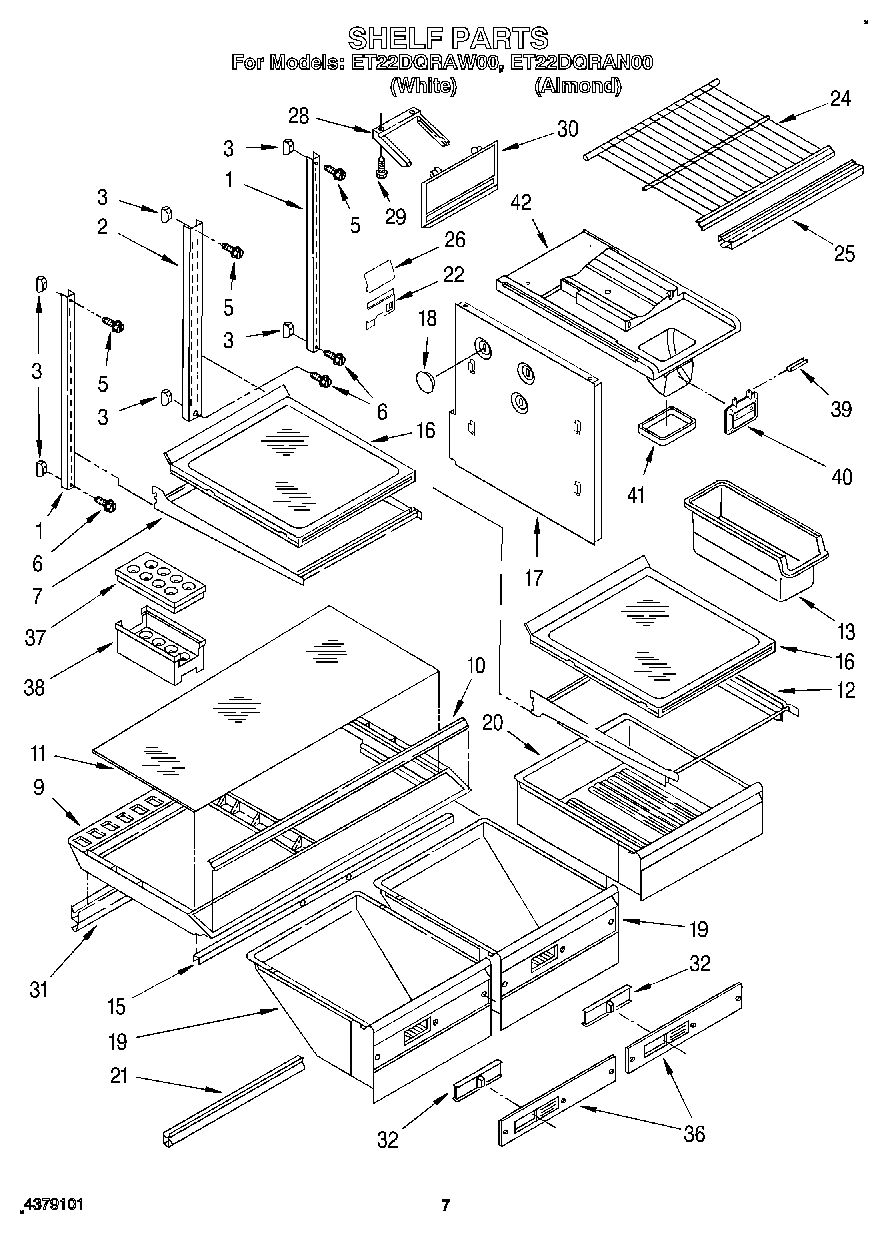

ET22DQRAW00 05 – SHELF, LIT/OPTIONAL

Products

Position	Product
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	WPL LIT2168563
	WPL LIT2168555
	WPL LIT2160736
	Modular Icemaker Service Sheet
	Torx Key
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever
9	WP2151749 Whirlpool Refrigerator Cover
10	Trim, Crisper Cover
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
13	WP982704 Whirlpool Refrigerator Container
15	WP2172748 Whirlpool Drawer Support
16	Shelf Assembly, Spillguard
17	Support Wall I/M
18	Anchor-Screw I/M
19	Pan, Crisper
20	Pan, Meat
21	Gasket-Front
22	Baffle-Air, I/M
24	Shelf, Freezer (Top) (2)
25	Trim, Shelf
26	Gasket, Baffle I/M
28	Slide, Ice Door
29	WP489478 Whirlpool Refrigerator Screw
30	2171712 Whirlpool Refrigerator Ice Door
31	Gasket, Rear
32	Slide, Crisper
36	Crisper Front
37	Egg Container, Top
38	Egg Container, Bottom
39	Roll Pin
40	Door-Platform
41	Gasket-Platform
42	TAPE, VINYL (3/4 X 108“)
42	285006 Whirlpool Spray
42	72032 Whirlpool Touch Up Paint Black
42	350930 Whirlpool White Spray Paint
42	Platform-Ice Container
42	Leveler (Thinner)
42	WP72107 Whirlpool Touchup
42	799344 Whirlpool Refrigerator Paint
42	72017 Whirlpool Appliance Touch-Up Paint White
42	350956 Whirlpool Spray Assembly
42	Almond (Uncut)
42	212643 Whirlpool Refrigerator Permagum Sealer
42	350942 Whirlpool Spray Paint
42	WP542638 Whirlpool Refrigerator Grease
42	WP505587 Whirlpool Refrigerator Sealer
42	WP503695 Whirlpool Refrigerator Sealer
42	CEMENT, ALUMILASTIC (1 1/4 OZ.)
42	WPL 799833
42	876370 Whirlpool Refrigerator Insulation
42	833938 Whirlpool Refrigerator Terminal
42	WPL 876029
42	511873 Whirlpool Refrigerator Paint
42	606755 Whirlpool Refrigerator Bag
