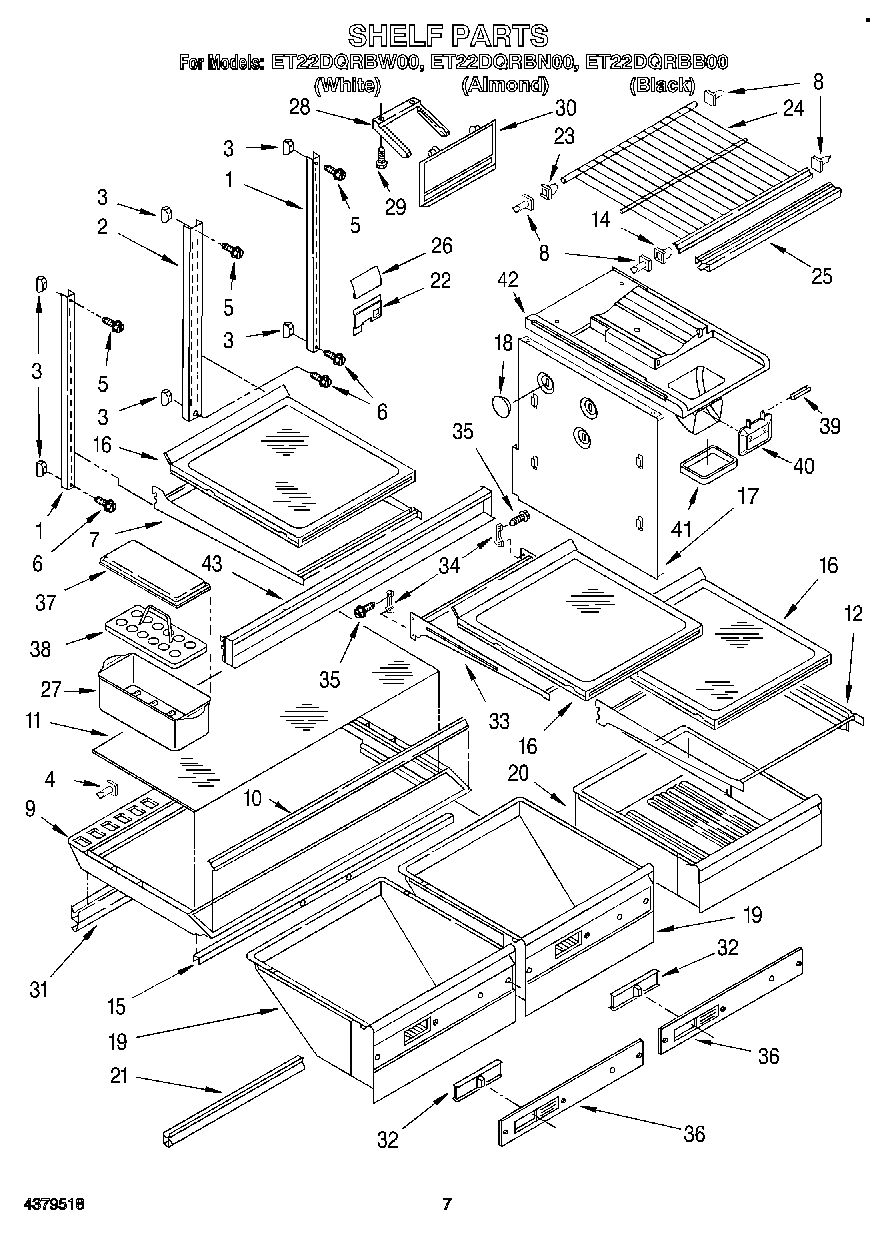

ET22DQRBN00 05 – SHELF, LIT/OPTIONAL

Products

Position	Product
	Torx Key
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	WPL LIT677971
	WPL LIT2169248
	WPL LIT2170501
	WPL LIT2170982
	Modular Icemaker Service Sheet
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	W10854959 Whirlpool Refrigerator Shelf Stud
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever
8	Stud, Support
9	WP2151749 Whirlpool Refrigerator Cover
10	Trim, Crisper Cover
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
14	Stud, Front R.S.
15	WP2172748 Whirlpool Drawer Support
16	Shelf Assembly, Spillguard
17	Support Wall I/M
18	Anchor-Screw I/M
19	Pan, Crisper
20	Pan, Meat
21	Gasket-Front
22	Baffle-Air, I/M
23	819091 Whirlpool Refrigerator Shelf Stud
24	Shelf, Freezer (Top) (2)
25	Trim, Shelf
26	Gasket, Baffle I/M
27	W10136387A Whirlpool Refrigerator Egg Container
28	Slide, Ice Door
29	WP489478 Whirlpool Refrigerator Screw
30	2171712 Whirlpool Refrigerator Ice Door
31	Gasket, Rear
32	Slide, Humidity Control
33	Shelf Assembly, Spillguard
34	Hook, Shelf
35	Screw
36	Crisper Front
37	Cover
38	WP2177817 Whirlpool Refrigerator Egg Container
39	Roll Pin
40	Door-Platform
41	Gasket-Platform
42	Platform-Ice Container
43	Door Removal Instructions
43	Almond (Uncut)
43	350930 Whirlpool White Spray Paint
43	WP72107 Whirlpool Touchup
43	799344 Whirlpool Refrigerator Paint
43	72017 Whirlpool Appliance Touch-Up Paint White
43	212643 Whirlpool Refrigerator Permagum Sealer
43	350956 Whirlpool Spray Assembly
43	350942 Whirlpool Spray Paint
43	511873 Whirlpool Refrigerator Paint
43	606755 Whirlpool Refrigerator Bag
43	WPL 876029
43	WPL 799833
43	CEMENT, ALUMILASTIC (1 1/4 OZ.)
43	TAPE, VINYL (3/4 X 108“)
43	WP542638 Whirlpool Refrigerator Grease
43	WP505587 Whirlpool Refrigerator Sealer
43	WP503695 Whirlpool Refrigerator Sealer
43	876370 Whirlpool Refrigerator Insulation
43	72032 Whirlpool Touch Up Paint Black
43	Slide, Track
43	833938 Whirlpool Refrigerator Terminal
43	285006 Whirlpool Spray
