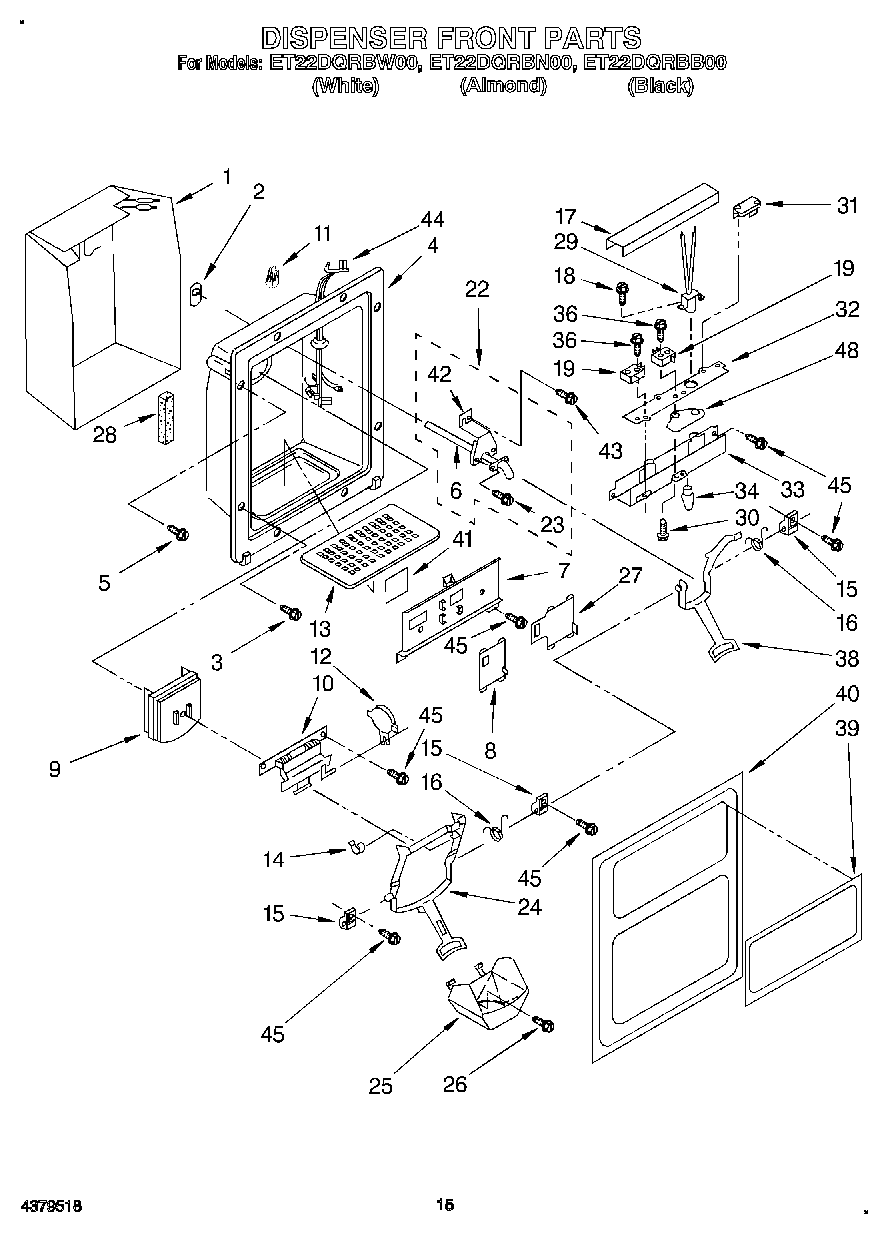

ET22DQRBN00 09 – DISPENSER FRONT

Products

PositionProduct
1Heater, Dispenser
2Grommet
3WP488729 Whirlpool Refrigerator Door Screw
4Housing, Dispenser
4Housing Dispenser (For Almond Model)
4Housing, Dispenser
5W11693756 Whirlpool Screw Assembly
6Tube, Water (Not a Serviceable Part)
7Frame, Slides
7Frame, Slides
7Frame, Slides (Almond)
8Slide, Cube/Crush Switch
8Slide, Cube/Crush Switch
8Slide, Cube/Crush Switch (Almond)
9Door, Ice
10Door Mechanism Assembly (Includes Item 9)
11Wire Connector
12WP1120581 Whirlpool Refrigerator Mechanism
13Grille, Overflow (Almond)
13Grille, Overflow (Black)
13Grille, Overflow (White)
14Clip, Bearing (2)
15Bearing, Lever (3)
16Spring, Lever (2)
17Shield, Wiring
18WP489128 Whirlpool Refrigerator Screw
22WP4388152 Whirlpool Refrigerator Fitting
23WP965173 Whirlpool Dishwasher Screw
24Lever Assembly, Ice Dispenser
24Lever Assembly, Ice Dispenser
24Lever Assembly, Ice Dispenser (Almond)
25Guide, Ice (Almond)
25Guide, Ice
25Guide, Ice
26Screw
26Screw
27Slide, Light Switch (Almond)
27Slide, Light Switch
27Slide, Light Switch
28Seal
29Lamp Holder
30Screw, 4-40 x 1
31WP2162361 Whirlpool Switch
32Insulator, Control Bracket
33Bracket, Control
34WP22002263 Whirlpool Dryer 10W Light Bulb
36Screw,
38WPL 2159197
38Lever Assembly, Water Disp
38WPL 2159198
39Plaque, Front Cover
39Plaque, Front Cover (Almond)
39Plaque, Front Cover (White)
40WPL 2148705
40Front Cover, Housing (Almond (Includes Item 39))
40Front Cover, Housing (White)
41Heat Shield, Frame
42Bracket, Water
43Screw, 8-18 x 3/4
44Wiring Harness, Door
45WP3400906 Whirlpool Refrigerator Screw
48Spacer, Switch (2)
