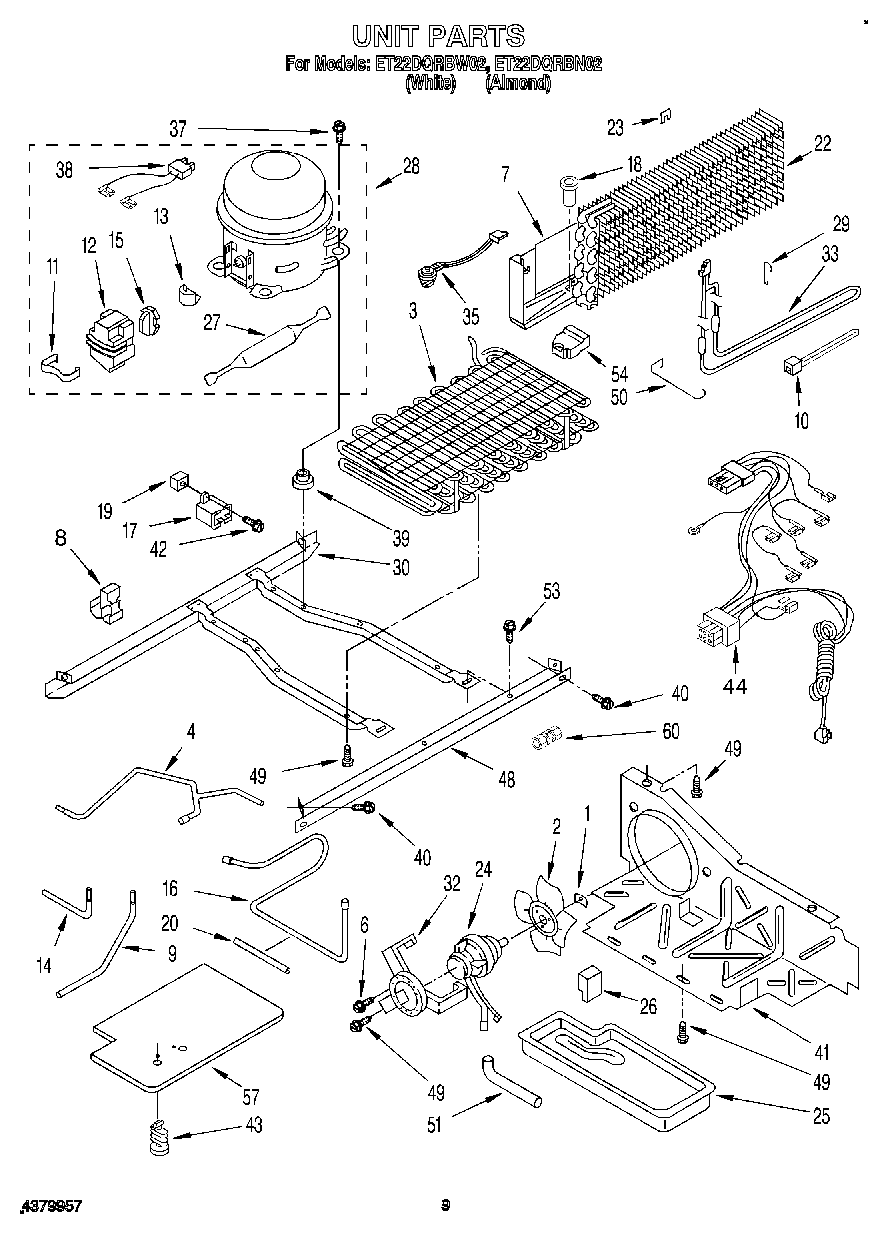

ET22DQRBW02 06 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Blade, Fan
3	Condenser Assembly
4	Tube, Discharge
6	681390 Whirlpool Refrigerator Screw
7	Drain Pan/ Heat Shield
8	Clip, Wire
9	Tube, Condenser To Heat Loop
10	WPW10339879 Whirlpool Wire Tie
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	OVERLOAD
14	2154109 Whirlpool Refrigerator Tube
15	Relay (See Overload)
16	Tube, Suction
17	Running Capacitor (Service)
18	Drain Fitting
19	Screw Grommet
20	SLEEVE
22	Evaporator
23	9791833 Whirlpool Refrigerator Clip
24	833697 Whirlpool Condenser Fan Motor
25	Tray, Evaporator
26	Insert, Air Baffle
27	W10843121 Whirlpool Refrigerator Tube
28	W10309990 Whirlpool Refrigerator Compressor
28	876765 Whirlpool Primary Mounting Kit Refrigerator
29	Support, Heater
30	2304903 Whirlpool Refrigerator Frame
32	Bracket, Motor
33	Heater, Defrost
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
38	WP2172890 Whirlpool Refrigerator Wire
39	876811 Whirlpool Grommet
41	Air Baffle
42	W11693756 Whirlpool Screw Assembly
43	489396 Whirlpool Refrigerator Clip
44	Wire Assembly
48	Unit Mounting Rail
49	WP489464 Whirlpool Refrigerator Screw
50	1105612 Whirlpool Fan Guard
51	Drain Extension
53	WP489427 Whirlpool Refrigerator Screw
54	Support-Evaporator (L.S.)
54	Support-Evaporator (R.S.)
57	Cover-Unit Btm.
60	VALVE, ACCESS (5/8“)
60	WP4211117 Whirlpool Refrigerator Connector
60	876764 Whirlpool Refrigerator Primary Valve
60	VALVE, ACCESS (1/2“)
60	WP978025 Whirlpool Refrigerator Valve
60	978026 Whirlpool Refrigerator Primary Valve
60	978030 Whirlpool Refrigerator Valve
60	978027 Whirlpool Refrigerator Primary Valve
