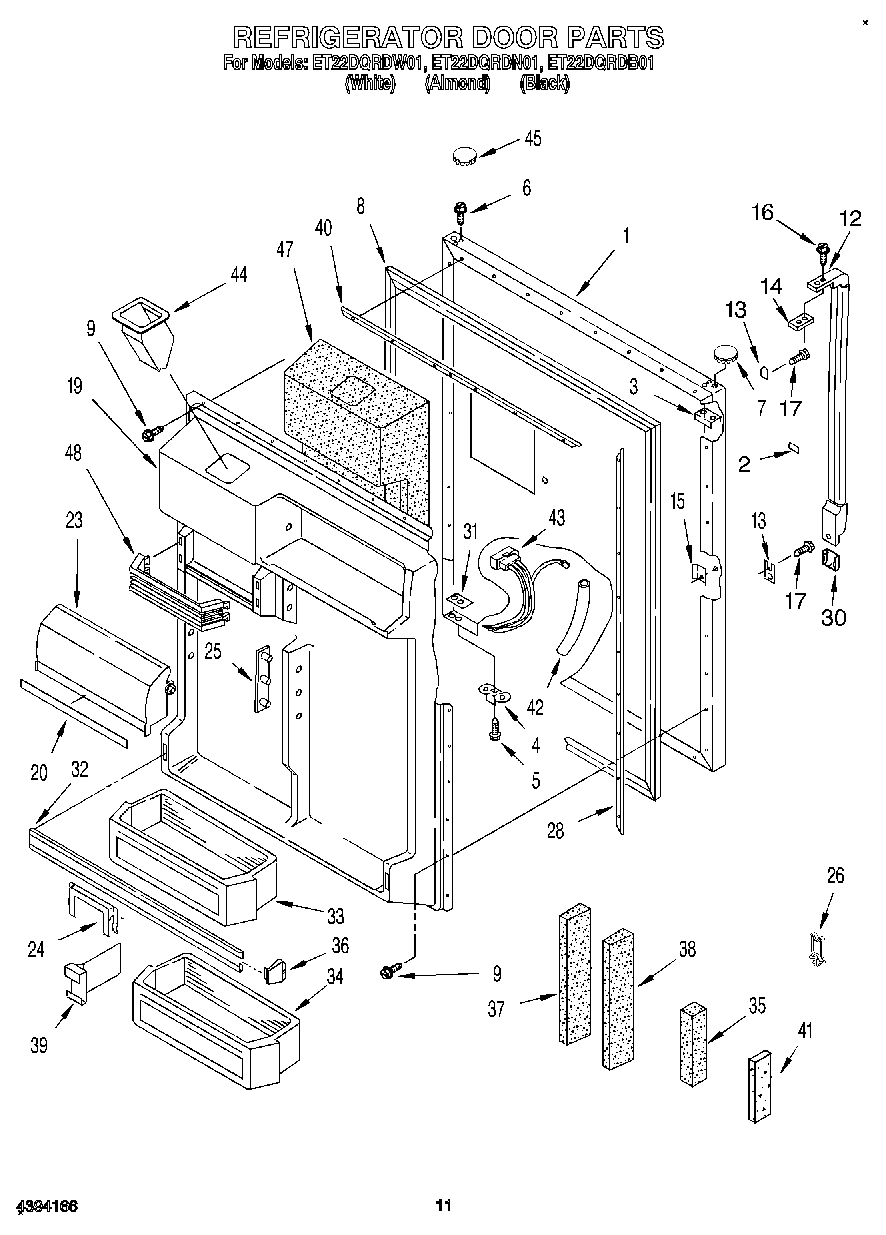

ET22DQRDN01 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Includes Insulation) (White)
1	Panel, Refrigerator Door (Includes Insulation) (Almond)
1	Panel, Refrigerator Door (Includes Insulation) (Black)
2	Shim
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212651 Whirlpool Refrigerator Button Plug
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2188450A Whirlpool Refrigerator Door Gasket
9	WP489442 Whirlpool Refrigerator Screw
12	Handle (Black)
12	Handle (White)
12	Handle (Almond)
13	Shim, Handle
14	Shim, Bottom
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
19	Interior Door Panel
20	Trim, Compartment Door
23	Door, Compartment
24	Retainer, Bottle
25	Pin Plate (6)
25	Pin Plate (8)
26	Clip
28	Gasket, Retainer
30	Cover, Endcap (White)
30	Cover, End Cap (Almond)
30	Cover, Endcap (Black)
31	Tap, Plate
32	Trim, Door Shelf
33	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
34	Bin, Door Shelf
35	Side Door Dike
36	4386917 Whirlpool Endcap Kit
37	Door Dike, Center
38	WPL 1122709
39	WPL 2171284
40	Gasket Retainer, Top & Bottom
41	Support, Pin Plate
42	Tube-Door Wiring
43	Plug, Crossover
44	Ice Chute
45	WP2189009 Whirlpool Refrigerator Handle Plug
45	WP2189000 Whirlpool Refrigerator Handle Plug
45	Hole Plug, Handle (Almond)
47	Insulation, Dispenser
48	Trim, Door Shelf (4)
