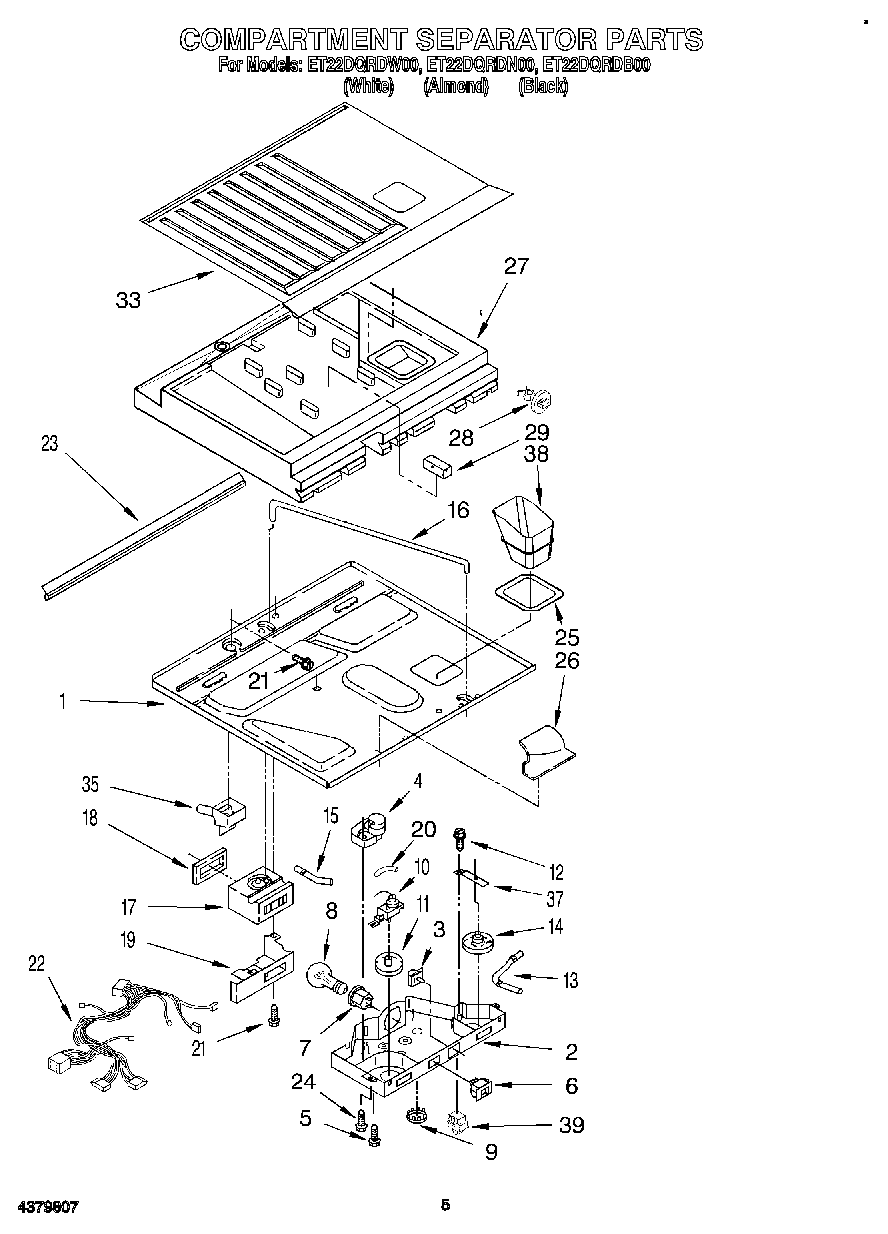

ET22DQRDW00 03 – COMPARTMENT SEPARATOR

Products

Position	Product
1	Bottom, Compartment Separator
2	Box, Control
3	WP2149705 Whirlpool Refrigerator Door Switch
4	WP2183400 Whirlpool Defrost Timer
5	WP487353 Whirlpool Refrigerator Screw
6	WP938213 Whirlpool Refrigerator Power Switch
7	SOCKET
8	W10887190 Whirlpool Refrigerator Light Bulb
9	940014 Whirlpool Refrigerator Primary Button Plug
10	1123394 Whirlpool Cold Control Thermostat
11	Knob, Thermostat
12	WP965173 Whirlpool Dishwasher Screw
13	Light, Bar
14	Knob, Air Control
15	Light, Bar
16	Rod, Connecting
17	Air Diffuser Assembly
18	Gasket, Air Diffuser
19	Cover, Air Diffuser
20	WP2196003 Whirlpool Refrigerator Bar Riser
21	WP489478 Whirlpool Refrigerator Screw
22	Wiring Assembly, Control Box
23	Gasket, Bottom Separator
24	WP250830 Whirlpool Refrigerator Screw
25	Gasket, Ice Chute
26	Insulation, Filler
27	Insulation, Compartment Separator
28	Clip, Thermostat Tube Retention
29	Rubber Strip
33	Separator, Compartment (Top)
35	Cup, Drain
37	Bracket, Control Knob
38	Ice Chute, (Seperator)
39	WP4387911 Whirlpool Refrigerator Switch
