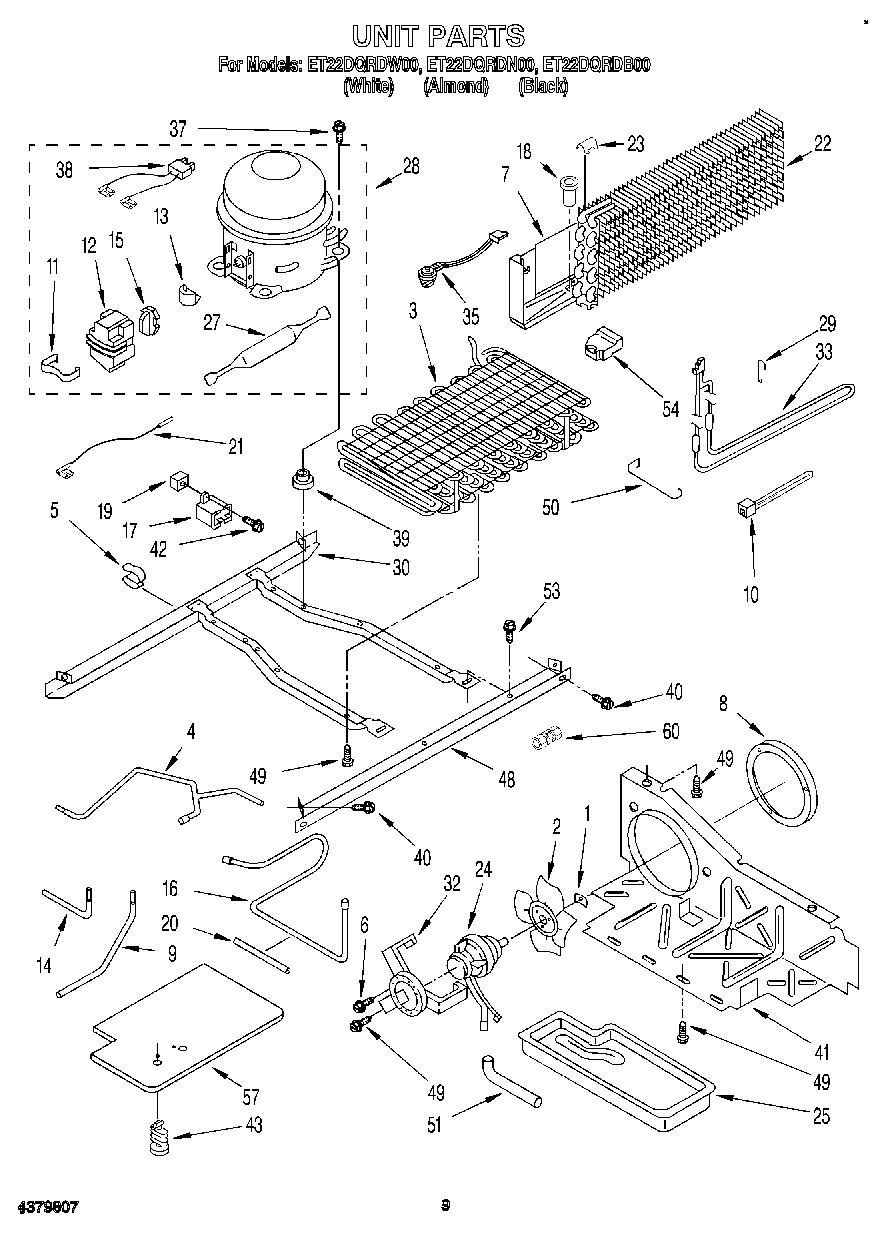

ET22DQRDW00 06 – UNIT

ET22DQRDW00 06 – UNIT

Written by

in

ET22DQRDW00 06 – UNIT

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Blade, Fan
3Condenser Assembly
4Tube, Discharge
5Clip, Wire (2)
6681390 Whirlpool Refrigerator Screw
7Drain Pan/ Heat Shield
8Ring, Fan Mounting
9Tube, Condenser To Heat Loop
10WPW10339879 Whirlpool Wire Tie
12WP2162358 Whirlpool Refrigerator Terminal Cover
13OVERLOAD
142154109 Whirlpool Refrigerator Tube
15Relay (See Overload)
16Tube, Suction
17Capacitor
18Drain Fitting
19Screw Grommet
20SLEEVE
21Wire, Assembly Overload
22Evaporator
239791833 Whirlpool Refrigerator Clip
24833697 Whirlpool Condenser Fan Motor
25Tray, Evaporator
27W10843121 Whirlpool Refrigerator Tube
28876765 Whirlpool Primary Mounting Kit Refrigerator
28W10309990 Whirlpool Refrigerator Compressor
29Support, Heater
302304903 Whirlpool Refrigerator Frame
32Fan, Motor Bracket
33Heater, Defrost
35WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
38WP2172890 Whirlpool Refrigerator Wire
39876811 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41Air Baffle
42W11693756 Whirlpool Screw Assembly
43489396 Whirlpool Refrigerator Clip
48Unit Mounting Rail
49WP489464 Whirlpool Refrigerator Screw
501105612 Whirlpool Fan Guard
51Drain Extension
53WP489427 Whirlpool Refrigerator Screw
54Support-Evaporator (L.S.)
54Support-Evaporator (R.S.)
57Cover-Unit Btm.
60VALVE, ACCESS (1/2“)
60876764 Whirlpool Refrigerator Primary Valve
60978026 Whirlpool Refrigerator Primary Valve
60WP4211117 Whirlpool Refrigerator Connector
60978027 Whirlpool Refrigerator Primary Valve
60WP978025 Whirlpool Refrigerator Valve
60VALVE, ACCESS (5/8“)
60978030 Whirlpool Refrigerator Valve
