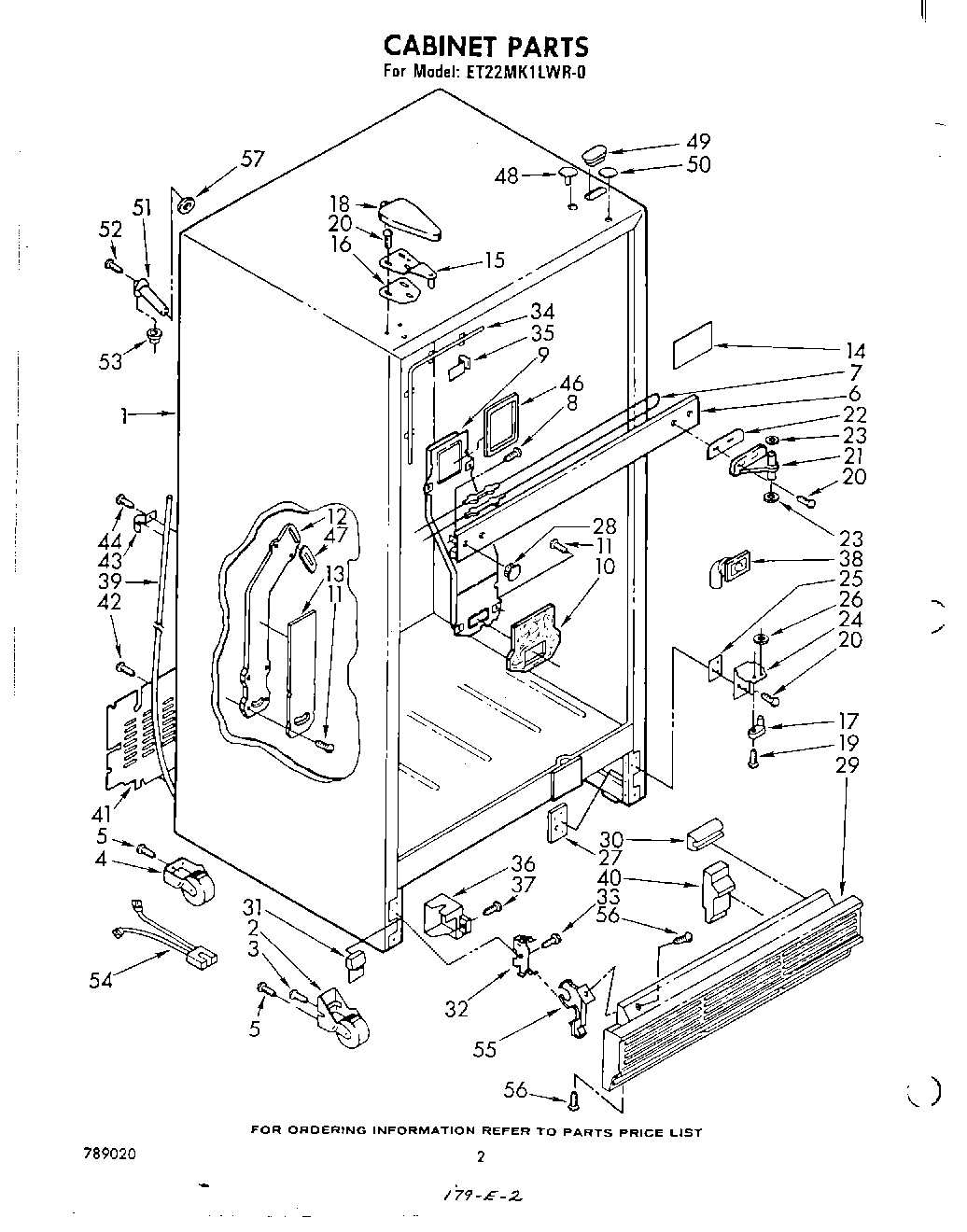

ET22MK1LWR0 02 – CABINET

ET22MK1LWR0 02 – CABINET

Written by

in

ET22MK1LWR0 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw, 5/16-24 x 1
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	Center Rail (New Avocado)
6	Center Rail (Almond)
6	Center Rail (Golden Harvest)
6	Center Rail (Coffee)
6	Center Rail (White)
6	WPL 1100304
6	WPL 1100303
7	Heater, Mullion
8	Screw (Repair)
8	Screw, 8 x 3/8
9	Air Duct
10	Spacer, Outlet Air Duct
12	Air Duct, Meat Pan
13	Spacer, Meat Pan Outlet
14	Seal, Strip
15	Hinge, Top
16	Shim, Hinge
17	Hinge Pin, Bottom
18	1119787 Whirlpool Refrigerator Hinge Cover
18	Hinge Cover (Golden Harvest)
18	Hinge Cover (New Avocado)
18	Hinge, Cover (Coffee)
18	Hinge Cover (Toast)
19	Screw 10-32 x 5/16
20	WP999367 Whirlpool Refrigerator Screw
20	Screw (Repair)
21	Hinge, Center
22	Shim, Hinge Center
23	WP488296 Whirlpool Washer Refrigerator
24	Hinge, Bottom
25	Shim, Bottom Hinge
26	WP487802 Whirlpool Refrigerator Washer
27	Tap Plate
28	Hole, Plug (Almond)
28	Plug, Hole (2) (Toast)
28	Hole Plug (Coffee)
28	Hole Plug (Golden Harvest)
28	Hole Plug (New Avocado)
28	Hole Plug (2) (Platinum)
28	Hole, Plug (White)
29	Exterior, Grille (Toast)
29	Exterior, Grille (Platinum)
29	Exterior, Grille (Almond)
29	Exterior Grille (New Avocado)
29	Exterior, Grille (White)
29	Exterior, Grille (Golden Harvest)
29	Exterior, Grille (Coffee)
30	Bumper, Grille
31	Filler, Grille (Toast)
31	Filler, Grille (Platinum)
31	WPL 989929
31	WPL 989930
31	WPL 989928
31	Corner, Filler (
31	WPL 989931
32	WPL 989068
33	W11624204 Whirlpool Screw
34	Heater, Stile
35	WPL 935663
36	WPL 549947
37	WP488729 Whirlpool Refrigerator Door Screw
38	WPL 841687
39	8316810 Whirlpool Refrigerator Drain Tube
40	WPL 836372
41	WPL 850459
43	WPL 836077
44	WP489069 Whirlpool Compactor Screw
46	Air Duct, Seal
47	WPL 945046
48	Hole, Plug (White)
48	Hole, Plug (Platinum)
48	Hole Plug (Coffee)
48	Hole Plug (Almond)
48	Hole Plug (New Avocado)
48	Hole, Plug (Golden Harvest)
48	Hole, Plug (Toast)
49	Hole Plug (Platinum)
49	Hole Plug (Coffee)
49	Hole Plug (New Avocado)
49	Hole Plug (Golden Harvest)
49	Hole Plug (Almond)
49	Hole Plug (Toast)
49	Hole Plug (White)
50	Hole Plug (3) (Platinum)
50	Hole Plug (New Avocado)
50	Hole Plug (2) (Golden Harvest)
50	Hole Plug (2) (Almond)
50	Hole Plug (Coffee)
50	Hole Plug (3) (Toast)
50	Hole Plug (2) (White)
51	WP2196157 Whirlpool Fill Tube
52	WP98165 Whirlpool Screw
53	WP487996 Whirlpool Refrigerator Cap Tube
54	WPL 548734
55	WP944224 Whirlpool Refrigerator Support
56	WPL 489085
57	WP1106508 Whirlpool Refrigerator Gasket
