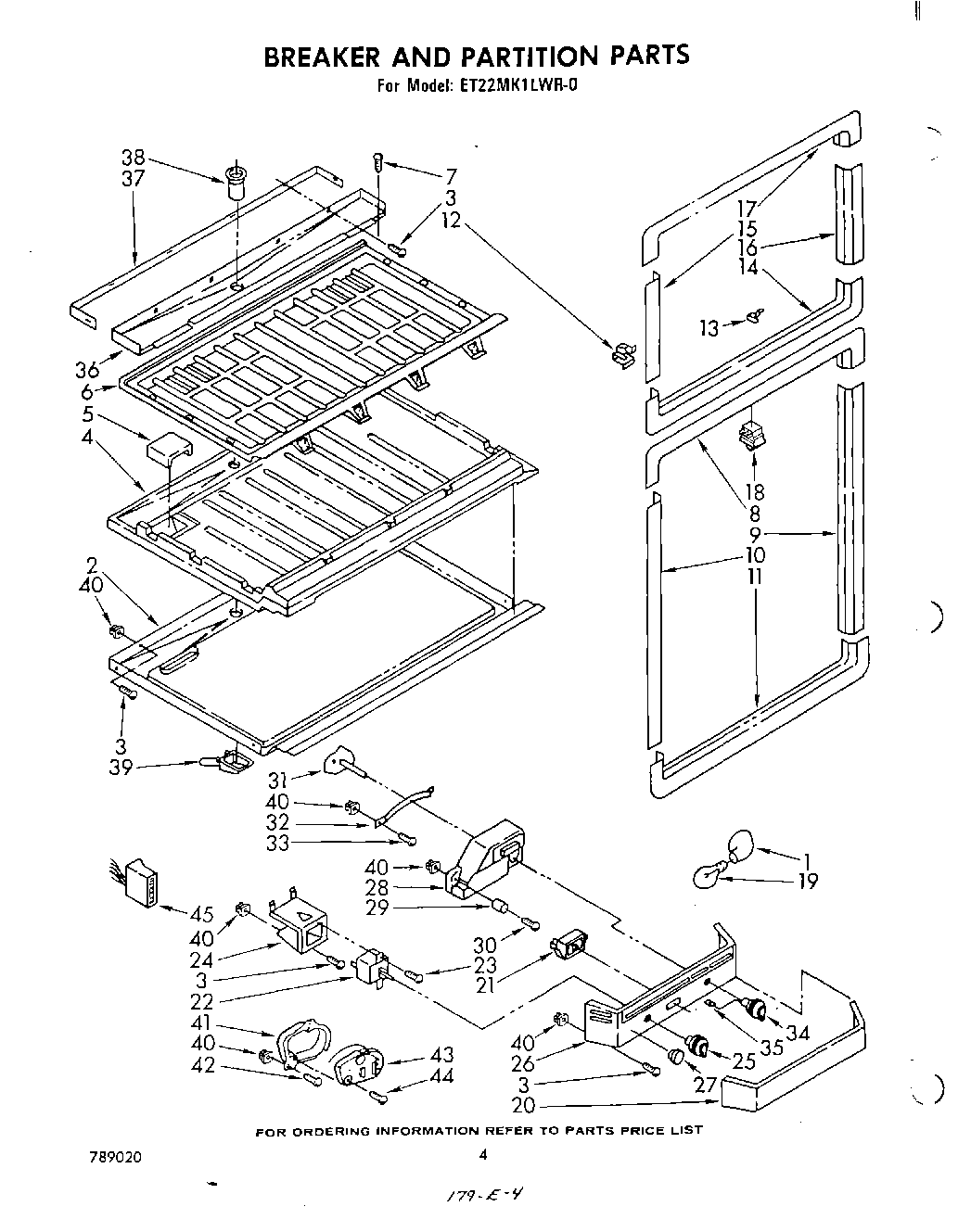

ET22MK1LWR0 03 – BREAKER AND PARTITION

Products

Position	Product
1	4387478 Whirlpool Refrigerator Light Socket
2	Bottom, Compartment Separator
3	W11624204 Whirlpool Screw
4	Insulation, Separator
5	Insulation, Air Return
6	Top, Compartment Separator
7	WP488729 Whirlpool Refrigerator Door Screw
8	Breaker, Mullion Bottom
9	Breaker Trim (R.S.)
10	Breaker Trim (L.S.)
11	Breaker Trim, Bottom
12	Clip, Breaker Retainer (2)
13	Breaker, Trim Clip
14	Breaker Trim, Top
15	Breaker Trim (L.S.) Freezer
16	Breaker Trim (R.S.) Freezer
17	Breaker Trim, Top
18	W11384469 Whirlpool Door Switch
19	RANGE ONLY 40W 120V APPL BULB
20	Light Lens
21	WP938213 Whirlpool Refrigerator Power Switch
22	WP819470 Whirlpool Refrigerator Thermostat
23	WP965173 Whirlpool Dishwasher Screw
24	Bracket, Thermostat
25	Knob, Temperature Control
26	Panel, Control
27	Hole Plug (2)
28	Air Diffuser
29	836667 Whirlpool Refrigerator Spacer
30	Screw, 8 x 1-1/4 (3)
31	Damper, Air
32	Retrainer, Air Dampener
33	Screw, 8 x 3/8
34	Control Knob
35	Knob, Retainer
36	Drain Pan
37	Gasket, Drain Pan
38	Fitting, Drain Pan
39	Cup, Drain
40	Grommet
41	Timer, Container
42	WP489069 Whirlpool Compactor Screw
43	Timer, Defrost
44	Screw, 8 x 3/8 (2)
45	Liner Wiring (Defrost Timer)
