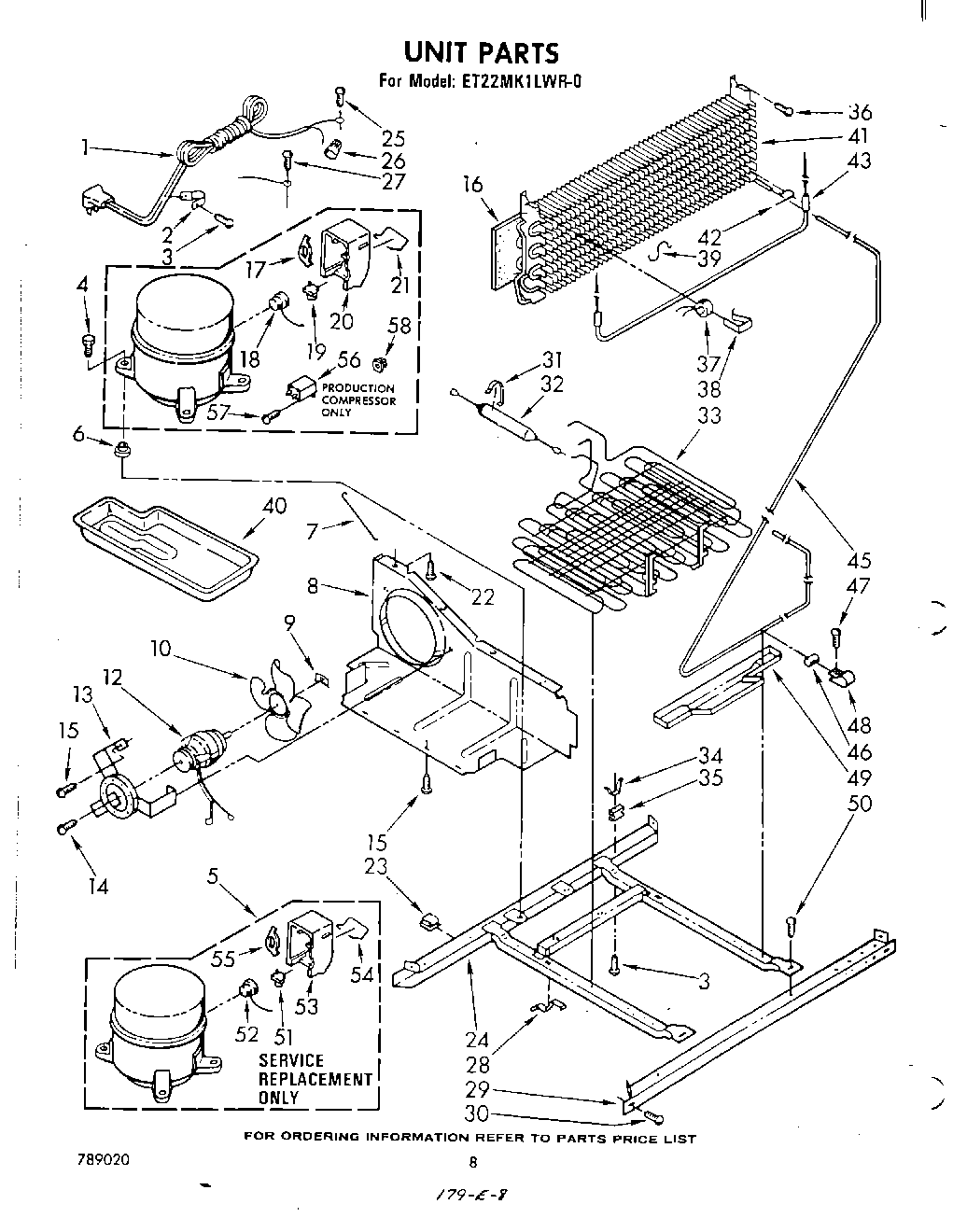

ET22MK1LWR0 05 – UNIT

Products

Position	Product
1	Cord, Service
2	549193 Whirlpool Refrigerator Power Clamp
3	W11624204 Whirlpool Screw
5	Compressor Kit (Includes, Items 72, 73, 74, 75 & 76) (Also Order 876765 Tube Kit)
6	876811 Whirlpool Grommet
7	Guard, Fan
8	Baffle, Air
9	WP486692 Whirlpool Refrigerator Nut
10	Fan, Blade
12	833697 Whirlpool Condenser Fan Motor
13	Bracket, Motor
14	Screw, 8-36 x 3/8 (3)
15	Screw, 8 x 3/8
16	Baffle, Air
17	Overload Spring
18	Overload
19	Relay
20	Case, Relay
21	Spring, Case
22	Screw, 8-15 x 3/8
23	Clip, Wire (2)
24	Frame
25	Screw, 8-32 x 3/8
26	Wire Connector
27	303776 Whirlpool Dishwasher Screw
28	Clip (2)
29	Rail, Front
30	489340 Whirlpool Refrigerator Screw
31	Clamp
32	W10843121 Whirlpool Refrigerator Tube
33	Condenser & Precooler Assembly
34	Clamp (4)
35	Grommet (4)
37	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
38	Clamp
39	Support, Heater
40	Tray, Evaporator
41	Evaporator
42	Clip, Heater (2)
43	Heater, Defrost
45	Exchanger, Heat
46	Dampener (2)
47	WPW10141625 Whirlpool Refrigerator Screw Assembly
48	Clamp Tube
49	Pan, Drip
50	Screw, 1/4-28 x 1/2 (2)
51	Relay
52	Overlo
53	WPL 549505
54	Cover, Spring
55	Spring, Overload
56	Running Capacitor (Use With Production Compressor Only)
57	W11693756 Whirlpool Screw Assembly
58	VALVE, ACCESS (1/2“)
58	Screw Grommet
58	978030 Whirlpool Refrigerator Valve
58	978027 Whirlpool Refrigerator Primary Valve
58	978026 Whirlpool Refrigerator Primary Valve
58	876764 Whirlpool Refrigerator Primary Valve
58	VALVE, ACCESS (5/8“)
58	WP978025 Whirlpool Refrigerator Valve
