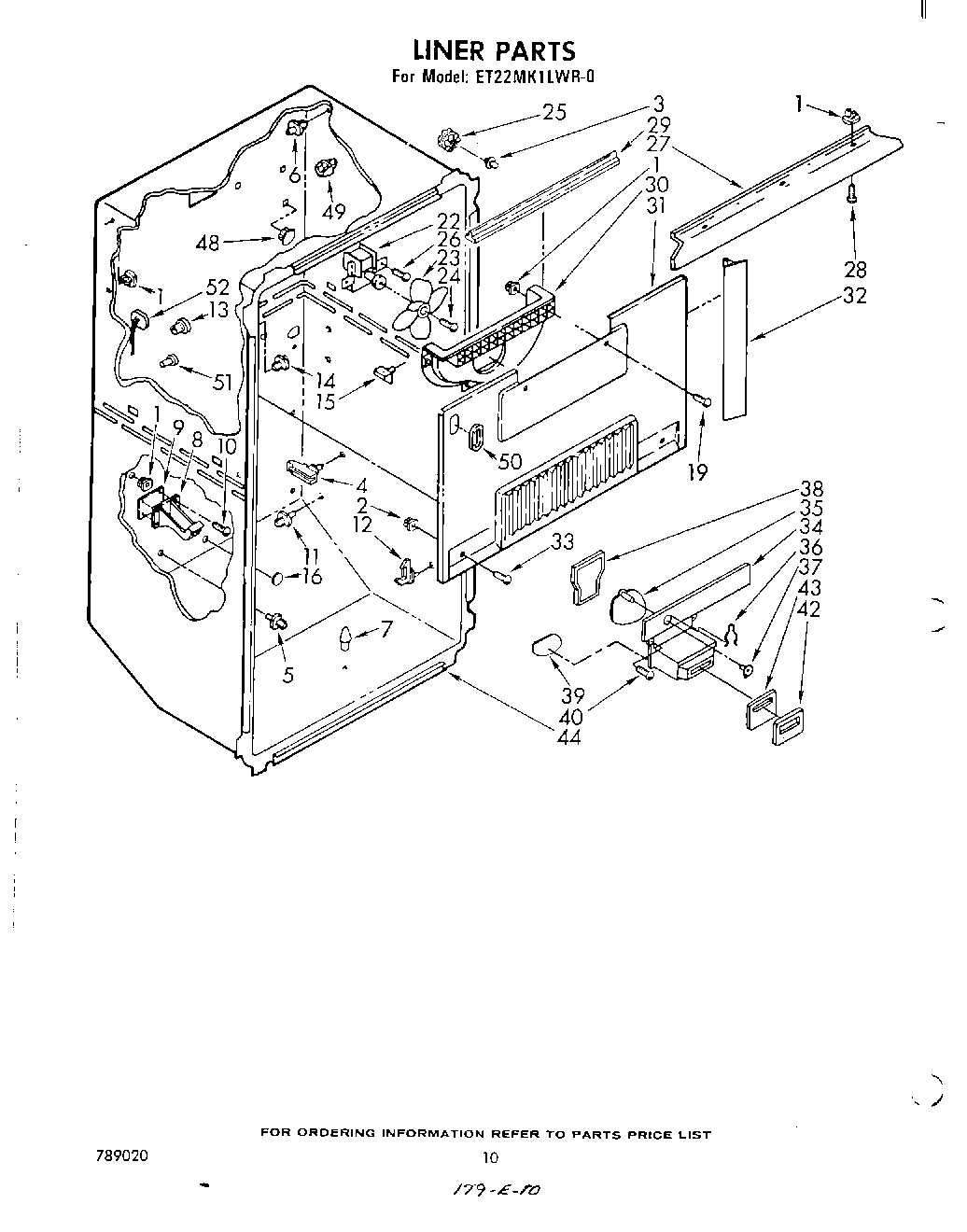

| 1 | Grommet |
| 2 | Grommet |
| 3 | Screw, Grommet |
| 4 | Stud, Light Lens (R.S.) |
| 5 | Shelf, Stud |
| 6 | Stud |
| 7 | Grommet, Crisper Cover |
| 8 | Crisper Cover, Support Rear |
| 9 | Spacer, Support Rear |
| 10 | W11693756 Whirlpool Screw Assembly |
| 11 | Shelf Stud |
| 12 | Shelf Stud |
| 13 | Screw Grommet |
| 14 | Shelf Stud |
| 15 | Retainer, Stud (4) |
| 16 | Hole, Plug |
| 19 | W11624204 Whirlpool Screw |
| 22 | 482731 Whirlpool Refrigerator Evaporator Fan Motor Kit |
| 23 | WP1100938 Whirlpool Refrigerator Fan Blade |
| 24 | WP487887 Whirlpool Refrigerator Screw |
| 25 | Grommet |
| 26 | WP488488 Whirlpool Refrigerator Screw |
| 27 | Baffle, Liner Top |
| 29 | Gasket, Sealing |
| 30 | Scroll, Fan |
| 31 | Cover, Evaporator |
| 32 | Gasket, Evaporator Cover |
| 33 | WP488729 Whirlpool Refrigerator Door Screw |
| 34 | Control Panel, Meat Pan |
| 35 | Damper Control |
| 36 | Retainer, Spring |
| 37 | Control Knob |
| 38 | Seal, Control Panel |
| 39 | Damper, Foam Pad |
| 40 | WP489069 Whirlpool Compactor Screw |
| 42 | Backup Plate |
| 43 | Seal, Control Panel |
| 44 | Liner (Not A Serviceable Part) |
| 48 | Hole, Plug |
| 49 | Shelf Stud Saddle (R.S.) |
| 50 | Hole Plug, Evaporator |
| 51 | Receptacle Cap |
| 52 | Wiring, Ice Maker |
