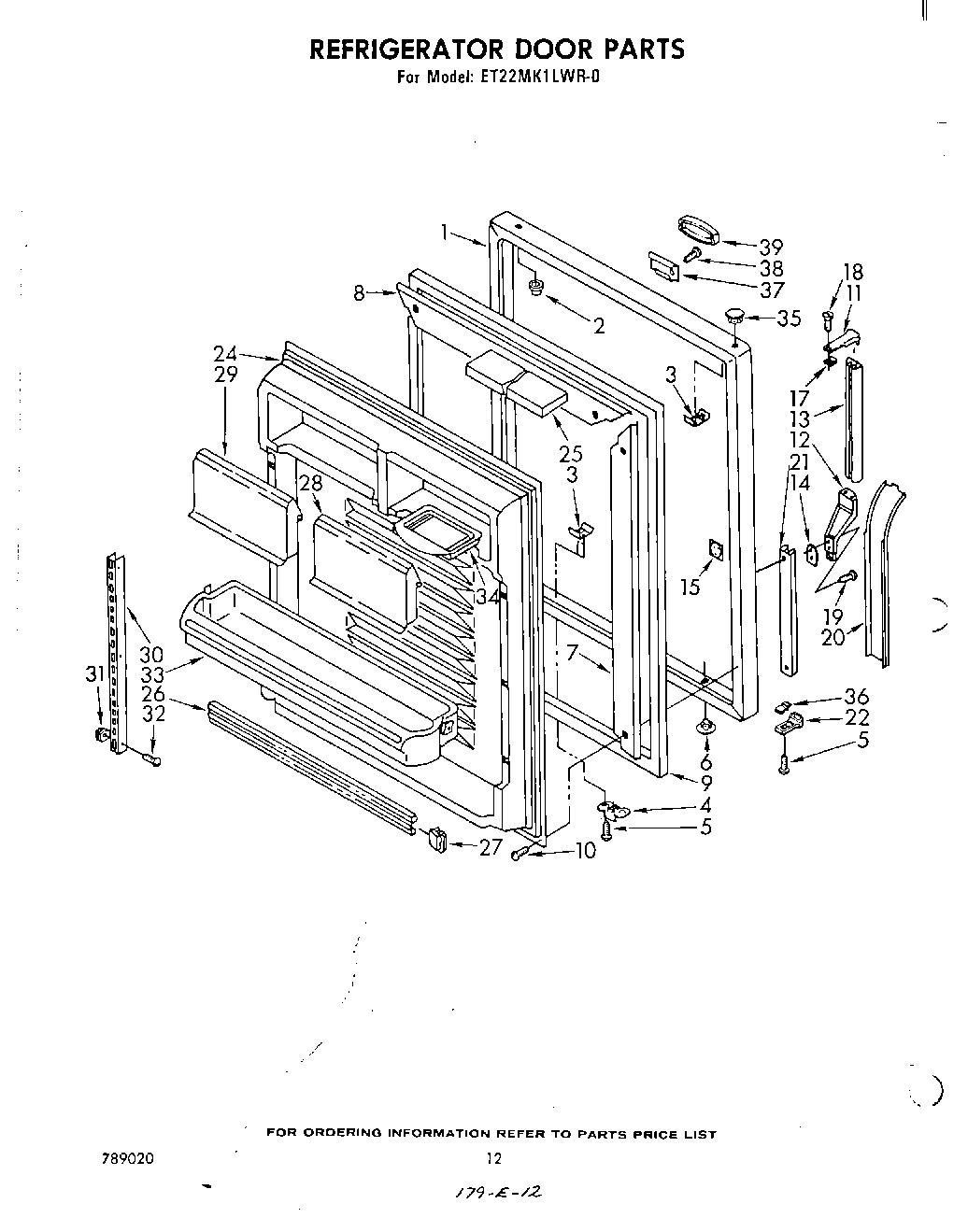

ET22MK1LWR0 08 – REFRIGERATOR DOOR

ET22MK1LWR0 08 – REFRIGERATOR DOOR

Written by

in

ET22MK1LWR0 08 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door Panel (Almond)
1Refrigerator Door Panel (Coffee)
1Refrigerator Door Panel (Golden Harvest)
1Refrigerator Door Panel (White)
1Refrigerator Door Panel (Platinum) (Also Order Item 11)
1Refrigerator Door Panel (Toast)
1Refrigerator Door Panel (Avocado)
2Cap, Hinge Sleeve (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
5Screw (Repair)
6Hole Plug (2)
7Retainer, Gasket Side
8Retainer, Gasket Top
9Door, Gasket Magnetic
9Door, Gasket Magnetic
10WP489069 Whirlpool Compactor Screw
10SCREW
11Handle End
12Center End Cap, Handle
13Handle, Center (Golden Harvest)
13Center, Handle (New Avocado)
13Handle Center (Almond)
13Center, Handle (Platinum)
13Center, Handle (Toast)
13Handle, Center (White & Coffee)
14Shim
15WP939101 Whirlpool Refrigerator Plate
17Spa
18WP488920 Whirlpool Refrigerator Screw
18Screw (Repair)
19W11624204 Whirlpool Screw
20Insert, Handle
21Retainer, Insert
22WPL 944166
24Interior, Door Panel (For Platinum Model Only)
24Interior, Door Panel
25Support, Door Dike
26Trim, Door Shelf
27Retainer Door Trim
27WPL 988709
28Door, Butter
29WPL 935209
30WPL 839430
31Expansion Clip
33Cantilever, Door Shelf
33WPL 1101331
35WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
35Hole Plug (Almond)
35Hole Plug (New Avocado)
35Hole Plug (Platinum)
35Hole Plug (Toast)
35Hole Plug (Coffee)
36WPL 944167
37Clip, Medallion
38WP488729 Whirlpool Refrigerator Door Screw
39Medallion (Toast)
39Medallion (Almond)
39Medallion (White)
39Medallion (Coffee)
39Medallion (New Avocado)
39Medallion (Golden Harvest)
39Medallion (Platinum)
