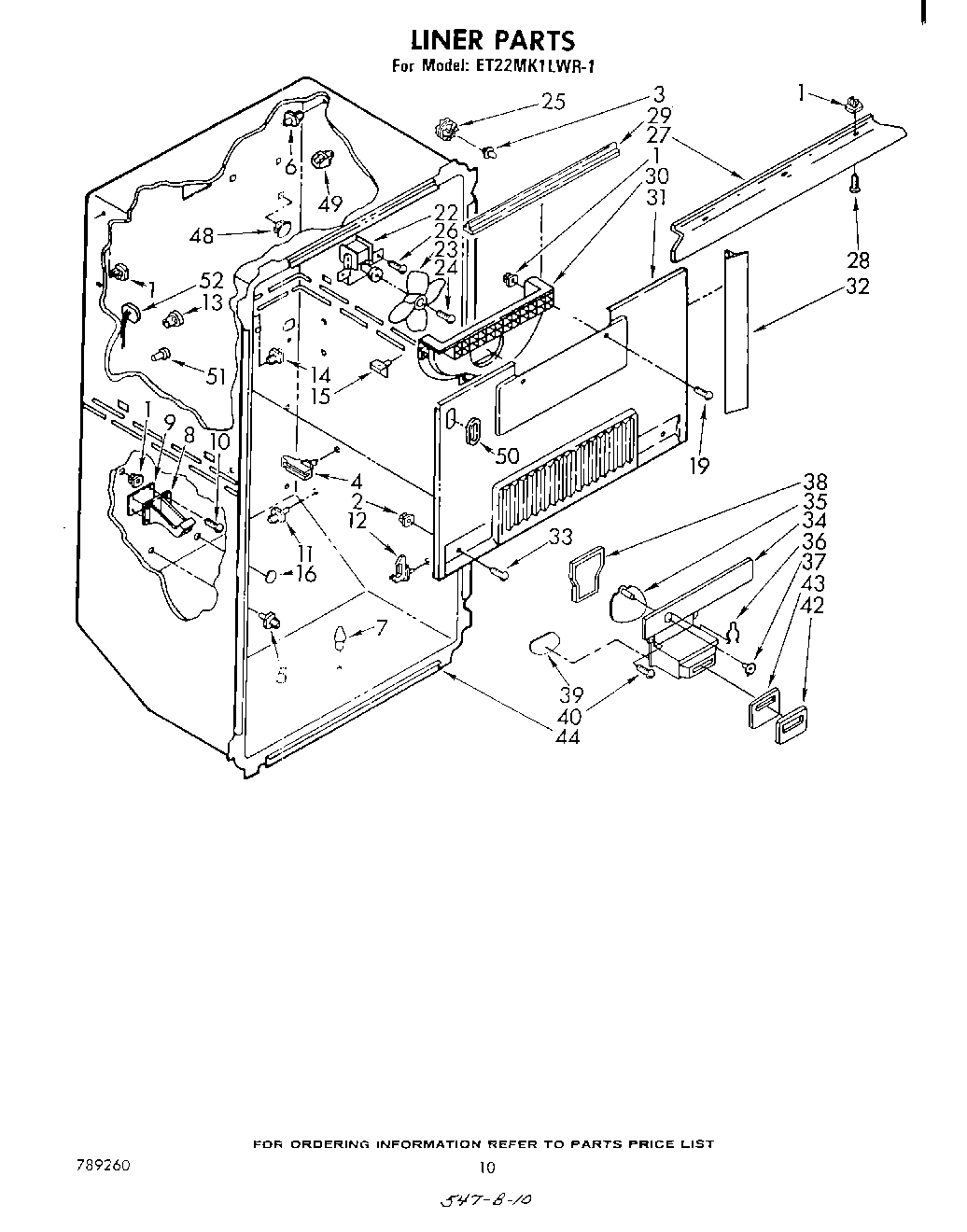

ET22MK1LWR1 06 – LINER

Products

Position	Product
1	Grommet
2	Grommet
3	Screw, Grommet
4	Stud, Light Lens (R.S.)
5	Shelf, Stud
6	Stud
7	Grommet, Crisper Cover
8	Crisper Cover, Support Rear
9	Spacer, Support Rear
10	W11693756 Whirlpool Screw Assembly
11	Shelf Stud
12	Shelf Stud
13	Screw Grommet
14	Shelf Stud
15	Retainer, Stud (4)
16	Hole, Plug
19	W11624204 Whirlpool Screw
22	482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
23	WP1100938 Whirlpool Refrigerator Fan Blade
24	WP487887 Whirlpool Refrigerator Screw
25	Grommet
26	WP488488 Whirlpool Refrigerator Screw
27	Baffle, Liner Top
29	Gasket, Sealing
30	Scroll, Fan
31	Cover, Evaporator
32	Gasket, Evaporator Cover
33	WP488729 Whirlpool Refrigerator Door Screw
34	Control Panel, Meat Pan
35	Damper Control
36	Retainer, Spring
37	Control Knob
38	Seal, Control Panel
39	Damper, Foam Pad
40	WP489069 Whirlpool Compactor Screw
42	Backup Plate
43	Seal, Control Panel
44	Liner (Not A Serviceable Part)
48	Hole, Plug
49	Shelf Stud Saddle (R.S.)
50	Hole Plug, Evaporator
51	Receptacle Cap
52	Wiring, Ice Maker
