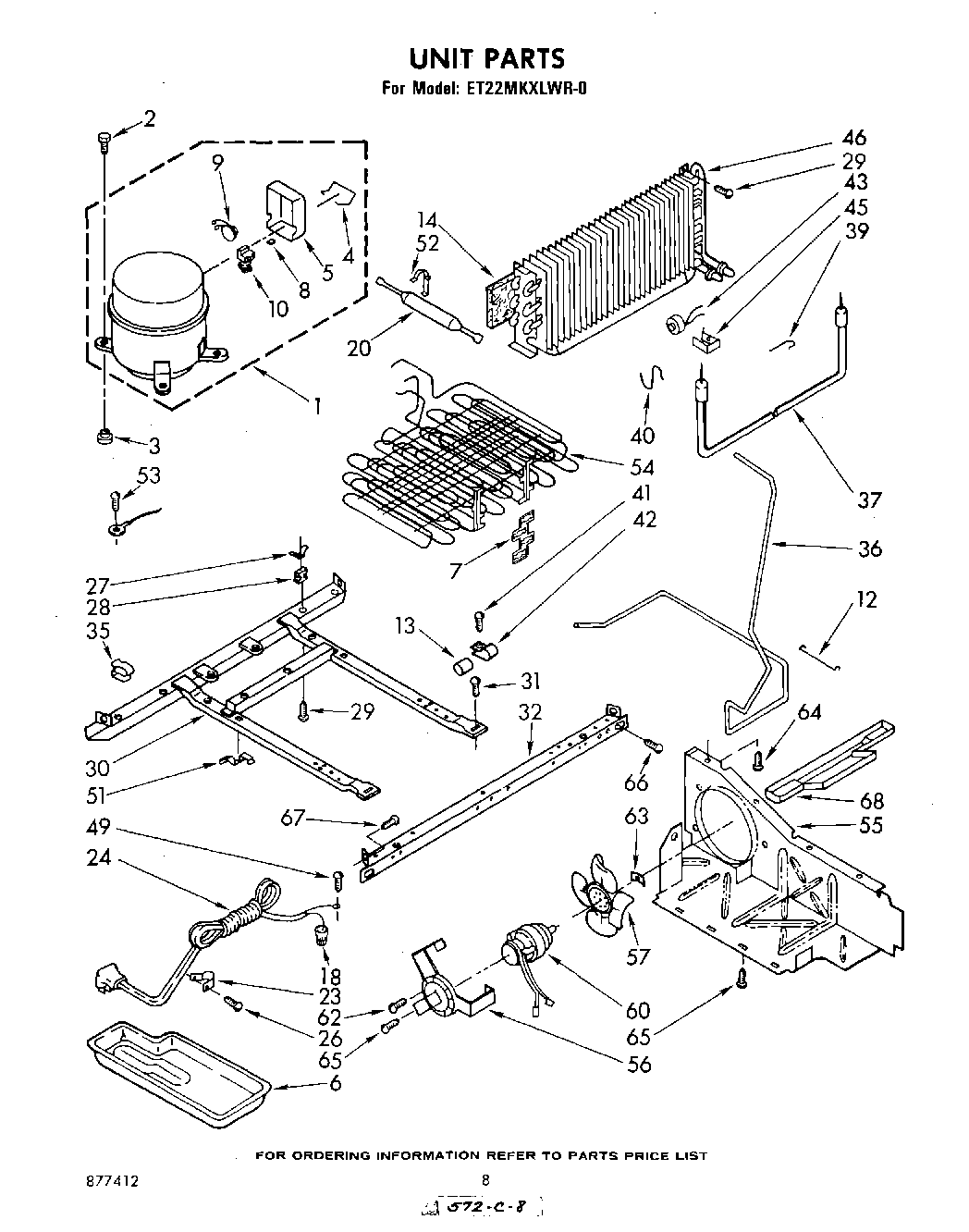

ET22MKXLWR0 05 – UNIT

Products

Position	Product
1	Compressor Kit (Includes Items 4, 5, 8, 9, 10)
2	Screw, 1/4-28 x 1“ (4)
3	Grommet (4)
4	Spring
5	Case, Relay
6	Tray, Evaporator
7	Spacer Condenser (4)
8	Bumper
9	Overload
9	Overload
10	Relay
12	Guard, Fan
13	Dampener (2)
14	Baffle, Air
18	Wire Connector
20	W10843121 Whirlpool Refrigerator Tube
23	549193 Whirlpool Refrigerator Power Clamp
24	Cord, Service
27	Clamp (4)
28	Grommet (4)
29	W11624204 Whirlpool Screw
30	Frame
31	Screw, 1/4-28 x 1/2 (2)
32	Rail, Front
35	Clip, Wire (2)
36	Exchanger, Heat
37	Heater, Defrost
39	Clip, Heater (2)
40	Support, Heater
41	WPW10141625 Whirlpool Refrigerator Screw Assembly
42	Clamp Tube
43	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
45	Clamp
46	Evaporator
49	Screw, 8-32 x 3/8
51	Clip (2)
52	Clamp
53	303776 Whirlpool Dishwasher Screw
54	Condenser & Precooler
55	Baffle, Air
56	Bracket, Motor
57	Fan, Blade
60	833697 Whirlpool Condenser Fan Motor
62	Screw, 8-36 x 3/8 (3)
63	WP486692 Whirlpool Refrigerator Nut
64	Screw, 8-15 x 3/8
65	Screw, 8 x 3/8
66	489340 Whirlpool Refrigerator Screw
67	WP488729 Whirlpool Refrigerator Door Screw
68	978026 Whirlpool Refrigerator Primary Valve
68	Pan, Drip
68	VALVE, ACCESS (5/8“)
68	WP978025 Whirlpool Refrigerator Valve
68	876764 Whirlpool Refrigerator Primary Valve
68	978027 Whirlpool Refrigerator Primary Valve
68	VALVE, ACCESS (1/2“)
68	978030 Whirlpool Refrigerator Valve
