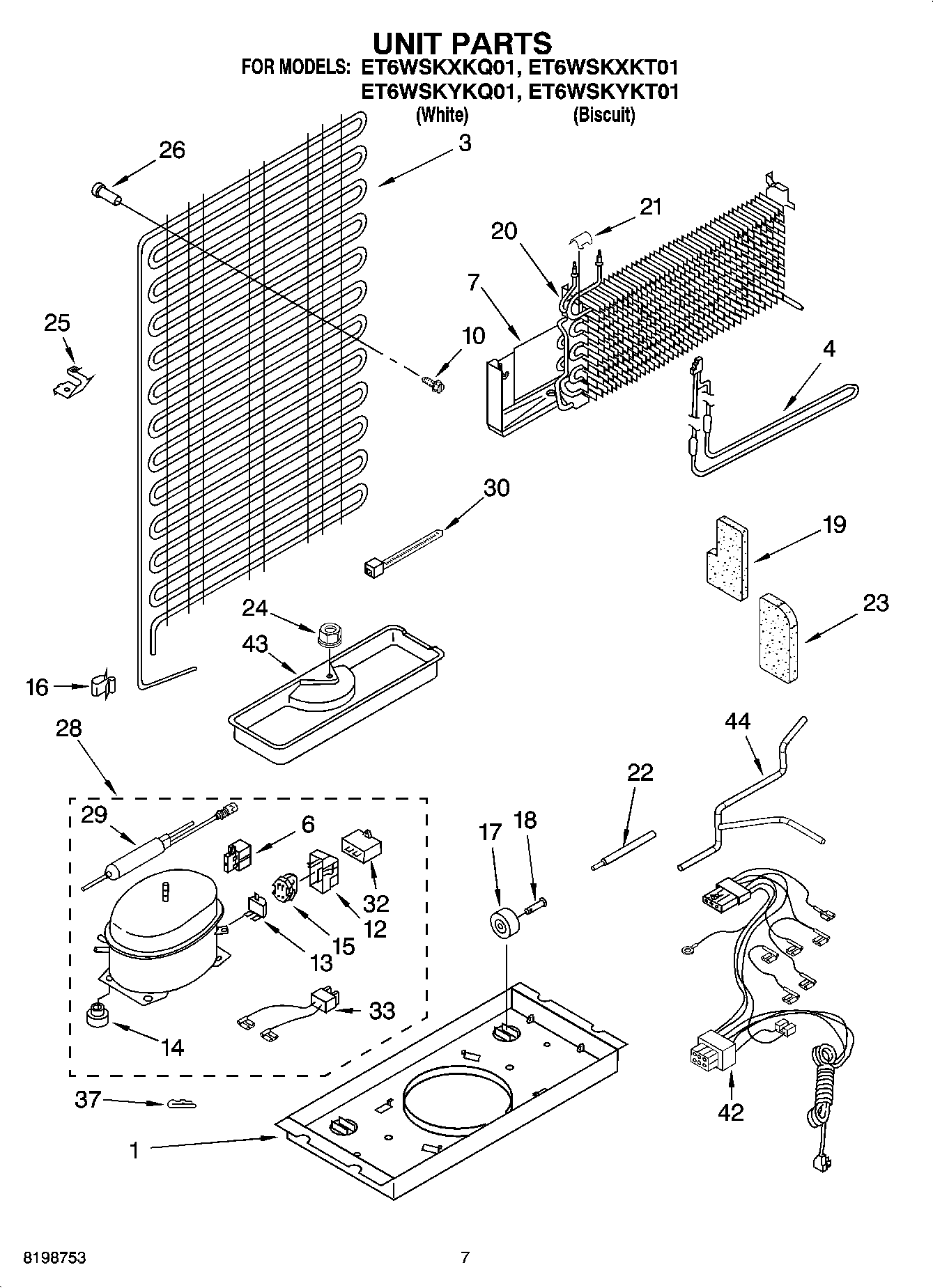

ET6WSKYKT01 04 – UNIT PARTS

Products

Position	Product
1	WPW10222451 Whirlpool Refrigerator Support
3	WP2252730 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
6	W10920279 Whirlpool Refrigerator Start Relay
7	Heat Shield
10	Screw
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2214067 Whirlpool Refrigerator Overload Relay
14	WP2163786 Whirlpool Refrigerator Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	WP2262181 Whirlpool Refrigerator Start Relay
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
21	9791833 Whirlpool Refrigerator Clip
22	W11661102 Whirlpool Tube
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	2258452 Whirlpool Refrigerator Spacer
28	W10309988 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	WP2172890 Whirlpool Refrigerator Wire
37	Clip, Compressor
42	Wire Assy. Unit
43	Tray, Evaporator
44	Tube, Discharge
44	Following Parts Not Illustrated and Optional Parts Not Included
44	VALVE, ACCESS (5/8“)
44	VALVE, ACCESS (1/2“)
44	WP978025 Whirlpool Refrigerator Valve
44	978030 Whirlpool Refrigerator Valve
44	978027 Whirlpool Refrigerator Primary Valve
44	978026 Whirlpool Refrigerator Primary Valve
44	876764 Whirlpool Refrigerator Primary Valve
44	REFRIGERANT CHARGE 3.75 Ozs. (R134A)
