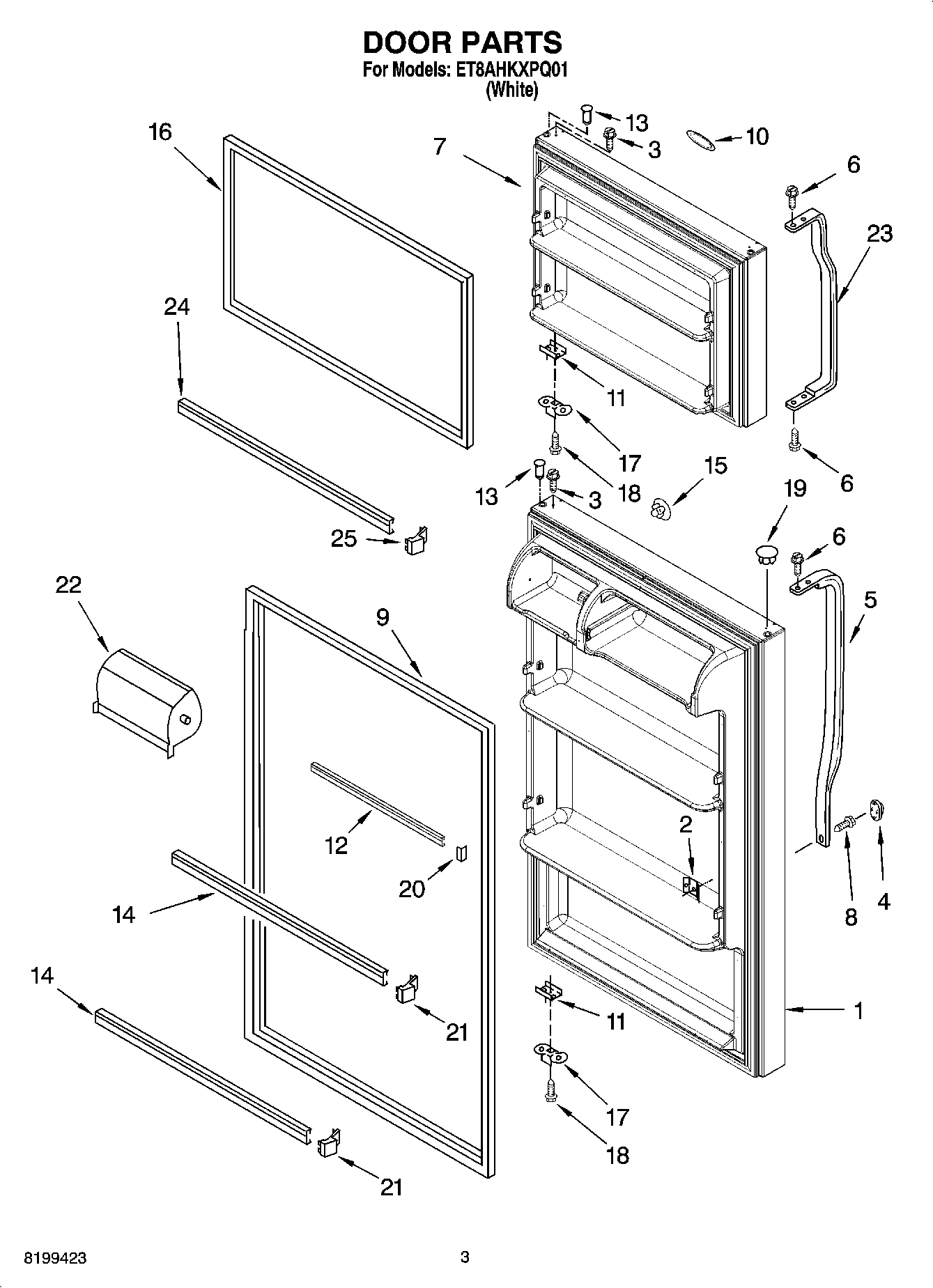

ET8AHKXPQ01 02 – DOOR PARTS

ET8AHKXPQ01 02 – DOOR PARTS

Written by

in

ET8AHKXPQ01 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 2,9, 11 & 13)
2WP939101 Whirlpool Refrigerator Plate
3WP8281206 Whirlpool Refrigerator Screw
4WP2202819W Whirlpool Refrigerator Cover
5HANDLE
6WP489357 Whirlpool Recessed Screw
7Freezer Door (Includes Illus. 14,18 & 24)
8WP8281146 Whirlpool Screw
9WP2319264T Whirlpool Door Gasket
10WP2213265 Whirlpool Refrigerator Nameplate
11Tap Plate
12W11129820 Whirlpool Refrigerator Door Trim
13WP2183003 Whirlpool Thimble
14WP2266738 Whirlpool Refrigerator Door Trim
15WP2189000 Whirlpool Refrigerator Handle Plug
16WP2319263T Whirlpool Refrigerator FIP Gasket
17W11745278 Whirlpool Bracket
18WP488921 Whirlpool Refrigerator Screw
19WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
20ENDCAP-TRM
21ENDCAP
22DOOR-COMP
23HANDLE
24WP2266727 Whirlpool Refrigerator Door Trim
25WP2156003 Whirlpool Refrigerator Door Shelf End Cap
