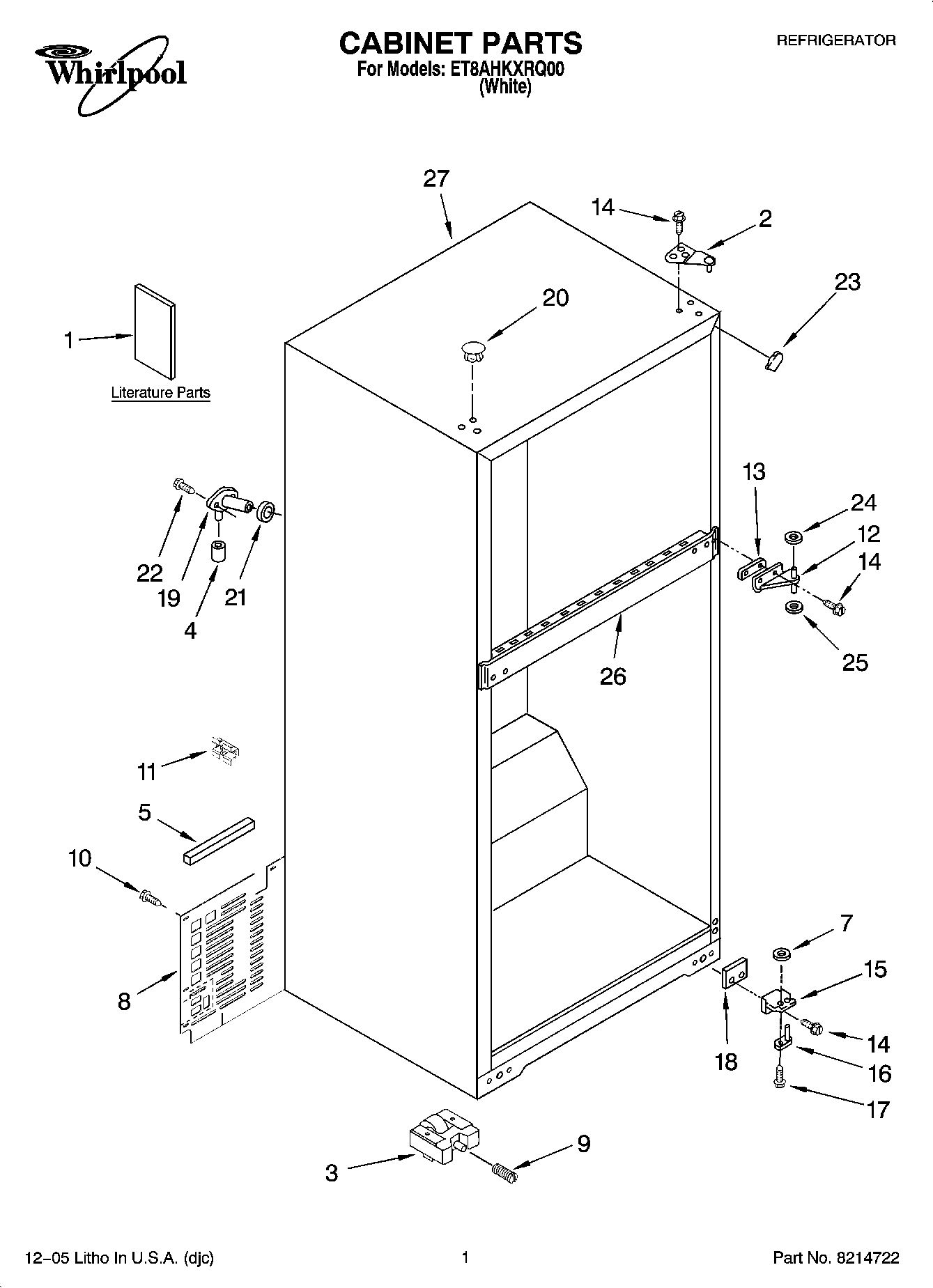

ET8AHKXRQ00 01 – CABINET PARTS

ET8AHKXRQ00 01 – CABINET PARTS

Written by

in

ET8AHKXRQ00 01 – CABINET PARTS

Products

PositionProduct
1Service & Wiring Sheet
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Use & Care Guide
1Energy Guide
1DO-IT-YOURSELF MANUAL, REF./ FZR.
2WP2261963 Whirlpool Refrigerator Door Hinge
32324094 Whirlpool Refrigerator Cabinet Roller
4WP487996 Whirlpool Refrigerator Cap Tube
5Foam Block
7WP488296 Whirlpool Washer Refrigerator
8WP2264132 Whirlpool Refrigerator Unit Cover
92222100 Whirlpool Refrigerator Screw
10WP489442 Whirlpool Refrigerator Screw
112266506 Whirlpool Refrigerator Spacer
12WP2166037 Whirlpool Refrigerator Door Hinge
132166043 Whirlpool Refrigerator Shim
14WP489497 Whirlpool Screw
15WP2325482 Whirlpool Bottom Hinge
16Hinge-Pin Bott.
17WP3428970 Whirlpool Refrigerator Screw
18WP2201567 Whirlpool Hinge Shim
19WP2196157 Whirlpool Fill Tube
20WP2151652 Whirlpool Refrigerator Button Plug
21WP1106508 Whirlpool Refrigerator Gasket
22WP488729 Whirlpool Refrigerator Door Screw
23W10859322 Whirlpool Refrigerator Filler
24WP489467 Whirlpool Hinge Shim
25WP487802 Whirlpool Refrigerator Washer
26Rail Center (Not Serviced)
27Cabinet (Not A Serviceable Part)
