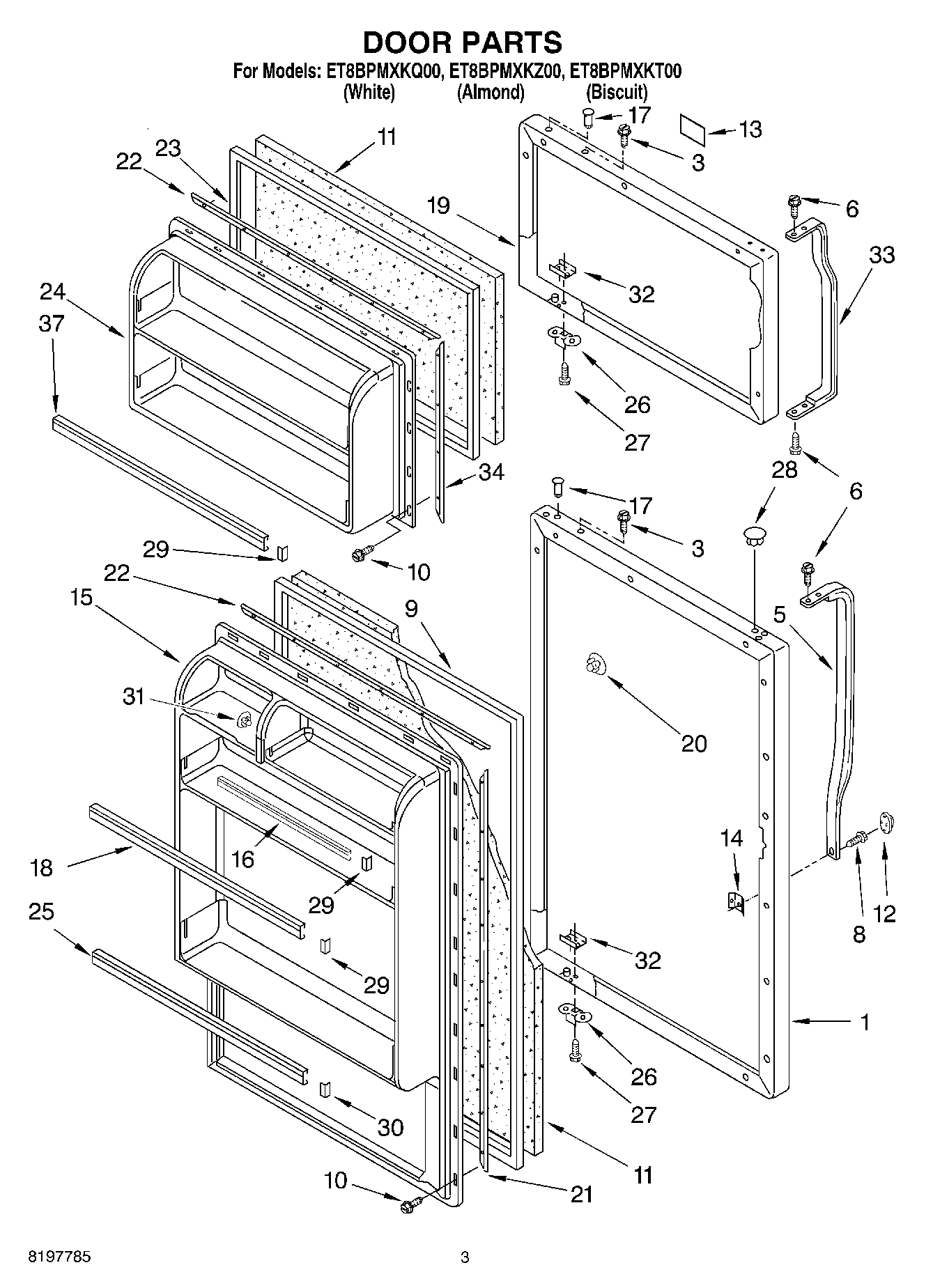

ET8BPMXKQ00 02 – DOOR

ET8BPMXKQ00 02 – DOOR

Written by

in

ET8BPMXKQ00 02 – DOOR

Products

PositionProduct
1Refrigerator Door Panel (Also Order Item 11) (Biscuit)
1Refrigerator Door Panel (Also Order Item 11) (Almond)
1Refrigerator Door Panel (Also Order Item 11) (White)
3WP8281206 Whirlpool Refrigerator Screw
5WP2202807W Whirlpool Handle Door
5Handle Center (Biscuit)
5Handle Center (Almond)
6WP489357 Whirlpool Recessed Screw
8WP8281146 Whirlpool Screw
9WP2319264T Whirlpool Door Gasket
10WP489442 Whirlpool Refrigerator Screw
11WPL 876029
12Cover, Screw (Biscuit)
12WP2202819W Whirlpool Refrigerator Cover
12Cover, Screw (Almond)
13Nameplate (Almond Model)
13Nameplate (Biscuit)
13Nameplate (White)
14WP939101 Whirlpool Refrigerator Plate
15Interior Door Panel (Refrigerator)
17WP2183003 Whirlpool Thimble
18Trim, Door (Middle)
19Freezer Door Panel (Also Order Item 11) (White)
19Freezer Door Panel (Also Order Item 11) (Biscuit)
19Freezer Door Panel (Also Order Item 11) (Almond)
20WP2200936 Whirlpool Refrigerator Handle Plug
20WP2189000 Whirlpool Refrigerator Handle Plug
20Hole Plug (Almond)
21Retainer, Gasket
22Retainer, Gasket
232188462A Whirlpool Freezer Door Gasket
24Interior Door Panel (Freezer)
25WP2197356 Whirlpool Refrigerator Door Trim
26W11745278 Whirlpool Bracket
27WP488921 Whirlpool Refrigerator Screw
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
28Hole Plug (Almond)
28WP2212649 Whirlpool Refrigerator Button Plug
29ENDCAP-TRM
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31Hole Plug
32Tap Plate
33WP2215015 Whirlpool Refrigerator Handle
33HANDLE
33Handle, F.C. (Almond)
34Retainer, Gasket
37WP2163629 Whirlpool Refrigerator Door Trim
