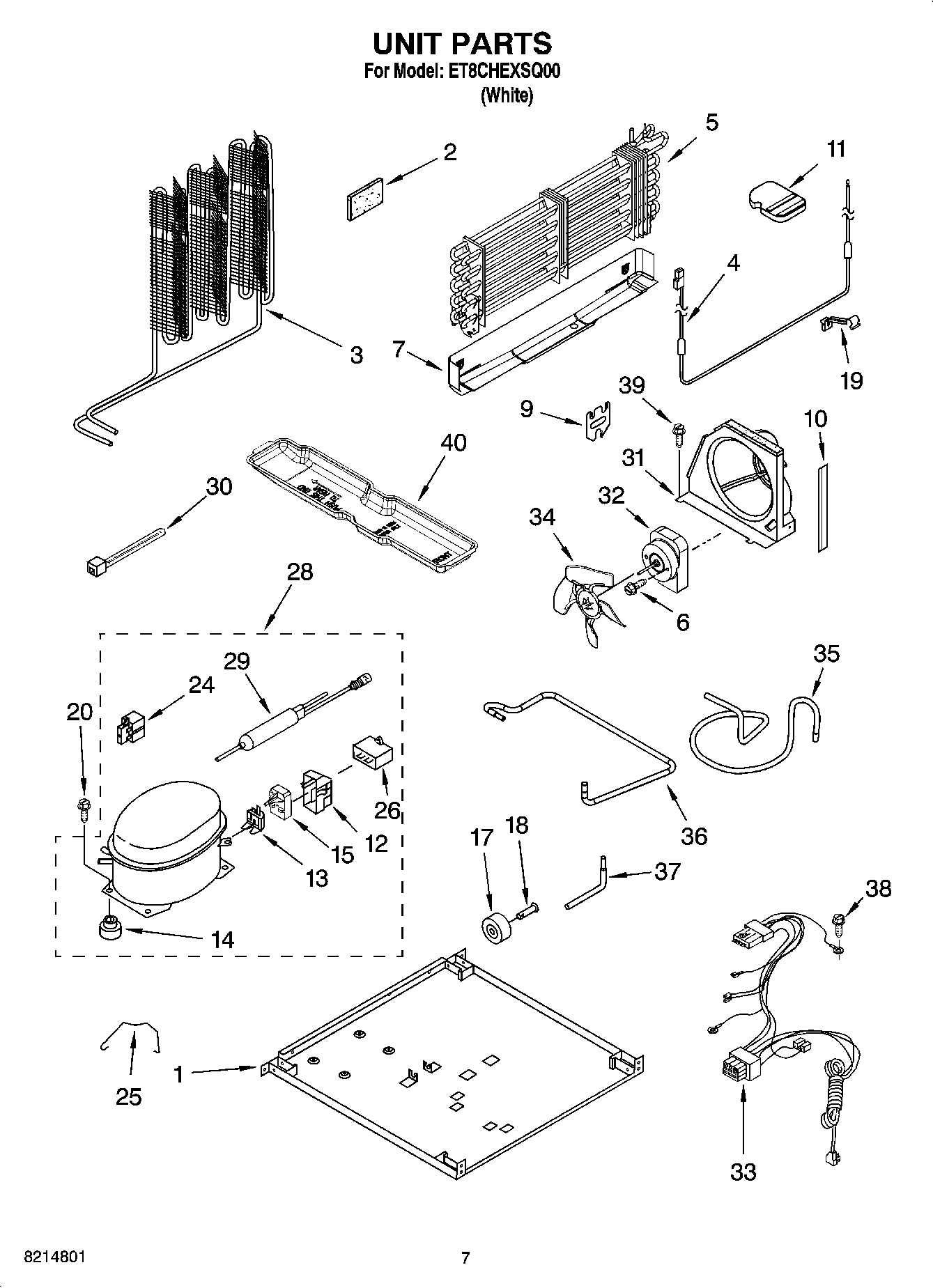

ET8CHEXSQ00 04 – UNIT PARTS

Products

Position	Product
1	Plate, Unit Mounting
2	W11553819 Whirlpool Refrigerator Insulation
3	WP2214960 Whirlpool Refrigerator Condenser
4	WP2315531 Whirlpool Refrigerator Heater
5	Evaporator Assy.
6	WPW10171469 Whirlpool Refrigerator Screw
7	Drain Pan
9	Bracket, Heater
10	Extension, Air Baffle
11	Support Block
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP4387938 Whirlpool Refrigerator Overload
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	876811 Whirlpool Grommet
15	WP2225929 Whirlpool Refrigerator Start Device
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
24	W10920279 Whirlpool Refrigerator Start Relay
25	2212996 Whirlpool Refrigerator Retainer
26	WPW10662129 Whirlpool Refrigerator Run Capacitor
28	W10309988 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
31	Air Baffle
32	WP2188874 Whirlpool Refrigerator Condenser Motor
33	2187382 Whirlpool Refrigerator Wire Harness
34	W11458267 Whirlpool Refrigerator Fan Blade
35	Tube, Discharge
36	Tube, Suction
37	2154109 Whirlpool Refrigerator Tube
38	WP489128 Whirlpool Refrigerator Screw
39	3400518 Whirlpool Oven Foot Mount Screw
40	8201826 Whirlpool Refrigerator Evaporator Tray
40	978026 Whirlpool Refrigerator Primary Valve
40	Following Parts Not Illustrated and Optional Parts Not Included
40	876764 Whirlpool Refrigerator Primary Valve
40	978027 Whirlpool Refrigerator Primary Valve
40	978030 Whirlpool Refrigerator Valve
40	WP978025 Whirlpool Refrigerator Valve
40	VALVE, ACCESS (1/2“)
40	VALVE, ACCESS (5/8“)
40	REFRIGERANT CHARGE 4.00 Ozs. (R134A)
