ET8CHKXKB01 04 – UNIT

ET8CHKXKB01 04 – UNIT

Written by

in

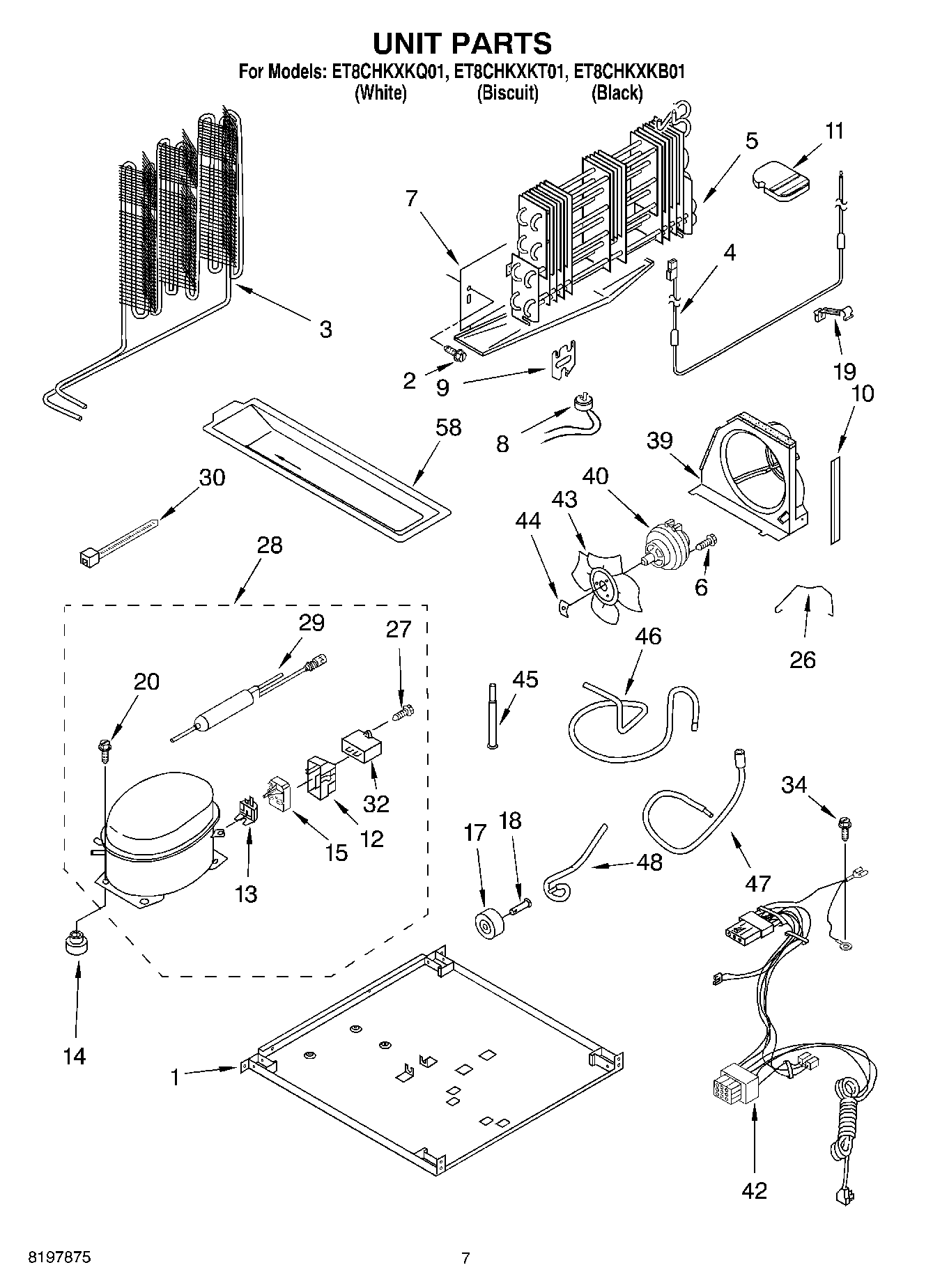

ET8CHKXKB01 04 – UNIT

Products

PositionProduct
1Plate, Unit Mounting
2WP489478 Whirlpool Refrigerator Screw
3WP2214960 Whirlpool Refrigerator Condenser
4WP2315531 Whirlpool Refrigerator Heater
5Evaporator Assy.
6WP8281196 Whirlpool Screw
7Drain Pan
8WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
9Bracket, Heater
10Extension, Air Baffle
11Support Block
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP4387938 Whirlpool Refrigerator Overload
14WP4387558 Whirlpool Refrigerator Compressor Grommet
14876811 Whirlpool Grommet
158201769 Whirlpool Refrigerator Compressor Relay Overload Start Device
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
26Bale Strap, Compressor
27WP489128 Whirlpool Refrigerator Screw
28W10823815 Whirlpool Refrigerator Compressor
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
32WPW10662129 Whirlpool Refrigerator Run Capacitor
343400518 Whirlpool Oven Foot Mount Screw
39Air Baffle
40W10822259 Whirlpool Refrigerator Condenser Fan Motor
42Wire Assy. Unit
43Blade, Fan
44WP486692 Whirlpool Refrigerator Nut
45Tube, Transition
46Tube, Discharge
472205293 Whirlpool Refrigerator Tube
48W11676464 Whirlpool Tube
58VALVE, ACCESS (1/2“)
58VALVE, ACCESS (5/8“)
58WP978025 Whirlpool Refrigerator Valve
58Evaporator Tray
58876764 Whirlpool Refrigerator Primary Valve
58978026 Whirlpool Refrigerator Primary Valve
58978030 Whirlpool Refrigerator Valve
58978027 Whirlpool Refrigerator Primary Valve
