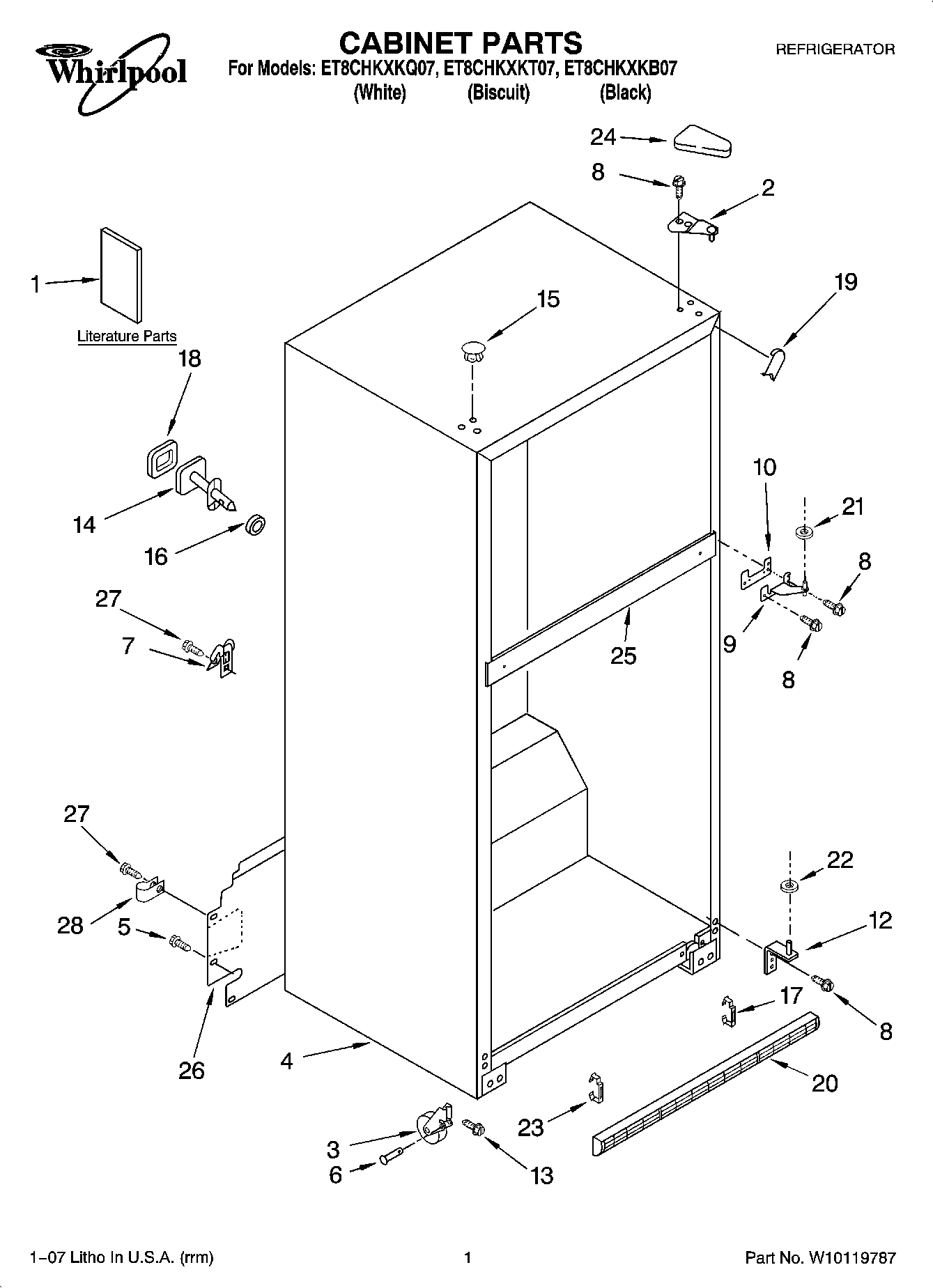

ET8CHKXKB07 01 – CABINET PARTS

ET8CHKXKB07 01 – CABINET PARTS

Written by

in

ET8CHKXKB07 01 – CABINET PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Energy Label
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Use & Care Guide
1Service & Wiring Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4Cabinet, (Not A Serviceable Part)
5WP489427 Whirlpool Refrigerator Screw
6W11594405 Whirlpool Axle
7549193 Whirlpool Refrigerator Power Clamp
8WP489497 Whirlpool Screw
9WP2254618 Whirlpool Center Door Hinge
10WP2183854 Whirlpool Refrigerator Shim
12WP2254473 Whirlpool Refrigerator Door Hinge
13WP3400504 Whirlpool Refrigerator Screw
14Fitting, Water Tube (Not Serviced)
15Hole Plug (6) (Biscuit)
15WP2183998 Whirlpool Refrigerator Button Plug
15WP2151652 Whirlpool Refrigerator Button Plug
16Seal, Front (Not Serviced)
172254385 Whirlpool Refrigerator Clip
18Seal, Rear (Not Serviced)
19W11252732 Whirlpool Refrigerator Filler
19WPW10283959 Whirlpool Refrigerator Filler
19W10283958 Whirlpool Refrigerator Filler
20WP2254386 Whirlpool Refrigerator Grille
20Grille (Includes Illus. 4 & 24) (Black)
21WP489467 Whirlpool Hinge Shim
22WP487576 Whirlpool Washer
23CLIP, GRILLE
24WP2213360 Whirlpool Refrigerator Cover
242213364 Whirlpool Refrigerator Cover
24WP2213363 Whirlpool Refrigerator Cover
25Rail, Center (Not Serviced)
26Cover, Unit
27WP489442 Whirlpool Refrigerator Screw
28WP488366 Whirlpool Refrigerator Clamp
