ET8CHKXKQ02 02 – DOOR

ET8CHKXKQ02 02 – DOOR

Written by

in

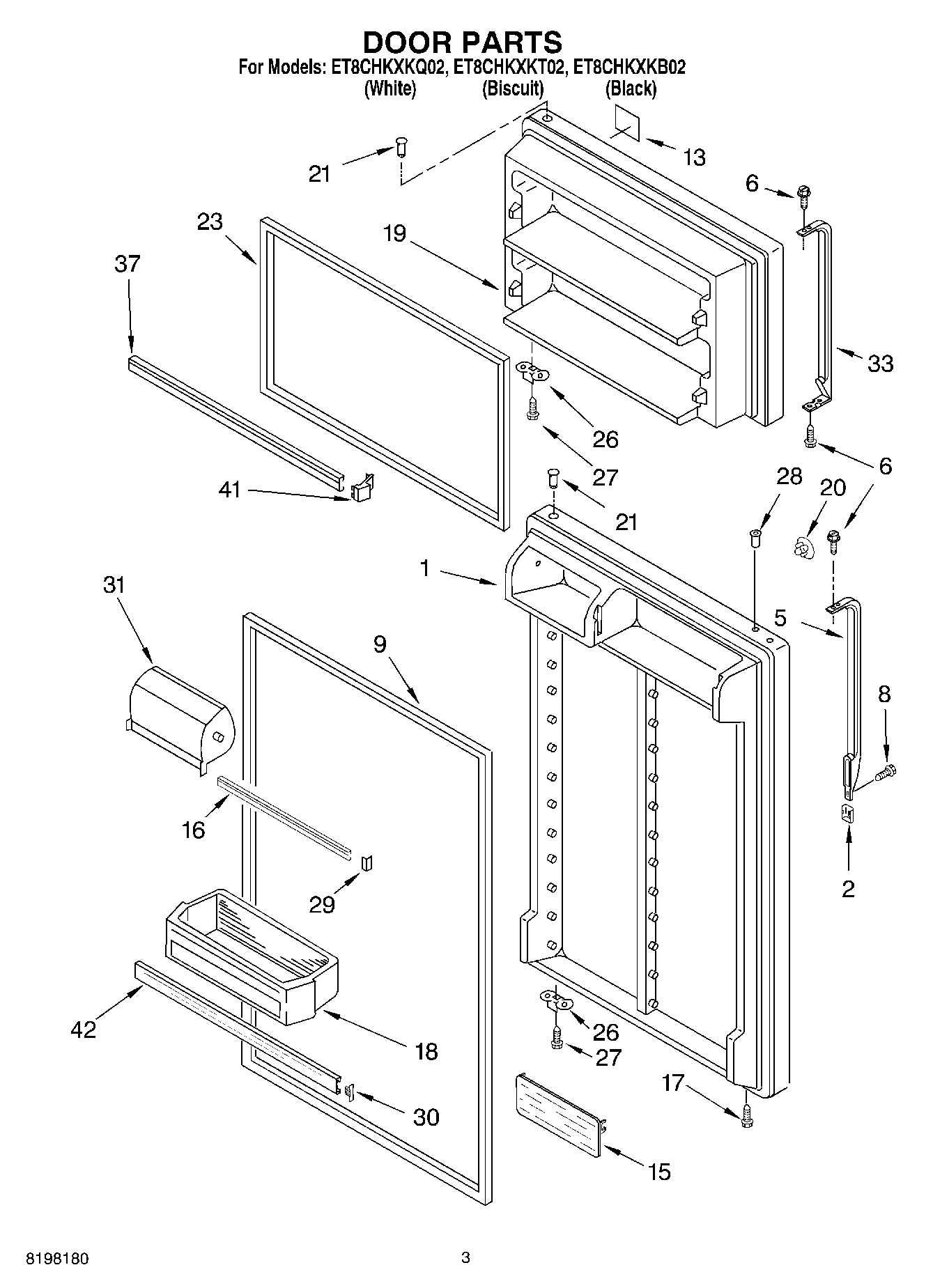

ET8CHKXKQ02 02 – DOOR

Products

PositionProduct
1Refrigerator Door (Includes Illus. 3,4, 9 & 17) (White)
1Refrigerator Door (Includes Illus. 3,4, 9 & 17) (Black)
1Refrigerator Door (Includes Illus. 3,4, 9 & 17) (Biscuit)
2WP2193353W Whirlpool Refrigerator Trim Handle
2Cover, Trim (Black)
2Cover, Trim (Biscuit)
6WP489357 Whirlpool Recessed Screw
8WP8281146 Whirlpool Screw
92159057 Whirlpool Refrigerator Fresh Food Door Gasket
92177305 Whirlpool Refrigerator Door FIP Gasket
13Nameplate (Biscuit Model)
13Nameplate (White)
13Nameplate (Black)
15WP2188234 Whirlpool Shelf
16TRIM-DOOR
17WP8281206 Whirlpool Refrigerator Screw
18WP2204810 Whirlpool Refrigerator Cantilever Bin
19Freezer Door (Includes Illus. 4, 17 & 18) (White)
19Freezer Door (Includes Illus. 4,17 & 18) (Black)
19Freezer Door (Includes Illus. 4,17 & 18) (Biscuit)
20WP2200936 Whirlpool Refrigerator Handle Plug
20WP2189009 Whirlpool Refrigerator Handle Plug
20WP2189000 Whirlpool Refrigerator Handle Plug
21WP2183003 Whirlpool Thimble
232159327 Whirlpool Refrigerator Door Gasket
232177304 Whirlpool Refrigerator FIP Gasket
26W11745278 Whirlpool Bracket
27WP488921 Whirlpool Refrigerator Screw
28WP2212649 Whirlpool Refrigerator Button Plug
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
28WP2212651 Whirlpool Refrigerator Button Plug
29ENDCAP-TRM
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31WP2218113 Whirlpool Dairy Door
334388949 Whirlpool Refrigerator Handle
334388950 Whirlpool Refrigerator Handle
334388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
37Trim-Door (2)
41ENDCAP
42WPW10421484 Whirlpool Refrigerator Door Trim
