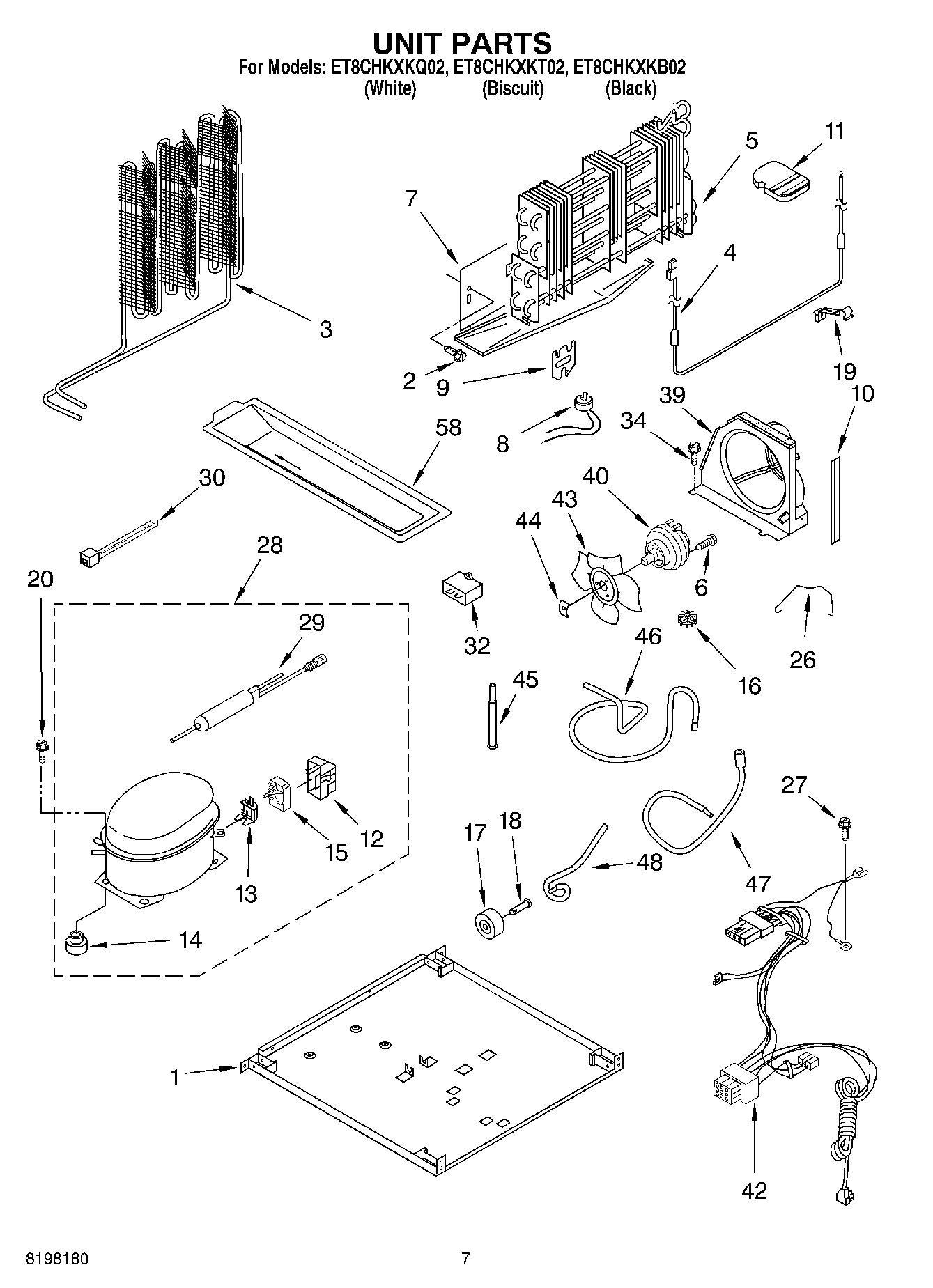

ET8CHKXKQ02 04 – UNIT

Products

Position	Product
1	Plate, Unit Mounting
2	WP489478 Whirlpool Refrigerator Screw
3	WP2214960 Whirlpool Refrigerator Condenser
4	WP2315531 Whirlpool Refrigerator Heater
5	Evaporator Assy.
6	WP8281196 Whirlpool Screw
7	Drain Pan
8	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
9	Bracket, Heater
10	Extension, Air Baffle
11	Support Block
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP4387938 Whirlpool Refrigerator Overload
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	8201769 Whirlpool Refrigerator Compressor Relay Overload Start Device
16	Grommet
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
26	Bale Strap, Compressor
27	WP489128 Whirlpool Refrigerator Screw
28	W10823815 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
34	3400518 Whirlpool Oven Foot Mount Screw
39	Air Baffle
40	W10822259 Whirlpool Refrigerator Condenser Fan Motor
42	Wire Assy. Unit
43	Blade, Fan
44	WP486692 Whirlpool Refrigerator Nut
45	Tube, Transition
46	Tube, Discharge
47	2205293 Whirlpool Refrigerator Tube
48	W11676464 Whirlpool Tube
58	VALVE, ACCESS (5/8“)
58	VALVE, ACCESS (1/2“)
58	WP978025 Whirlpool Refrigerator Valve
58	876764 Whirlpool Refrigerator Primary Valve
58	978026 Whirlpool Refrigerator Primary Valve
58	978027 Whirlpool Refrigerator Primary Valve
58	978030 Whirlpool Refrigerator Valve
58	Evaporator Tray
