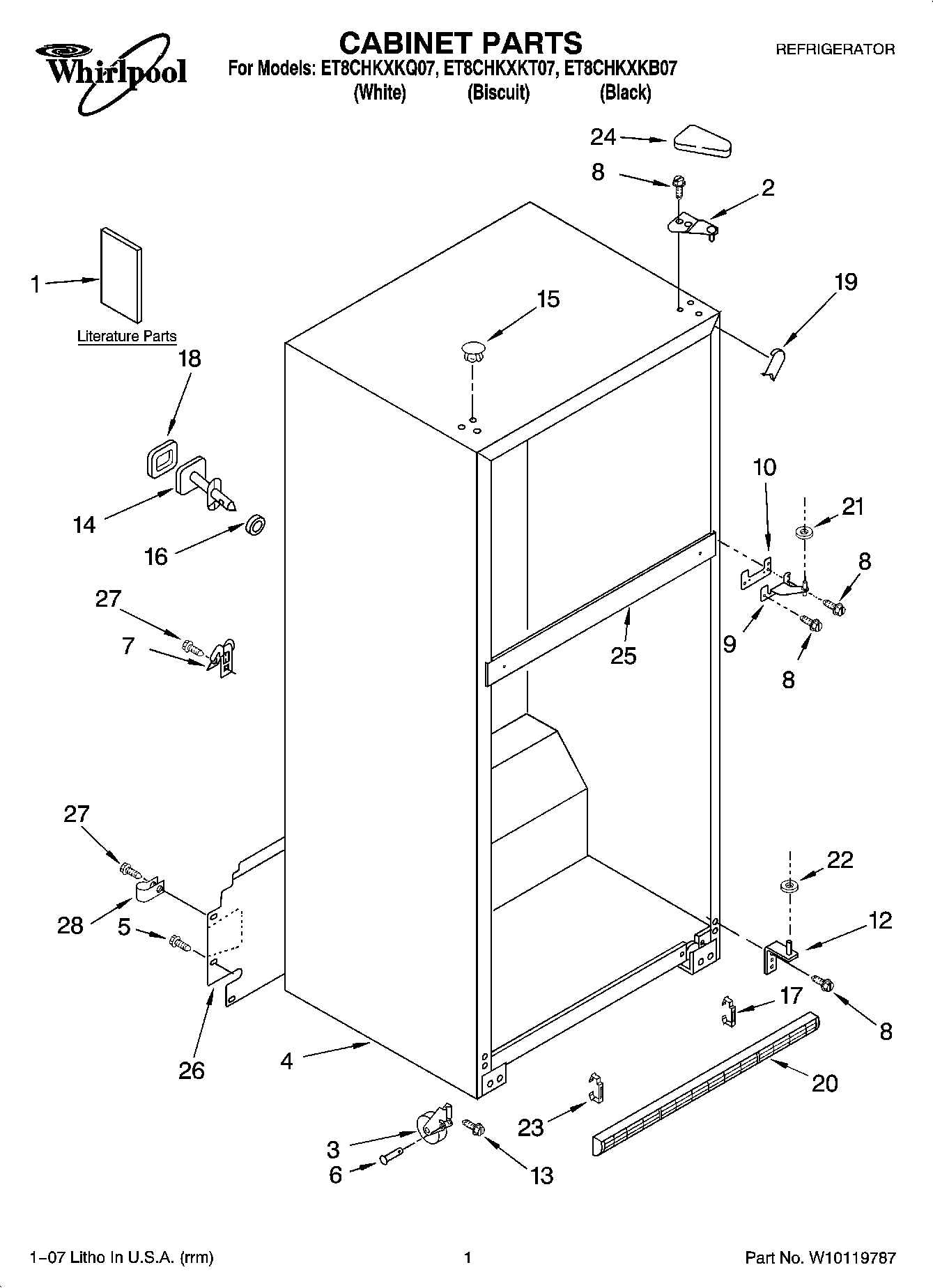

ET8CHKXKQ07 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	Use & Care Guide
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Energy Label
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	Cabinet, (Not A Serviceable Part)
5	WP489427 Whirlpool Refrigerator Screw
6	W11594405 Whirlpool Axle
7	549193 Whirlpool Refrigerator Power Clamp
8	WP489497 Whirlpool Screw
9	WP2254618 Whirlpool Center Door Hinge
10	WP2183854 Whirlpool Refrigerator Shim
12	WP2254473 Whirlpool Refrigerator Door Hinge
13	WP3400504 Whirlpool Refrigerator Screw
14	Fitting, Water Tube (Not Serviced)
15	Hole Plug (6) (Biscuit)
15	WP2183998 Whirlpool Refrigerator Button Plug
15	WP2151652 Whirlpool Refrigerator Button Plug
16	Seal, Front (Not Serviced)
17	2254385 Whirlpool Refrigerator Clip
18	Seal, Rear (Not Serviced)
19	W11252732 Whirlpool Refrigerator Filler
19	WPW10283959 Whirlpool Refrigerator Filler
19	W10283958 Whirlpool Refrigerator Filler
20	WP2254386 Whirlpool Refrigerator Grille
20	Grille (Includes Illus. 4 & 24) (Black)
21	WP489467 Whirlpool Hinge Shim
22	WP487576 Whirlpool Washer
23	CLIP, GRILLE
24	2213364 Whirlpool Refrigerator Cover
24	WP2213360 Whirlpool Refrigerator Cover
24	WP2213363 Whirlpool Refrigerator Cover
25	Rail, Center (Not Serviced)
26	Cover, Unit
27	WP489442 Whirlpool Refrigerator Screw
28	WP488366 Whirlpool Refrigerator Clamp
