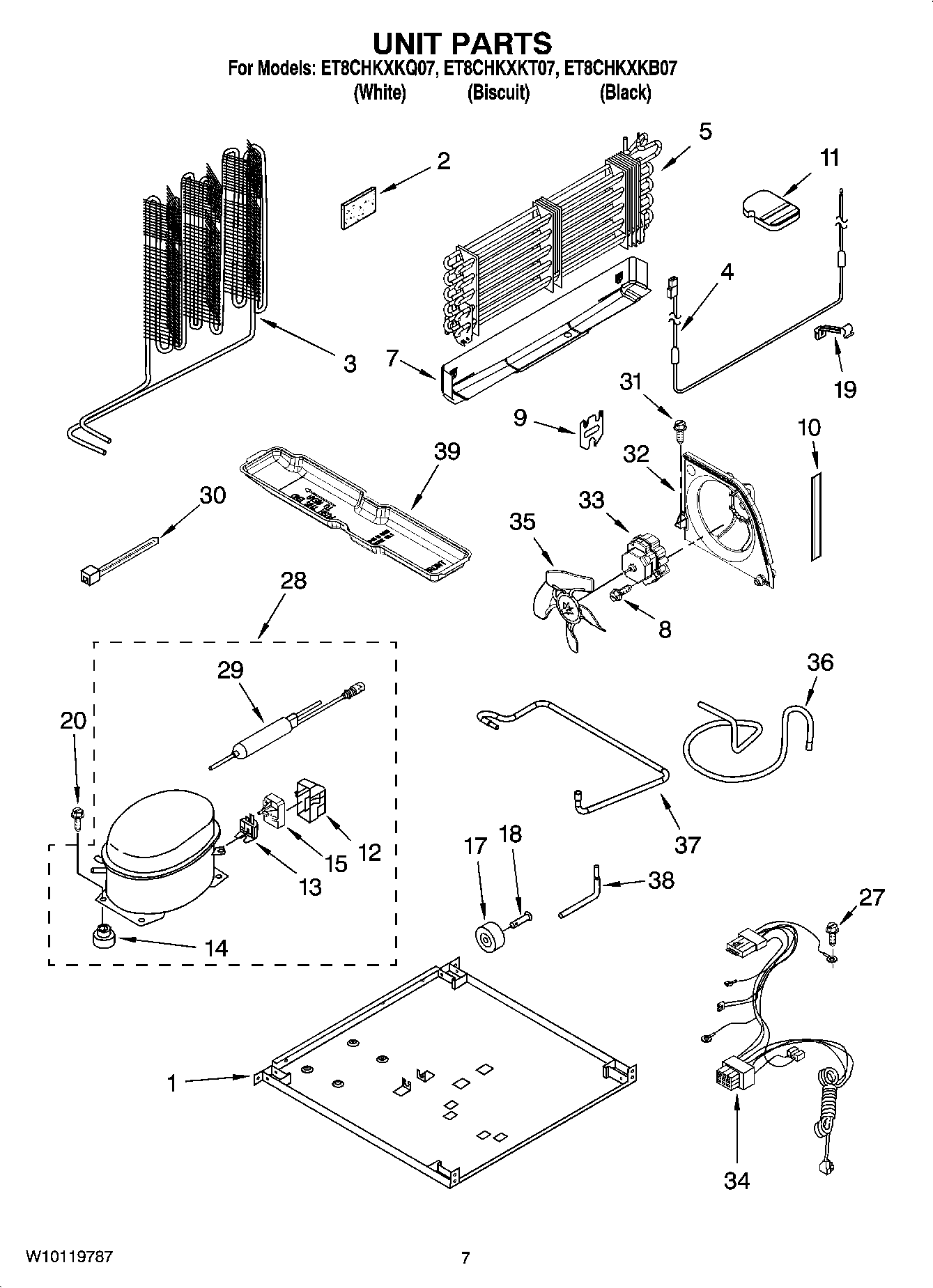

ET8CHKXKT07 04 – UNIT PARTSadmin2025-04-26T10:34:27+00:00ET8CHKXKT07 04 – UNIT PARTS ProductsPositionProduct1Plate, Unit Mounting2W11553819 Whirlpool Refrigerator Insulation3WP2214960 Whirlpool Refrigerator Condenser4WP2315531 Whirlpool Refrigerator Heater5Evaporator Assy.7Drain Pan8WPW10171469 Whirlpool Refrigerator Screw9Bracket, Heater10Extension, Air Baffle11Support Block12WP2162358 Whirlpool Refrigerator Terminal Cover13WP4387938 Whirlpool Refrigerator Overload13WP2302290 Whirlpool Refrigerator Overload14876811 Whirlpool Grommet14WP4387558 Whirlpool Refrigerator Compressor Grommet15WP2258450 Whirlpool Refrigerator Start Device17WPW10475495 Whirlpool Roller Assembly18W11594405 Whirlpool Axle19Clip, Heater27WP489128 Whirlpool Refrigerator Screw28W10823815 Whirlpool Refrigerator Compressor29WPW10143759 Whirlpool Dryer Filter30WPW10339879 Whirlpool Wire Tie313400518 Whirlpool Oven Foot Mount Screw32WP2315541 Whirlpool Refrigerator Air Baffle33W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade34Wire Assy. Unit35W11458267 Whirlpool Refrigerator Fan Blade36Tube, Discharge372205293 Whirlpool Refrigerator Tube38W11676464 Whirlpool Tube39Following Parts Not Illustrated and Optional Parts Not Included398201826 Whirlpool Refrigerator Evaporator Tray39VALVE, ACCESS (5/8``)39876764 Whirlpool Refrigerator Primary Valve39978027 Whirlpool Refrigerator Primary Valve39978030 Whirlpool Refrigerator Valve39WP978025 Whirlpool Refrigerator Valve39VALVE, ACCESS (1/2``)39978026 Whirlpool Refrigerator Primary Valve39REFRIGERANT CHARGE 4.00 Ozs. (R134A)
