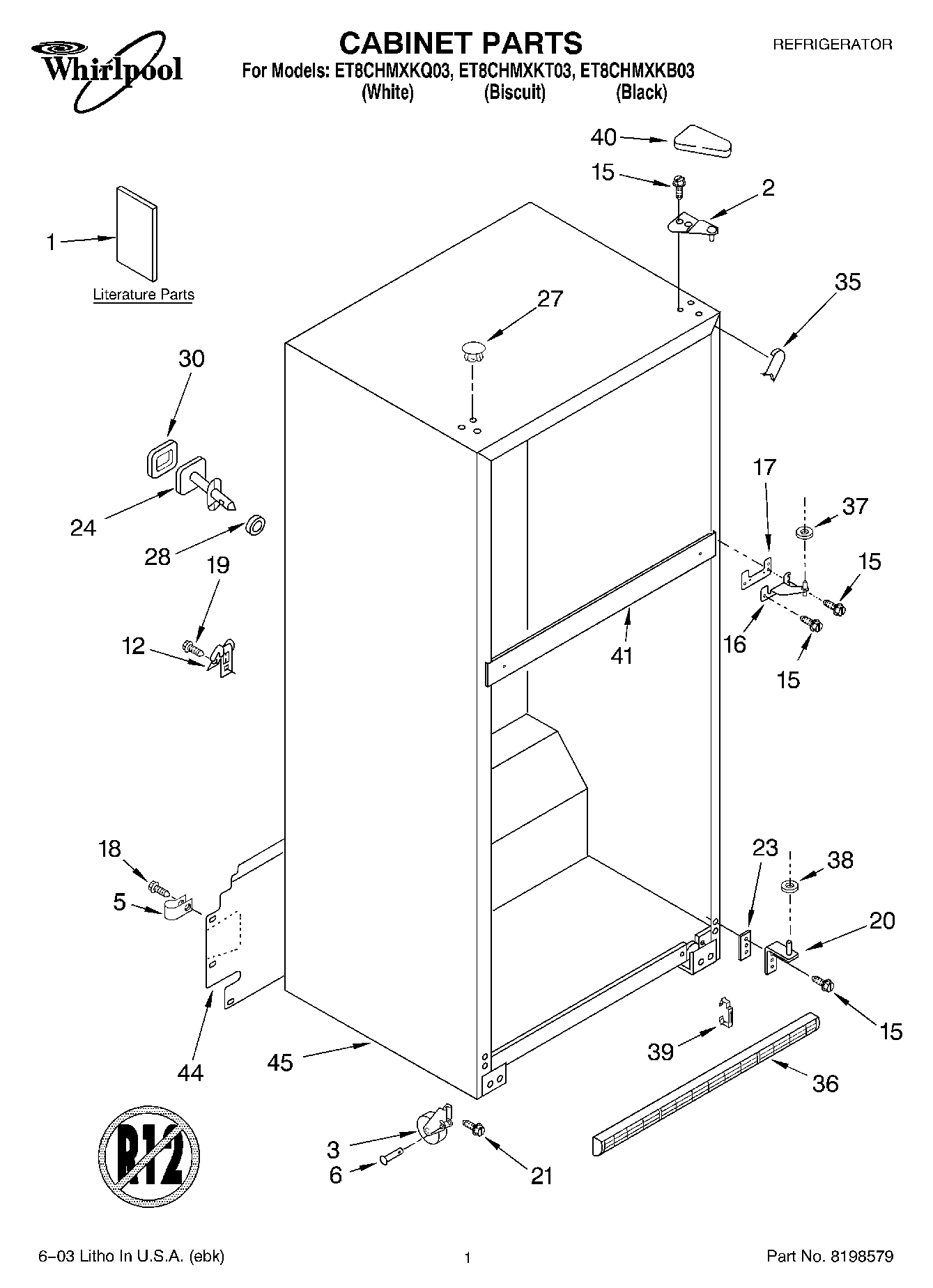

ET8CHMXKB03 01 – CABINET PARTSadmin2025-04-26T10:33:32+00:00ET8CHMXKB03 01 – CABINET PARTS ProductsPositionProduct1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS1Literature Parts (Use & Care Guide)1Literature Parts (Customer Instructions)1Literature Parts (Energy Label)1Literature Parts (Service & Wiring Sheet)1Literature Parts (Do-It-Yourself Manual Ref./Frz.)1Modular Icemaker Service Sheet2WP2261963 Whirlpool Refrigerator Door Hinge3WP2166108 Whirlpool Refrigerator Cabinet Roller5WP488366 Whirlpool Refrigerator Clamp6W11594405 Whirlpool Axle12549193 Whirlpool Refrigerator Power Clamp15WP489497 Whirlpool Screw16WP2254618 Whirlpool Center Door Hinge17WP2183854 Whirlpool Refrigerator Shim18WP488787 Whirlpool Refrigerator Screw19WP489464 Whirlpool Refrigerator Screw20WP2254473 Whirlpool Refrigerator Door Hinge21WP3400504 Whirlpool Refrigerator Screw23Shim, Bottom Hinge24Fitting, Water Tube (Not Serviced)27Hole Plug (6) (Biscuit)27WP2183998 Whirlpool Refrigerator Button Plug27WP2151652 Whirlpool Refrigerator Button Plug28Seal, Front (Not Serviced)30Seal, Rear (Not Serviced)35WPW10283959 Whirlpool Refrigerator Filler35W11252732 Whirlpool Refrigerator Filler35W10283958 Whirlpool Refrigerator Filler36WP2254386 Whirlpool Refrigerator Grille36Grille (Black)37WP489467 Whirlpool Hinge Shim38WP487576 Whirlpool Washer39CLIP, GRILLE40WP2213363 Whirlpool Refrigerator Cover40WP2213360 Whirlpool Refrigerator Cover402213364 Whirlpool Refrigerator Cover41Rail Center (Not Serviced)44Cover, Unit45Cabinet (Not A Serviceable Part)
