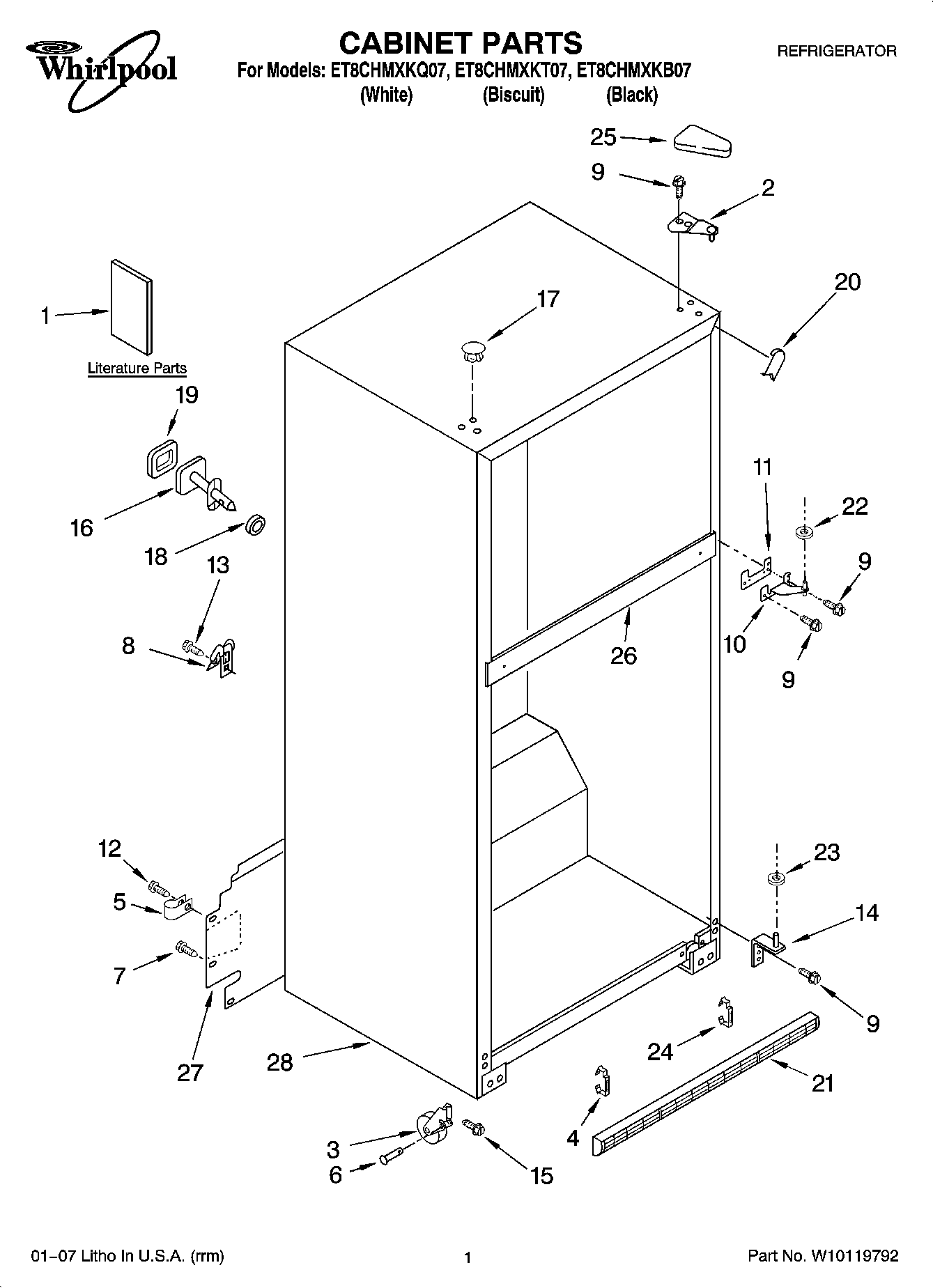

ET8CHMXKB07 01 – CABINET PARTS

Products

PositionProduct
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Energy Label
1Modular Icemaker Service Sheet
1Use & Care Guide
1Service & Wiring Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4CLIP, GRILLE
5WP488366 Whirlpool Refrigerator Clamp
6W11594405 Whirlpool Axle
7WP489427 Whirlpool Refrigerator Screw
8549193 Whirlpool Refrigerator Power Clamp
9WP489497 Whirlpool Screw
10WP2254618 Whirlpool Center Door Hinge
11WP2183854 Whirlpool Refrigerator Shim
12WP488787 Whirlpool Refrigerator Screw
13WP489464 Whirlpool Refrigerator Screw
14WP2254473 Whirlpool Refrigerator Door Hinge
15WP3400504 Whirlpool Refrigerator Screw
16Fitting, Water Tube (Not Serviced)
17Hole Plug (6) (Biscuit)
17WP2151652 Whirlpool Refrigerator Button Plug
17WP2183998 Whirlpool Refrigerator Button Plug
18Seal, Front (Not Serviced)
19Seal, Rear (Not Serviced)
20WPW10283959 Whirlpool Refrigerator Filler
20W10283958 Whirlpool Refrigerator Filler
20W11252732 Whirlpool Refrigerator Filler
21WP2254386 Whirlpool Refrigerator Grille
21Grille (Includes Illus. 4 & 24) (Black)
22WP489467 Whirlpool Hinge Shim
23WP487576 Whirlpool Washer
242254385 Whirlpool Refrigerator Clip
25WP2213363 Whirlpool Refrigerator Cover
252213364 Whirlpool Refrigerator Cover
25WP2213360 Whirlpool Refrigerator Cover
26Rail, Center (Not Serviced)
27Cover, Unit
28Cabinet, (Not A Serviceable Part)
