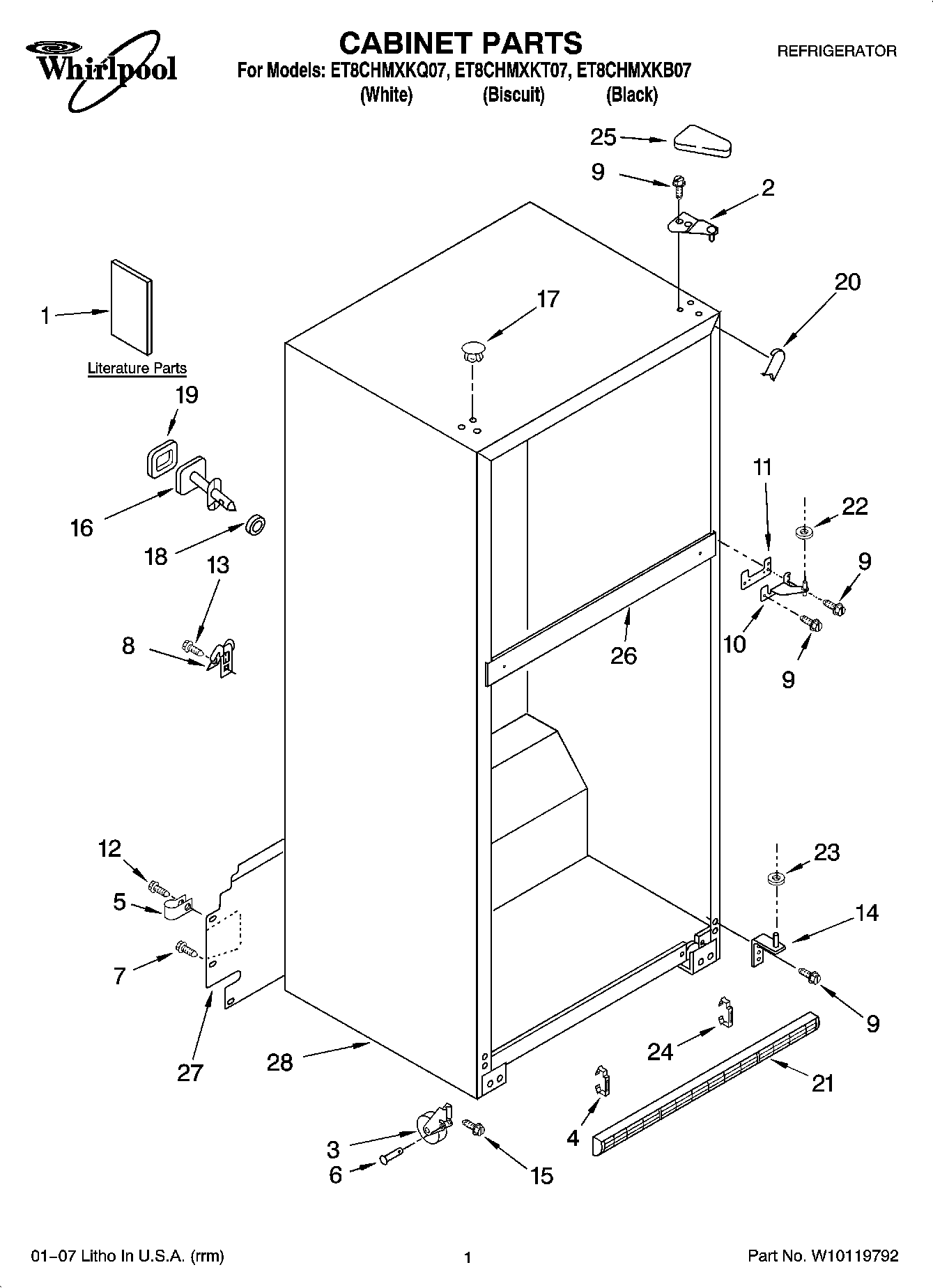

ET8CHMXKQ07 01 – CABINET PARTSadmin2025-04-26T10:34:52+00:00ET8CHMXKQ07 01 – CABINET PARTS ProductsPositionProduct1DO-IT-YOURSELF MANUAL, REF./ FZR.1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS1Energy Label1Modular Icemaker Service Sheet1Use & Care Guide1Service & Wiring Sheet2WP2261963 Whirlpool Refrigerator Door Hinge3WP2166108 Whirlpool Refrigerator Cabinet Roller4CLIP, GRILLE5WP488366 Whirlpool Refrigerator Clamp6W11594405 Whirlpool Axle7WP489427 Whirlpool Refrigerator Screw8549193 Whirlpool Refrigerator Power Clamp9WP489497 Whirlpool Screw10WP2254618 Whirlpool Center Door Hinge11WP2183854 Whirlpool Refrigerator Shim12WP488787 Whirlpool Refrigerator Screw13WP489464 Whirlpool Refrigerator Screw14WP2254473 Whirlpool Refrigerator Door Hinge15WP3400504 Whirlpool Refrigerator Screw16Fitting, Water Tube (Not Serviced)17Hole Plug (6) (Biscuit)17WP2151652 Whirlpool Refrigerator Button Plug17WP2183998 Whirlpool Refrigerator Button Plug18Seal, Front (Not Serviced)19Seal, Rear (Not Serviced)20WPW10283959 Whirlpool Refrigerator Filler20W10283958 Whirlpool Refrigerator Filler20W11252732 Whirlpool Refrigerator Filler21WP2254386 Whirlpool Refrigerator Grille21Grille (Includes Illus. 4 & 24) (Black)22WP489467 Whirlpool Hinge Shim23WP487576 Whirlpool Washer242254385 Whirlpool Refrigerator Clip25WP2213363 Whirlpool Refrigerator Cover252213364 Whirlpool Refrigerator Cover25WP2213360 Whirlpool Refrigerator Cover26Rail, Center (Not Serviced)27Cover, Unit28Cabinet, (Not A Serviceable Part)
