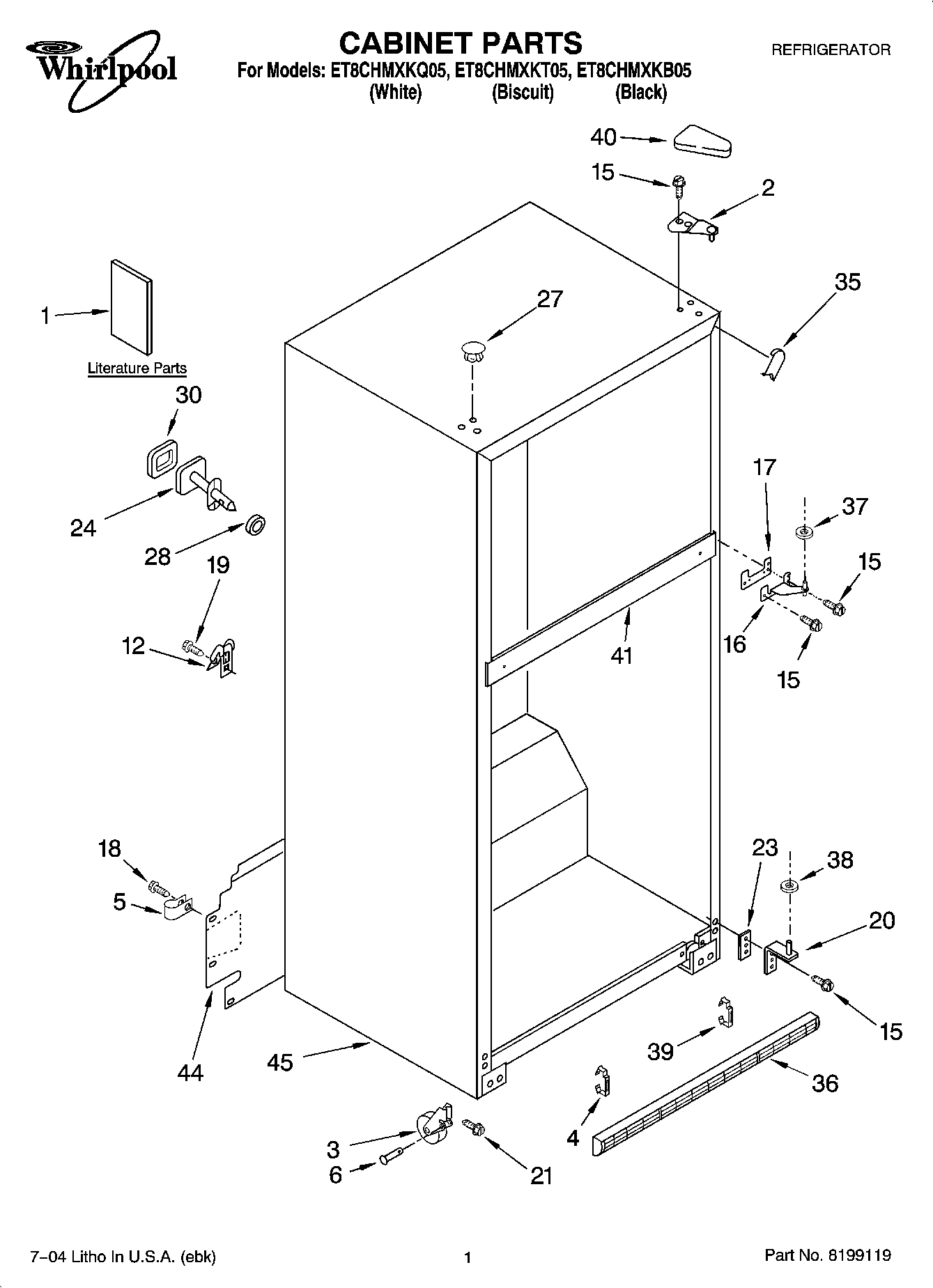

ET8CHMXKT05 01 – CABINET PARTS

ET8CHMXKT05 01 – CABINET PARTS

Written by

in

ET8CHMXKT05 01 – CABINET PARTS

Products

PositionProduct
1Customer Instructions
1Modular Icemaker Service Sheet
1Energy Label
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Service & Wiring Sheet
1Use & Care Guide
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4CLIP, GRILLE
5WP488366 Whirlpool Refrigerator Clamp
6W11594405 Whirlpool Axle
12549193 Whirlpool Refrigerator Power Clamp
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP488787 Whirlpool Refrigerator Screw
19WP489464 Whirlpool Refrigerator Screw
20WP2254473 Whirlpool Refrigerator Door Hinge
21WP3400504 Whirlpool Refrigerator Screw
23Shim, Bottom Hinge
24Fitting, Water Tube (Not Serviced)
27Hole Plug (6) (Biscuit)
27WP2151652 Whirlpool Refrigerator Button Plug
27WP2183998 Whirlpool Refrigerator Button Plug
28Seal, Front (Not Serviced)
30Seal, Rear (Not Serviced)
35W11252732 Whirlpool Refrigerator Filler
35WPW10283959 Whirlpool Refrigerator Filler
35W10283958 Whirlpool Refrigerator Filler
36Grille (Includes Illus. 4 & 24) (Black)
36WP2254386 Whirlpool Refrigerator Grille
37WP489467 Whirlpool Hinge Shim
38WP487576 Whirlpool Washer
392254385 Whirlpool Refrigerator Clip
402213364 Whirlpool Refrigerator Cover
40WP2213360 Whirlpool Refrigerator Cover
40WP2213363 Whirlpool Refrigerator Cover
41Rail Center (Not Serviced)
44Cover, Unit
45Cabinet (Not A Serviceable Part)
