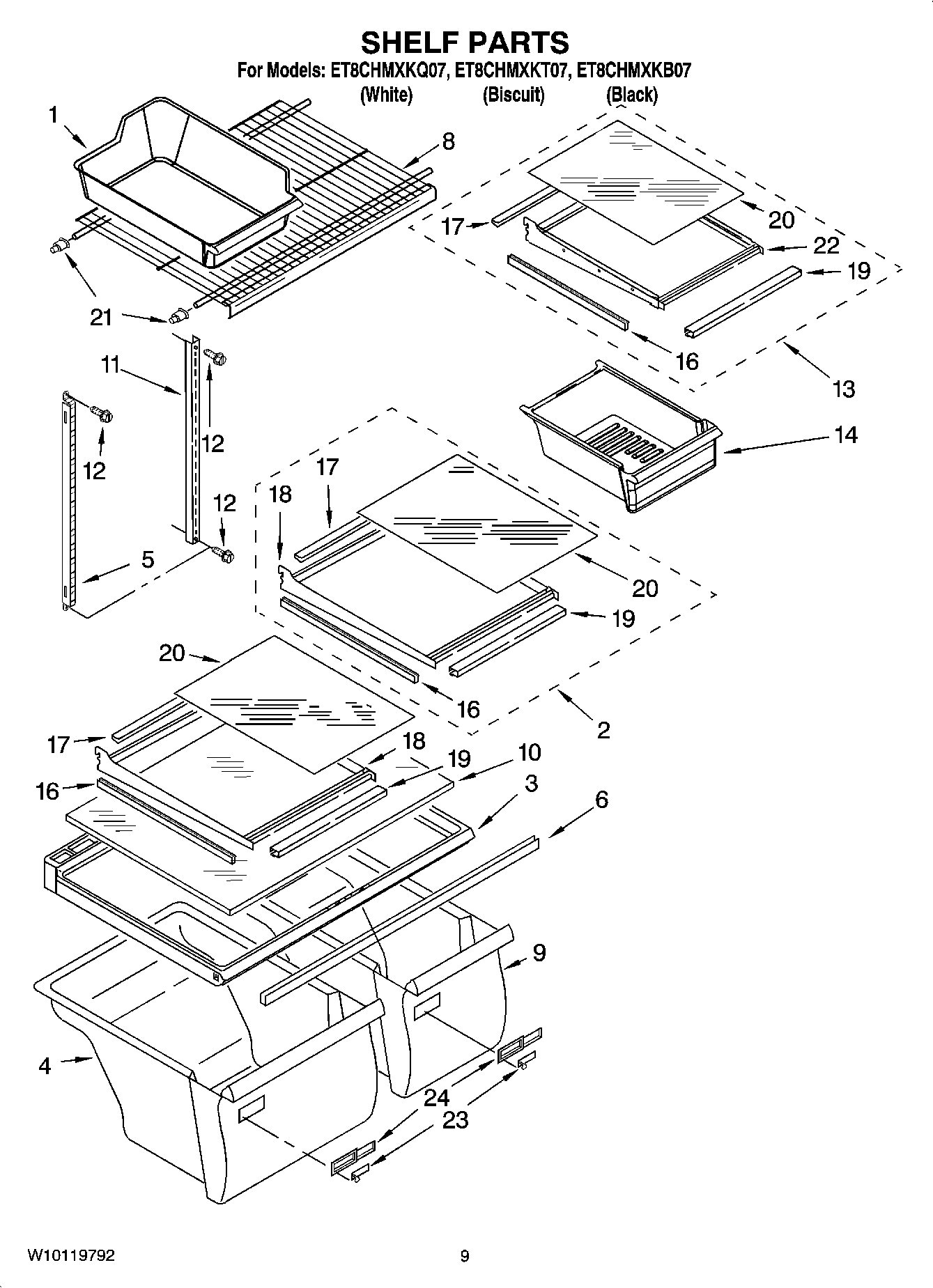

ET8CHMXKT07 05 – SHELF PARTS

Products

Position	Product
1	2254352A Whirlpool Refrigerator Ice Container
2	Shelf, Cantilever (Complete)
3	WP2314548 Whirlpool Refrigerator Cover
4	W10854037 Whirlpool Refrigerator Crisper Pan
5	Shelf, Ladder Center
6	WP2172748 Whirlpool Drawer Support
8	WP2176275 Whirlpool Refrigerator Wire Shelf
9	W10856580 Whirlpool Crisper Pan
10	WP2169921 Whirlpool Refrigerator Glass Shelf
11	Shelf, Ladder (2)
12	WP489478 Whirlpool Refrigerator Screw
13	Shelf, Cantilever Meat Pan (Complete)
14	PAN-MEAT
16	Trim, Shelf Side
17	WP2188689 Whirlpool Refrigerator Shelf Trim
18	Shelf, Catnilever
19	Trim, Shelf Front
20	Glass, Half Shelf
21	2163762 Whirlpool Refrigerator Cup Assembly
22	Shelf, Cantilever Meat Pan
23	WP2176222 Whirlpool Refrigerator Slide
24	WP2212446 Whirlpool Refrigerator Control Body
