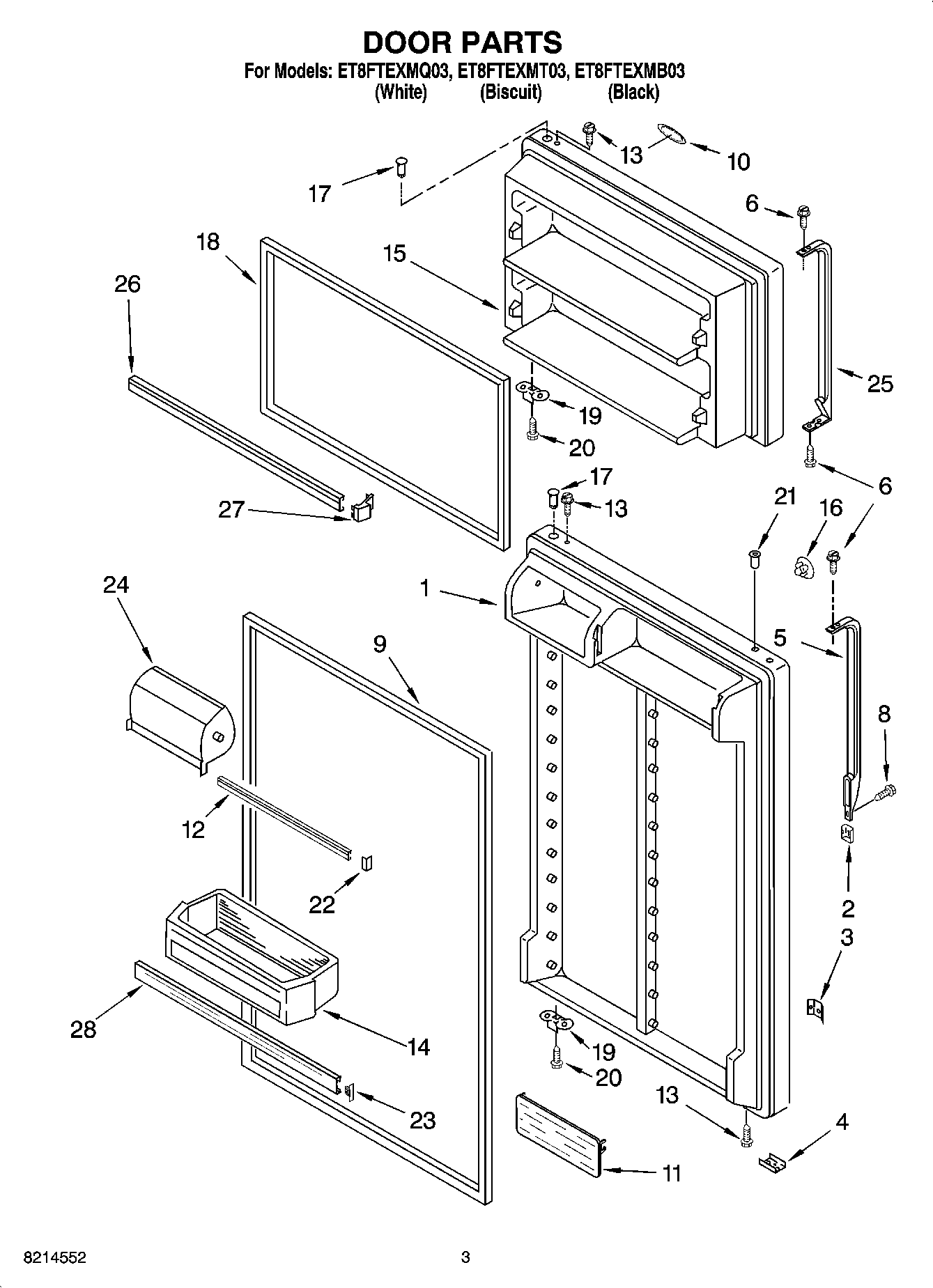

ET8FTEXMT03 02 – DOOR PARTS

ET8FTEXMT03 02 – DOOR PARTS

Written by

in

ET8FTEXMT03 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 3,4, 9 & 17) (White)
1Refrigerator Door (Includes Illus. 3,4, 9 & 17) (Black)
1Refrigerator Door (Includes Illus. 3,4, 9 & 17) (Biscuit)
2Cover, Trim (Biscuit)
2Cover, Trim (Black)
2WP2193353W Whirlpool Refrigerator Trim Handle
3WP939101 Whirlpool Refrigerator Plate
4W10833053 Whirlpool Refrigerator Plate
6WP489357 Whirlpool Recessed Screw
8WP8281146 Whirlpool Screw
92177305 Whirlpool Refrigerator Door FIP Gasket
92159057 Whirlpool Refrigerator Fresh Food Door Gasket
10WP2213265 Whirlpool Refrigerator Nameplate
11WP2188234 Whirlpool Shelf
12TRIM-DOOR
13WP8281206 Whirlpool Refrigerator Screw
14WP2204810 Whirlpool Refrigerator Cantilever Bin
15Freezer Door (Includes Illus. 4, 17 & 18) (White)
15Freezer Door (Includes Illus. 4,17 & 18) (Black)
15Freezer Door (Includes Illus. 4,17 & 18) (Biscuit)
16WP2200936 Whirlpool Refrigerator Handle Plug
16WP2189009 Whirlpool Refrigerator Handle Plug
16WP2189000 Whirlpool Refrigerator Handle Plug
17WP2183003 Whirlpool Thimble
182159327 Whirlpool Refrigerator Door Gasket
182177304 Whirlpool Refrigerator FIP Gasket
19W11745278 Whirlpool Bracket
20WP488921 Whirlpool Refrigerator Screw
21WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
21WP2212649 Whirlpool Refrigerator Button Plug
21WP2212651 Whirlpool Refrigerator Button Plug
22ENDCAP-TRM
23WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
24WP2218113 Whirlpool Dairy Door
254388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
254388949 Whirlpool Refrigerator Handle
254388950 Whirlpool Refrigerator Handle
26Trim-Door (2)
27ENDCAP
28WPW10421484 Whirlpool Refrigerator Door Trim
