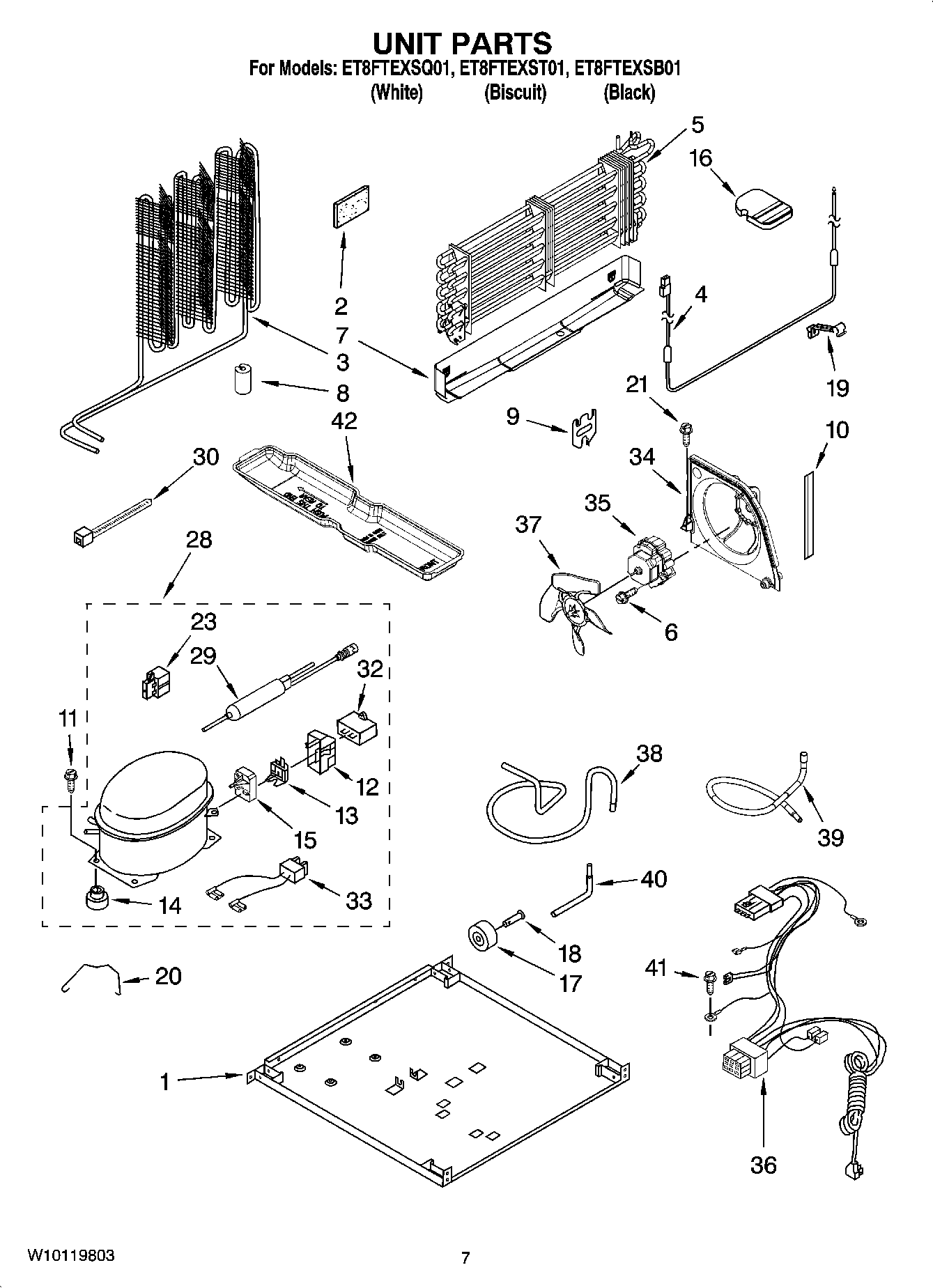

ET8FTEXSB01 04 – UNIT PARTS

Products

PositionProduct
1Plate, Unit Mounting
2W11553819 Whirlpool Refrigerator Insulation
3WP2214960 Whirlpool Refrigerator Condenser
4WP2315531 Whirlpool Refrigerator Heater
5Evaporator Assy.
6WPW10171469 Whirlpool Refrigerator Screw
7Drain Pan
8W10852725 Whirlpool Refrigerator Grommet
9Bracket, Heater
10Extension, Air Baffle
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2214067 Whirlpool Refrigerator Overload Relay
14876811 Whirlpool Grommet
14WP4387558 Whirlpool Refrigerator Compressor Grommet
15WP2225929 Whirlpool Refrigerator Start Device
16Support Block
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
202212996 Whirlpool Refrigerator Retainer
213400518 Whirlpool Oven Foot Mount Screw
23W10920279 Whirlpool Refrigerator Start Relay
28W10309988 Whirlpool Refrigerator Compressor
29WPW10143759 Whirlpool Dryer Filter
30WPW10339879 Whirlpool Wire Tie
32WPW10662129 Whirlpool Refrigerator Run Capacitor
33WP2172890 Whirlpool Refrigerator Wire
34WP2315541 Whirlpool Refrigerator Air Baffle
35W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
362310433 Whirlpool Refrigerator Wire Harness
37W11458267 Whirlpool Refrigerator Fan Blade
38Tube, Discharge
39Tube, Suction
402154109 Whirlpool Refrigerator Tube
41WP489128 Whirlpool Refrigerator Screw
42VALVE, ACCESS (5/8“)
42Following Parts Not Illustrated and Optional Parts Not Included
42876764 Whirlpool Refrigerator Primary Valve
42978027 Whirlpool Refrigerator Primary Valve
42978030 Whirlpool Refrigerator Valve
42WP978025 Whirlpool Refrigerator Valve
42VALVE, ACCESS (1/2“)
42WP2254574 Whirlpool Refrigerator Evaporator Tray
42978026 Whirlpool Refrigerator Primary Valve
42REFRIGERANT CHARGE 4.00 Ozs. (R134A)
