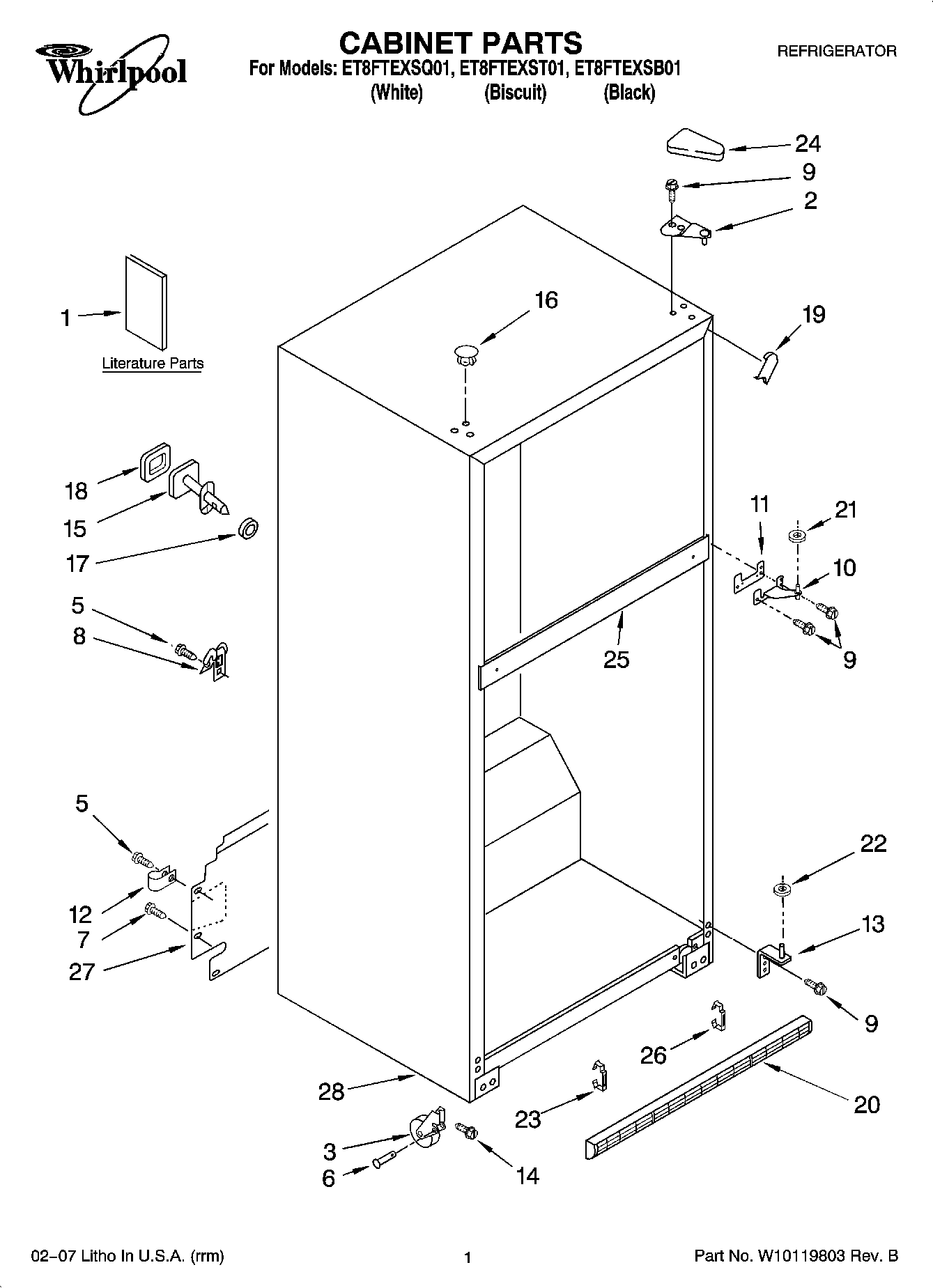

ET8FTEXSQ01 01 – CABINET PARTS

Products

PositionProduct
1Energy Label
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Use & Care Guide
1Service & Wiring Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
5WP489464 Whirlpool Refrigerator Screw
6W11594405 Whirlpool Axle
7WP489427 Whirlpool Refrigerator Screw
8549193 Whirlpool Refrigerator Power Clamp
9WP489497 Whirlpool Screw
10WP2254618 Whirlpool Center Door Hinge
11WP2183854 Whirlpool Refrigerator Shim
12WP488366 Whirlpool Refrigerator Clamp
13WP2254473 Whirlpool Refrigerator Door Hinge
14WP3400504 Whirlpool Refrigerator Screw
15Fitting, Water Tube (Not Serviced)
16WP2151652 Whirlpool Refrigerator Button Plug
16WP2183998 Whirlpool Refrigerator Button Plug
16Hole Plug (6) (Biscuit)
17Seal, Front (Not Serviced)
18Seal, Rear (Not Serviced)
19W11252732 Whirlpool Refrigerator Filler
19WPW10283959 Whirlpool Refrigerator Filler
19W10283958 Whirlpool Refrigerator Filler
20WP2254386 Whirlpool Refrigerator Grille
20Grille (Includes Illus. 4 & 24) (Black)
21WP489467 Whirlpool Hinge Shim
22WP487576 Whirlpool Washer
23CLIP, GRILLE
24WP2213363 Whirlpool Refrigerator Cover
24WP2213360 Whirlpool Refrigerator Cover
242213364 Whirlpool Refrigerator Cover
25Rail, Center (Not Serviced)
262254385 Whirlpool Refrigerator Clip
27Cover, Unit
28Cabinet, (Not A Serviceable Part)
