ET8FTEXVB00 01 – CABINET PARTS

ET8FTEXVB00 01 – CABINET PARTS

Written by

in

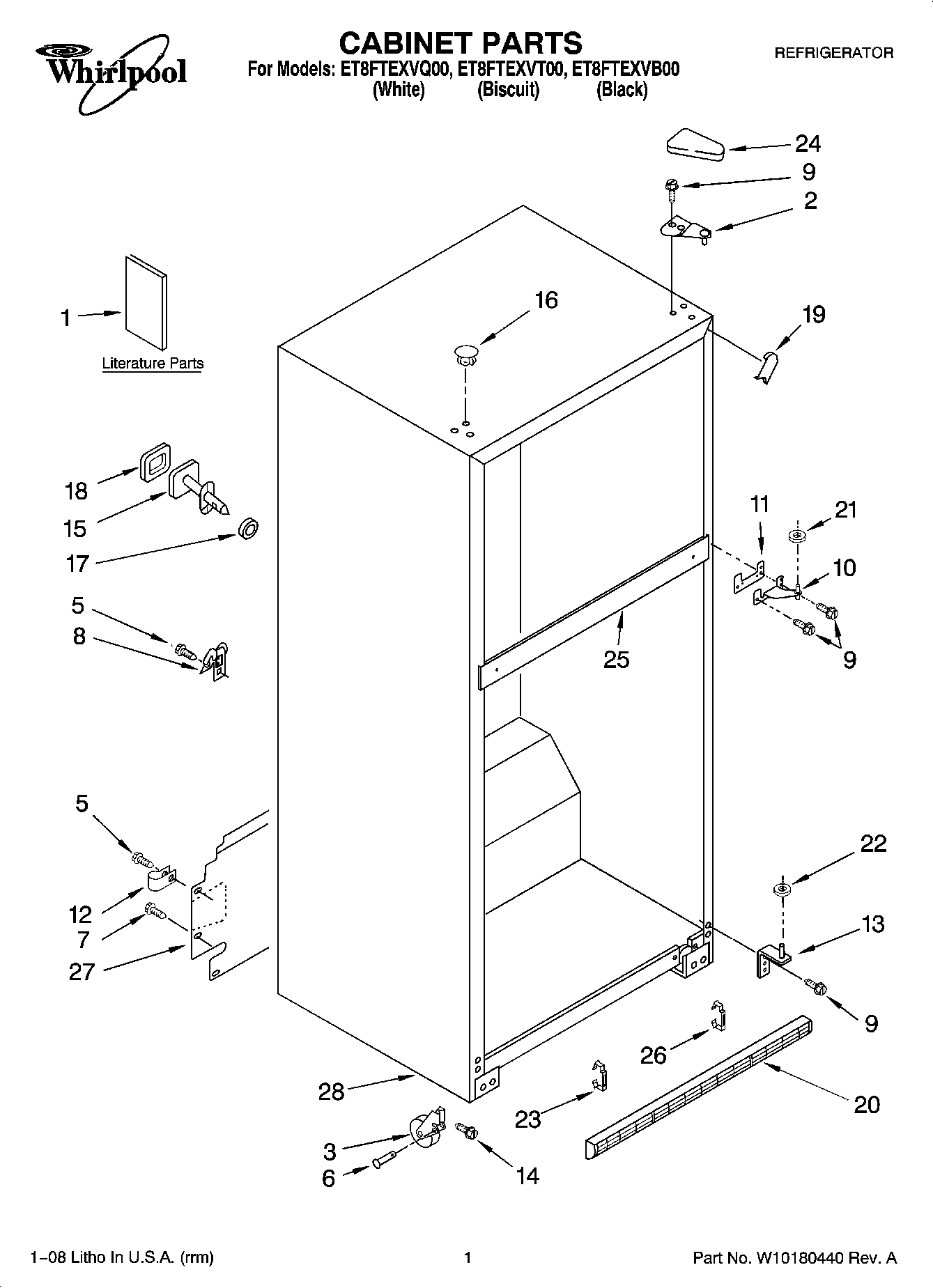

ET8FTEXVB00 01 – CABINET PARTS

Products

PositionProduct
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Service & Wiring Sheet
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Use & Care Guide (Bilingual)
1Use & Care Guide (Trilingual)
1Energy Label
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
5WP489464 Whirlpool Refrigerator Screw
6W11594405 Whirlpool Axle
7WP489427 Whirlpool Refrigerator Screw
8549193 Whirlpool Refrigerator Power Clamp
9WP489497 Whirlpool Screw
10WP2254618 Whirlpool Center Door Hinge
11WP2183852 Whirlpool Refrigerator Shim
12WP488366 Whirlpool Refrigerator Clamp
13WP2254473 Whirlpool Refrigerator Door Hinge
14WP3400504 Whirlpool Refrigerator Screw
15Fitting, Water Tube (Not Serviced)
16Hole Plug (6) (Biscuit)
16WP2151652 Whirlpool Refrigerator Button Plug
16WP2183998 Whirlpool Refrigerator Button Plug
17Seal, Front (Not Serviced)
18Seal, Rear (Not Serviced)
19W10283958 Whirlpool Refrigerator Filler
19WPW10283959 Whirlpool Refrigerator Filler
19W11252732 Whirlpool Refrigerator Filler
20Grille (Includes Illus. 4 & 24) (Black)
20WP2254386 Whirlpool Refrigerator Grille
21WP489467 Whirlpool Hinge Shim
22WP487576 Whirlpool Washer
23CLIP, GRILLE
24WP2213363 Whirlpool Refrigerator Cover
242213364 Whirlpool Refrigerator Cover
24WP2213360 Whirlpool Refrigerator Cover
25Rail, Center (Not Serviced)
262254385 Whirlpool Refrigerator Clip
27Cover, Unit
28Cabinet, (Not A Serviceable Part)
