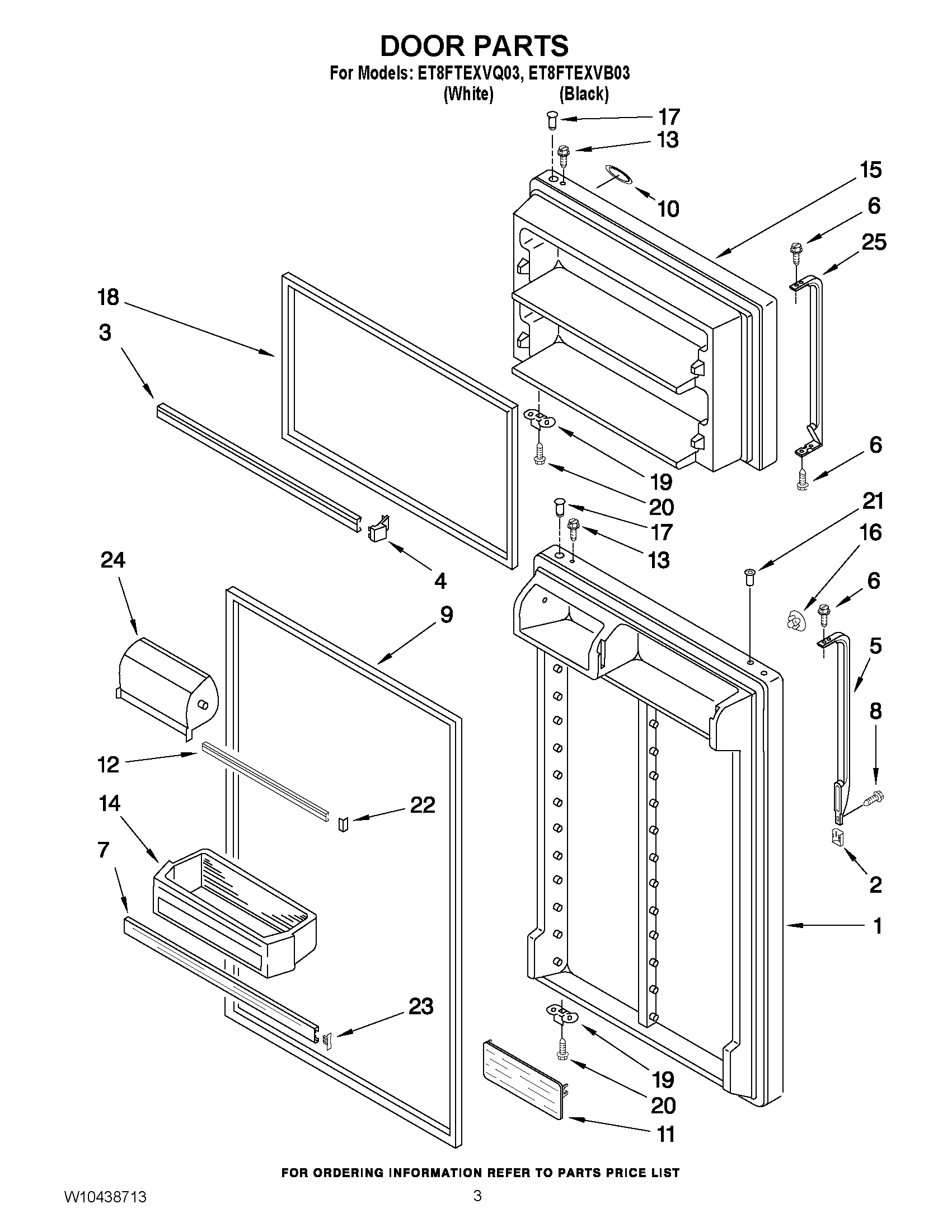

ET8FTEXVB03 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Illus. 3,4, 9 & 17) (White)
1	Refrigerator Door (Includes Illus. 3,4, 9 & 17) (Black)
2	WP2193353W Whirlpool Refrigerator Trim Handle
2	Cover, Trim (Black)
3	Trim-Door (2)
4	ENDCAP
6	WP489357 Whirlpool Recessed Screw
7	WPW10421484 Whirlpool Refrigerator Door Trim
8	WP8281146 Whirlpool Screw
9	2177305 Whirlpool Refrigerator Door FIP Gasket
9	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
10	WP2213265 Whirlpool Refrigerator Nameplate
11	WP2188234 Whirlpool Shelf
12	TRIM-DOOR
13	WP8281206 Whirlpool Refrigerator Screw
14	WP2204810 Whirlpool Refrigerator Cantilever Bin
15	Freezer Door (Includes Illus. 4, 17 & 18) (White)
15	Freezer Door (Includes Illus. 4,17 & 18) (Black)
16	WP2189000 Whirlpool Refrigerator Handle Plug
16	WP2189009 Whirlpool Refrigerator Handle Plug
17	WP2314293 Whirlpool Refrigerator Thimble
18	2159327 Whirlpool Refrigerator Door Gasket
18	2177304 Whirlpool Refrigerator FIP Gasket
19	W11745278 Whirlpool Bracket
20	WP488921 Whirlpool Refrigerator Screw
21	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
21	WP2212651 Whirlpool Refrigerator Button Plug
22	ENDCAP-TRM
23	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
24	WP2218113 Whirlpool Dairy Door
25	4388950 Whirlpool Refrigerator Handle
25	4388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
