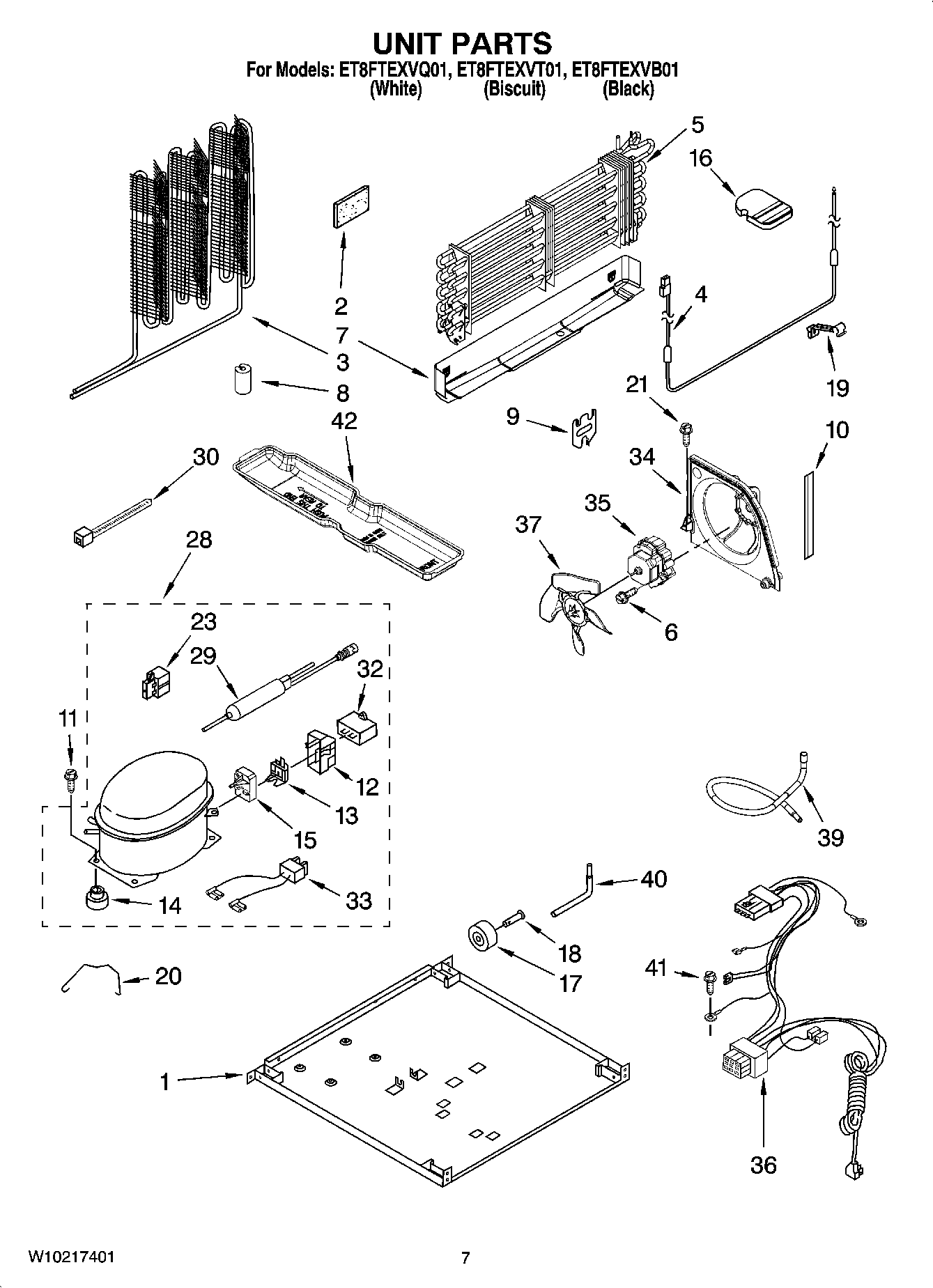

ET8FTEXVQ01 04 – UNIT PARTS

ET8FTEXVQ01 04 – UNIT PARTS

Written by

in

ET8FTEXVQ01 04 – UNIT PARTS

Products

Position	Product
	978026 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	REFRIGERANT CHARGE 4.00 Ozs. (R134A)
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (5/8“)
1	Plate, Unit Mounting
2	W11553819 Whirlpool Refrigerator Insulation
3	Condenser
4	WP2315531 Whirlpool Refrigerator Heater
5	Evaporator Assy.
6	W11501418 Whirlpool Refrigerator Screw
7	Drain Pan
8	W10852725 Whirlpool Refrigerator Grommet
9	Bracket, Heater
10	Extension, Air Baffle
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2214067 Whirlpool Refrigerator Overload Relay
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	WP2320150 Whirlpool Refrigerator Start Device
16	Support Block
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
20	2223314 Whirlpool Refrigerator Clip
21	3400518 Whirlpool Oven Foot Mount Screw
23	W10920279 Whirlpool Refrigerator Start Relay
28	W10309988 Whirlpool Refrigerator Compressor
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	WP2172890 Whirlpool Refrigerator Wire
34	WP2315541 Whirlpool Refrigerator Air Baffle
35	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
36	2310433 Whirlpool Refrigerator Wire Harness
37	W11458267 Whirlpool Refrigerator Fan Blade
39	2214924 Whirlpool Refrigerator Tube
40	2154109 Whirlpool Refrigerator Tube
41	WP489128 Whirlpool Refrigerator Screw
42	WP2254574 Whirlpool Refrigerator Evaporator Tray
