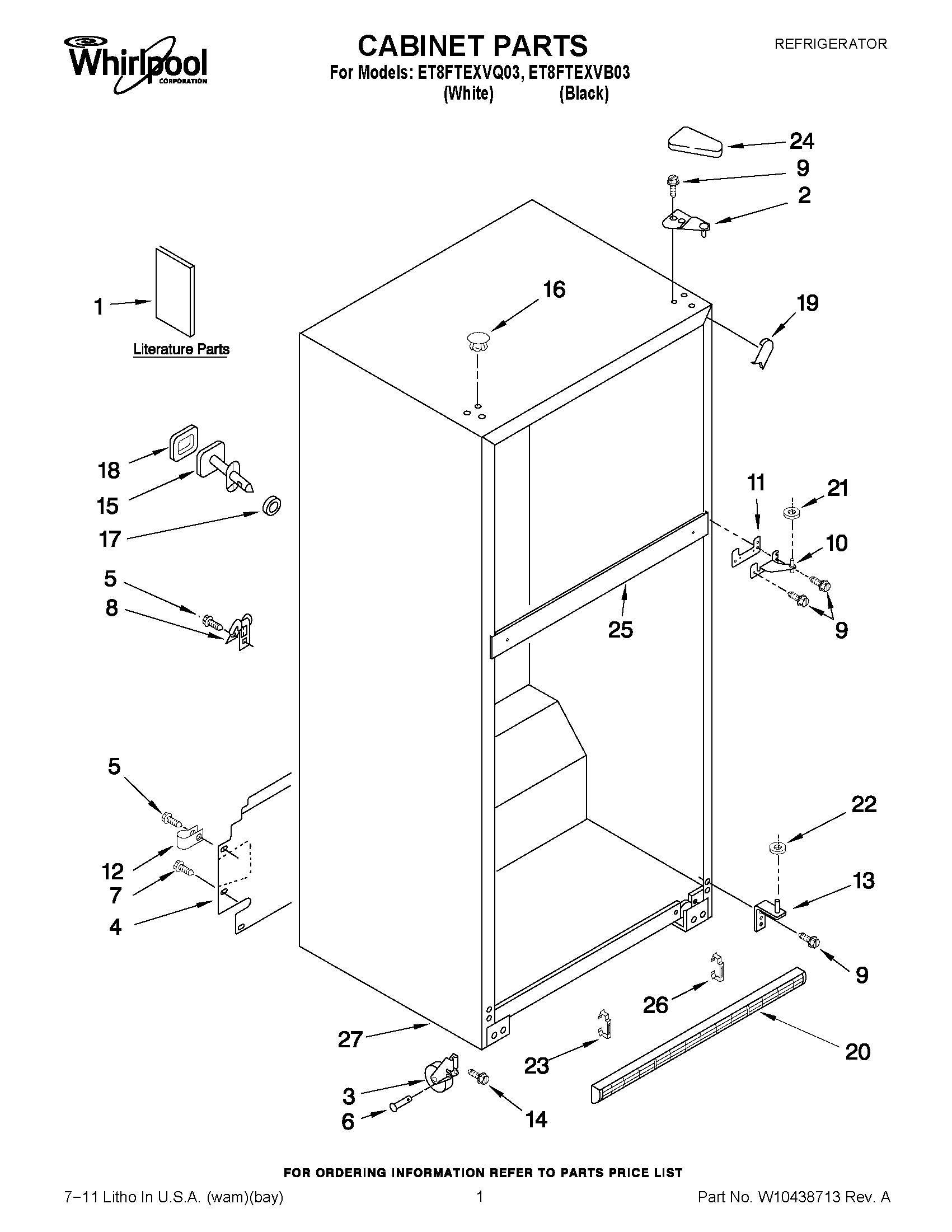

ET8FTEXVQ03 01 – CABINET PARTS

Products

Position	Product
1	USE & CARE GUIDE (TRILINGUAL)
1	USE & CARE GUIDE (ENGLISH)
1	SERVICE & WIRING SHEET
1	Energy Label
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	Cover, Unit
5	WP489464 Whirlpool Refrigerator Screw
6	W11594405 Whirlpool Axle
7	WP489427 Whirlpool Refrigerator Screw
8	549193 Whirlpool Refrigerator Power Clamp
9	WP489497 Whirlpool Screw
10	WP2254618 Whirlpool Center Door Hinge
11	WP2183852 Whirlpool Refrigerator Shim
12	WP488366 Whirlpool Refrigerator Clamp
13	WP2254473 Whirlpool Refrigerator Door Hinge
14	WP3400504 Whirlpool Refrigerator Screw
16	WP2151652 Whirlpool Refrigerator Button Plug
16	WP2183998 Whirlpool Refrigerator Button Plug
19	W11252732 Whirlpool Refrigerator Filler
19	WPW10283959 Whirlpool Refrigerator Filler
20	Grille (Includes Illus. 4 & 24) (Black)
20	WP2254386 Whirlpool Refrigerator Grille
21	WP489467 Whirlpool Hinge Shim
22	WP487576 Whirlpool Washer
23	CLIP, GRILLE
24	WP2213363 Whirlpool Refrigerator Cover
24	WP2213360 Whirlpool Refrigerator Cover
26	2254385 Whirlpool Refrigerator Clip
27	CABINET (NOT A SERVICEABLE PART)
