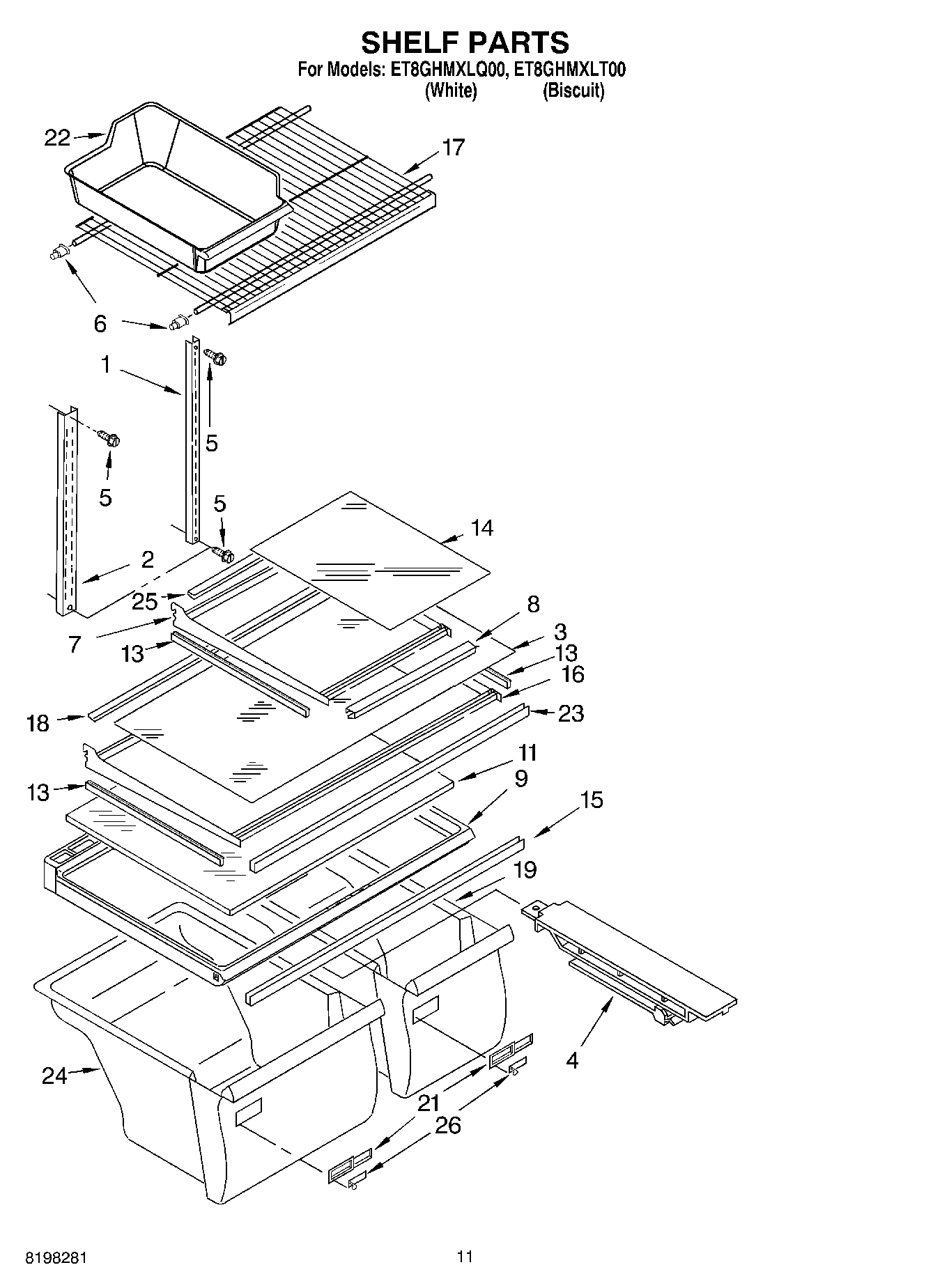

ET8GHMXLQ00 06 – SHELF, OPTIONAL

ET8GHMXLQ00 06 – SHELF, OPTIONAL

Written by

in

ET8GHMXLQ00 06 – SHELF, OPTIONAL

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder
3Glass, Full Shelf
4WP2163835 Whirlpool Track Assembly
5WP489478 Whirlpool Refrigerator Screw
62163762 Whirlpool Refrigerator Cup Assembly
7Shelf, Cantilever (Complete)
8Trim, Shelf
9WP2314548 Whirlpool Refrigerator Cover
11WP2169921 Whirlpool Refrigerator Glass Shelf
13Trim, Shelf Side
14Glass, Half Shelf
15WP2172748 Whirlpool Drawer Support
16(Complete Shelf Not Shown Includes Items 3,13,16,18 & 21)
17Shelf, Freezer
19W10856580 Whirlpool Crisper Pan
21WP2212446 Whirlpool Refrigerator Control Body
222254352A Whirlpool Refrigerator Ice Container
23Trim, Shelf Front
24W10854037 Whirlpool Refrigerator Crisper Pan
25WP2188689 Whirlpool Refrigerator Shelf Trim
26606755 Whirlpool Refrigerator Bag
264392901 Whirlpool Biscuit Spray Paint
264392899 Whirlpool Biscuit Touch-Up Paint
26WP2176222 Whirlpool Refrigerator Slide
26350942 Whirlpool Spray Paint
26212643 Whirlpool Refrigerator Permagum Sealer
26799344 Whirlpool Refrigerator Paint
2672017 Whirlpool Appliance Touch-Up Paint White
26350930 Whirlpool White Spray Paint
26833938 Whirlpool Refrigerator Terminal
26876370 Whirlpool Refrigerator Insulation
2672032 Whirlpool Touch Up Paint Black
26WPL 799833
26WPL 876029
26W11729596 Whirlpool Ice Maker Field Install Kit
26PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
26Torx Key
26WP542638 Whirlpool Refrigerator Grease
26WP505587 Whirlpool Refrigerator Sealer
26CEMENT, ALUMILASTIC (1 1/4 OZ.)
26WP503695 Whirlpool Refrigerator Sealer
26285006 Whirlpool Spray
26TAPE, VINYL (3/4 X 108“)
