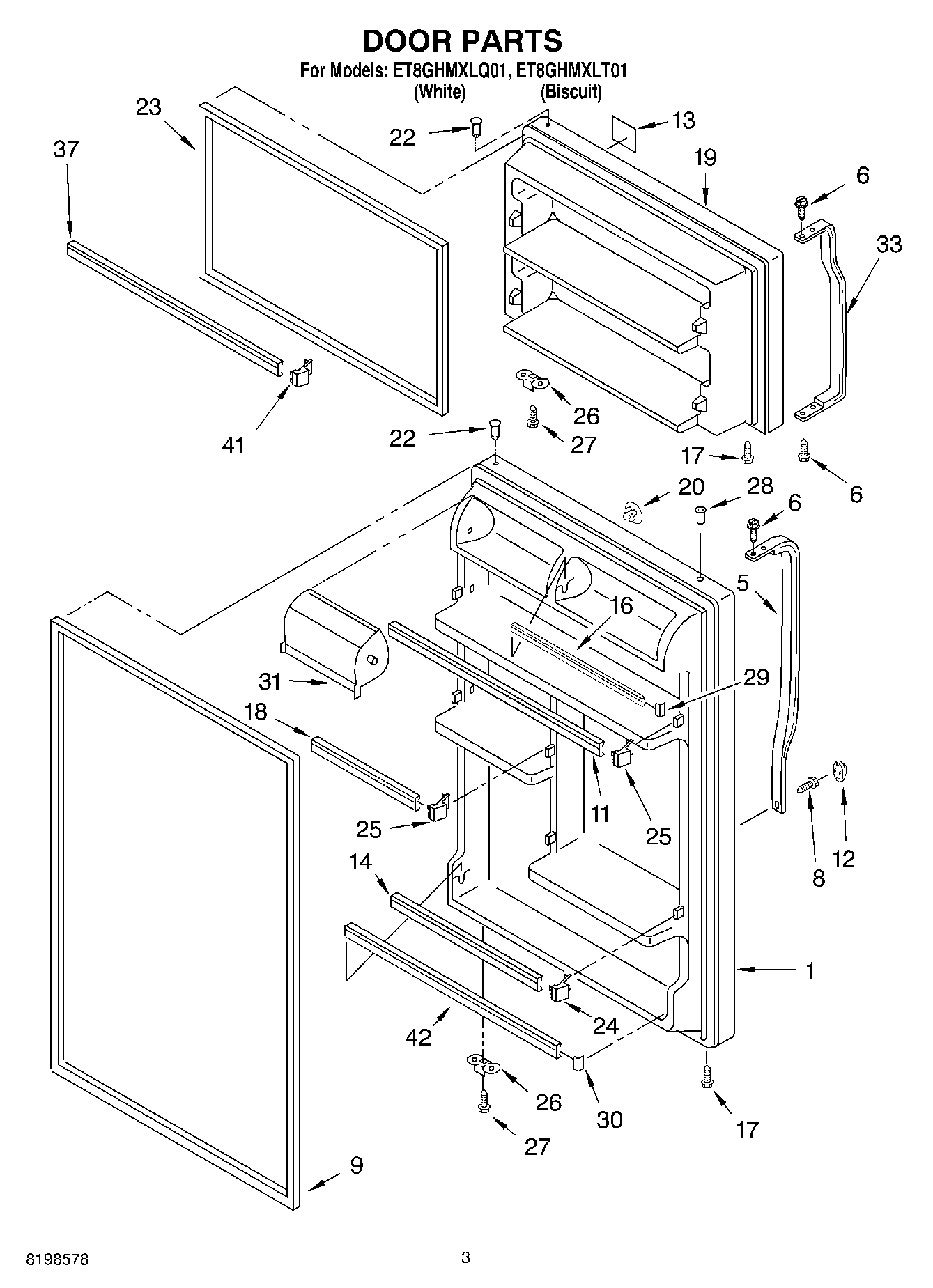

ET8GHMXLQ01 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes No.9 & No.22) (Biscuit)
1	Refrigerator Door (Includes No.9 & No.22) (White)
5	Handle Center (Biscuit)
5	WP2202807W Whirlpool Handle Door
6	WP489357 Whirlpool Recessed Screw
8	WP8281146 Whirlpool Screw
9	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
11	Trim, Door Shelf
12	WP2202819W Whirlpool Refrigerator Cover
12	Cover, Screw (Biscuit)
13	Nameplate (White)
13	Nameplate (Biscuit)
14	WP2195943 Whirlpool Shelf Retainer Bar
16	TRIM-DOOR
17	WP8281206 Whirlpool Refrigerator Screw
18	Trim, Door
19	Freezer Door (Includes Illus. 4,17 & 18) (Biscuit)
19	Freezer Door (Includes Illus. 4, 17 & 18) (White)
20	WP2200936 Whirlpool Refrigerator Handle Plug
20	WP2189000 Whirlpool Refrigerator Handle Plug
22	WP2183003 Whirlpool Thimble
23	2159327 Whirlpool Refrigerator Door Gasket
24	WP2195915 Whirlpool Door Shelf Support
26	W11745278 Whirlpool Bracket
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
28	WP2212649 Whirlpool Refrigerator Button Plug
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	Compartment Door
33	WP2202806W Whirlpool Refrigerator Handle
33	Handle, F.C. (Biscuit)
37	Trim-Door (2)
41	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
42	WPW10421484 Whirlpool Refrigerator Door Trim
