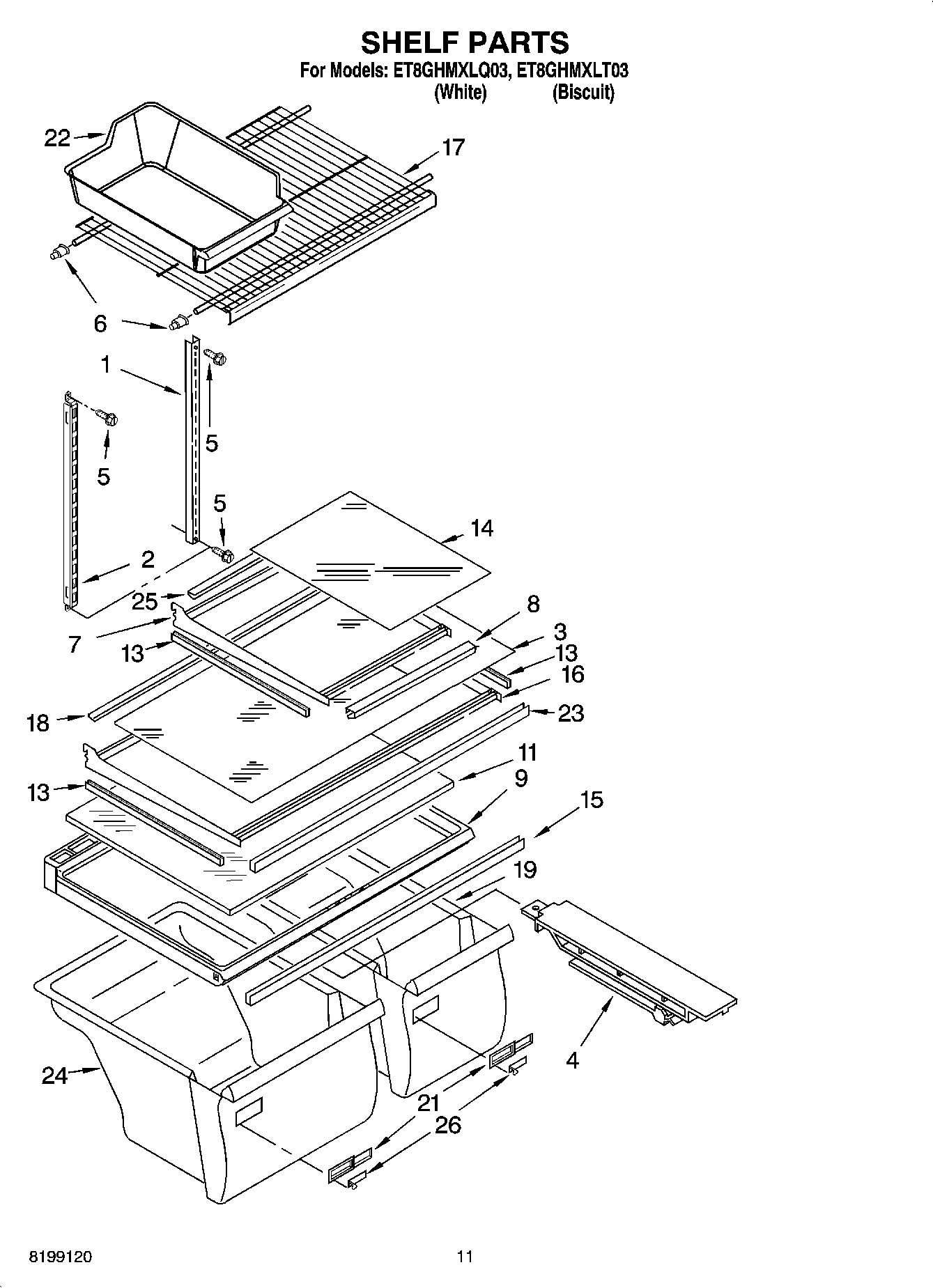

ET8GHMXLQ03 06 – SHELF PARTS, OPTIONAL PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Torx Key
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	WPL 799833
	WPL 876029
	WPL ARI53187A5
	WPL ARI53186A5
	WPL ARI53185A2
	WPL ARI53189A7
	72032 Whirlpool Touch Up Paint Black
	WP542638 Whirlpool Refrigerator Grease
	WP505587 Whirlpool Refrigerator Sealer
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WPL ARI53188A4
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	606755 Whirlpool Refrigerator Bag
	833938 Whirlpool Refrigerator Terminal
	876370 Whirlpool Refrigerator Insulation
	WP503695 Whirlpool Refrigerator Sealer
	285006 Whirlpool Spray
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	Glass, Full Shelf
4	WP2163835 Whirlpool Track Assembly
5	WP489478 Whirlpool Refrigerator Screw
6	2163762 Whirlpool Refrigerator Cup Assembly
7	Shelf, Cantilever (Complete)
8	Trim, Shelf Front
9	WP2314548 Whirlpool Refrigerator Cover
11	WP2169921 Whirlpool Refrigerator Glass Shelf
13	Trim, Shelf Side
14	Glass, Half Shelf
15	WP2172748 Whirlpool Drawer Support
16	(Complete Shelf Not Shown Includes Items 3,13,16,18 & 21)
17	Shelf, Freezer
19	W10856580 Whirlpool Crisper Pan
21	WP2212446 Whirlpool Refrigerator Control Body
22	2254352A Whirlpool Refrigerator Ice Container
23	Trim, Shelf (Front)
24	W10854037 Whirlpool Refrigerator Crisper Pan
25	WP2188689 Whirlpool Refrigerator Shelf Trim
26	WP2176222 Whirlpool Refrigerator Slide
