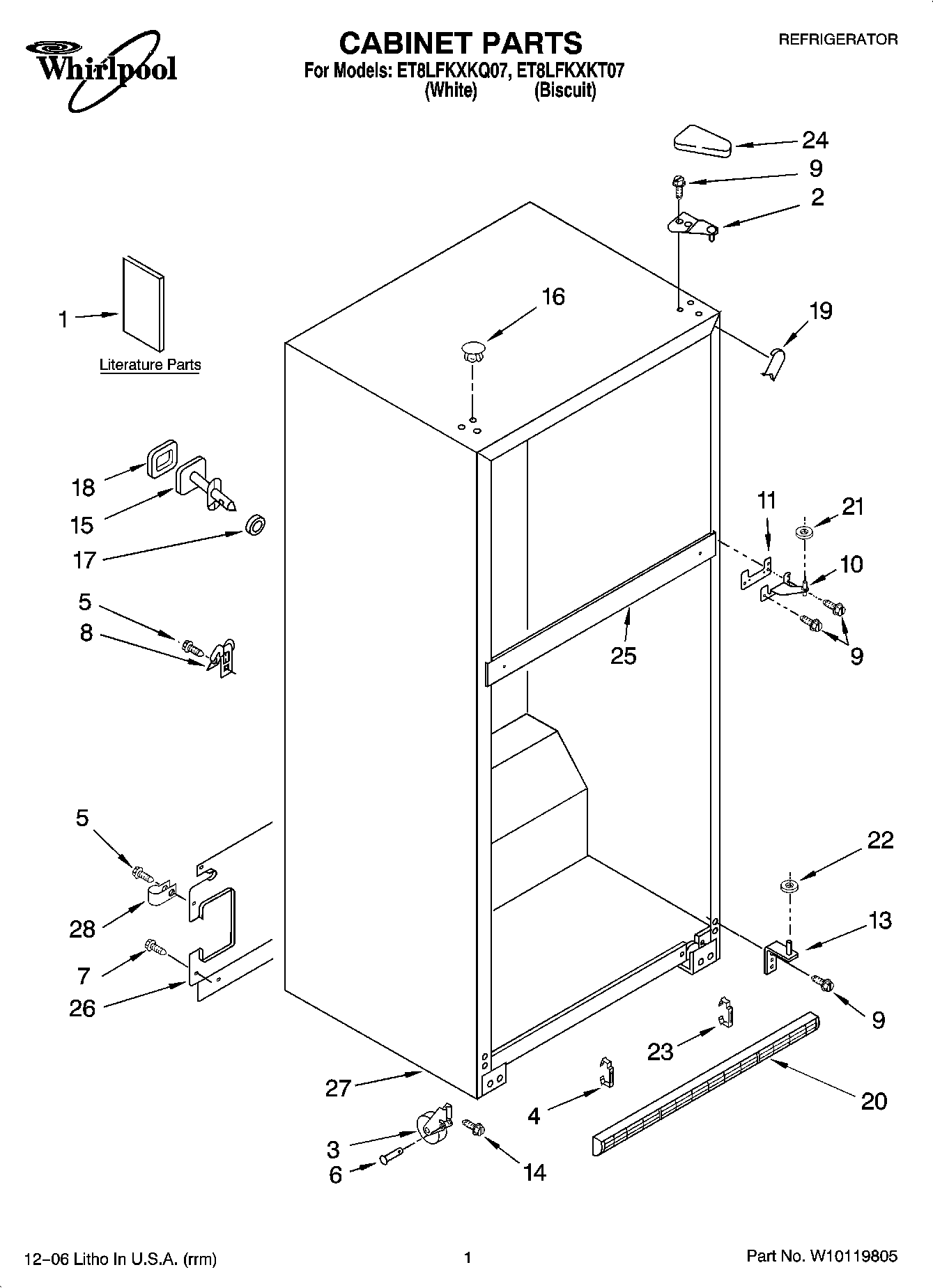

ET8LFKXKQ07 01 – CABINET PARTS

Products

Position	Product
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Use & Care Guide
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Energy Label
1	Service & Wiring Sheet
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	CLIP, GRILLE
5	WP489442 Whirlpool Refrigerator Screw
6	W11594405 Whirlpool Axle
7	WP489427 Whirlpool Refrigerator Screw
8	549193 Whirlpool Refrigerator Power Clamp
9	WP489497 Whirlpool Screw
10	WP2254618 Whirlpool Center Door Hinge
11	WP2183854 Whirlpool Refrigerator Shim
13	WP2254473 Whirlpool Refrigerator Door Hinge
14	WP3400504 Whirlpool Refrigerator Screw
15	Fitting, Water Tube (Not Serviced)
16	Hole Plug (6) (Biscuit)
16	WP2151652 Whirlpool Refrigerator Button Plug
17	Seal, Front (Not Serviced)
18	Seal, Rear (Not Serviced)
19	W10283958 Whirlpool Refrigerator Filler
19	WPW10283959 Whirlpool Refrigerator Filler
20	WP2254386 Whirlpool Refrigerator Grille
21	WP489467 Whirlpool Hinge Shim
22	WP487576 Whirlpool Washer
23	2254385 Whirlpool Refrigerator Clip
24	2213364 Whirlpool Refrigerator Cover
24	WP2213360 Whirlpool Refrigerator Cover
25	Rail, Center (Not Serviced)
26	Cover, Unit
27	Cabinet, (Not A Serviceable Part)
28	WP488366 Whirlpool Refrigerator Clamp
