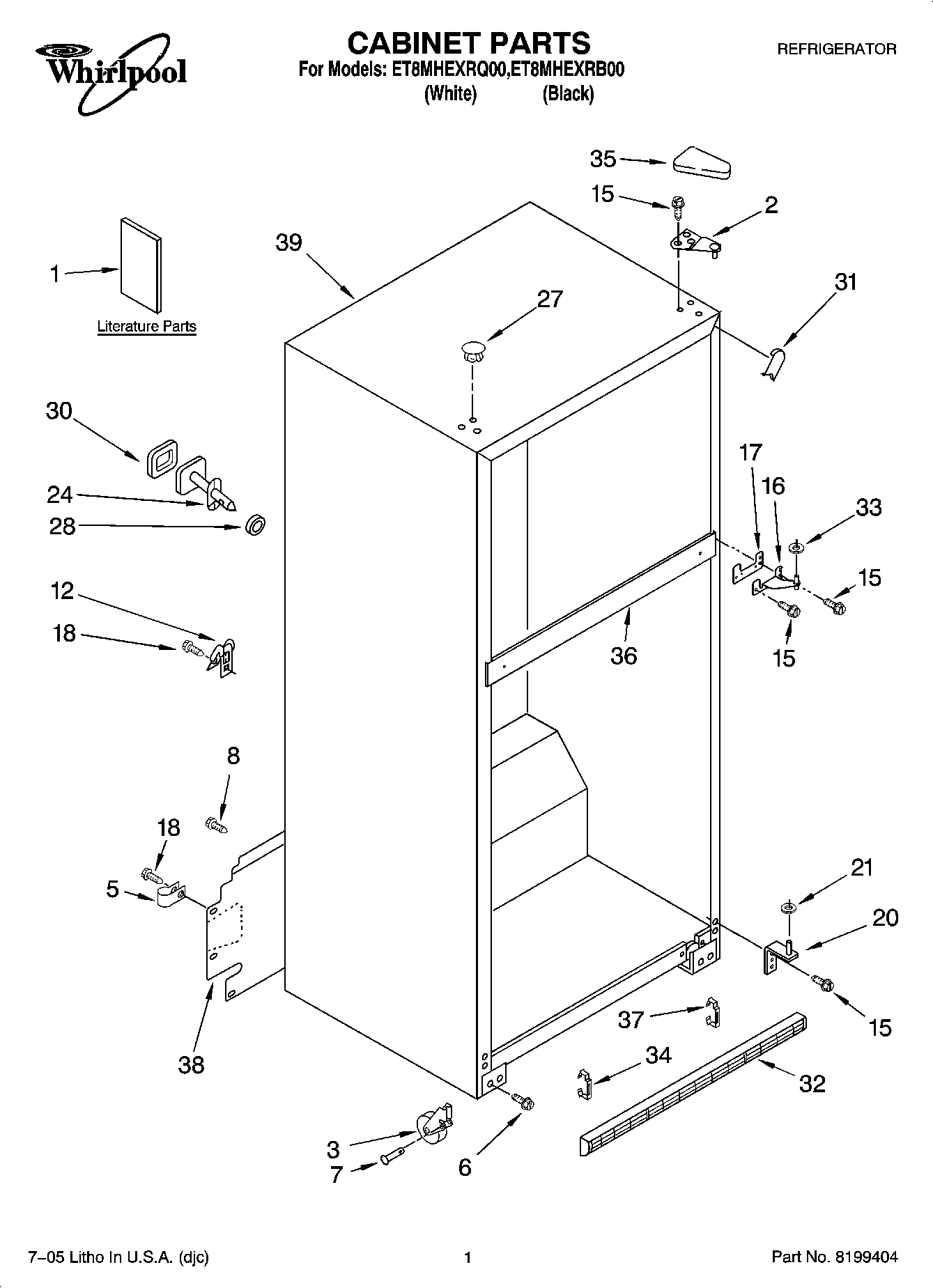

ET8MHEXRB00 01 – CABINET PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Energy Label
1	Use & Care Guide
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Modular Icemaker Service Sheet
1	Customer Instructions
1	Service & Wiring Sheet
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	WP488366 Whirlpool Refrigerator Clamp
6	WP3400504 Whirlpool Refrigerator Screw
7	W11594405 Whirlpool Axle
8	WP489427 Whirlpool Refrigerator Screw
12	549193 Whirlpool Refrigerator Power Clamp
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
20	WP2254473 Whirlpool Refrigerator Door Hinge
21	WP487576 Whirlpool Washer
24	Fitting, Water Tube (Not Serviced)
27	WP2183998 Whirlpool Refrigerator Button Plug
27	WP2151652 Whirlpool Refrigerator Button Plug
28	Seal, Front (Not Serviced)
30	Seal, Rear (Not Serviced)
31	W11252732 Whirlpool Refrigerator Filler
31	WPW10283959 Whirlpool Refrigerator Filler
32	Grille (Includes Illus. 4 & 24) (Black)
32	WP2254386 Whirlpool Refrigerator Grille
33	WP489467 Whirlpool Hinge Shim
34	CLIP, GRILLE
35	WP2213363 Whirlpool Refrigerator Cover
35	WP2213360 Whirlpool Refrigerator Cover
36	Rail Center (Not Serviced)
37	2254385 Whirlpool Refrigerator Clip
38	Cover, Unit
39	Cabinet (Not A Serviceable Part)
