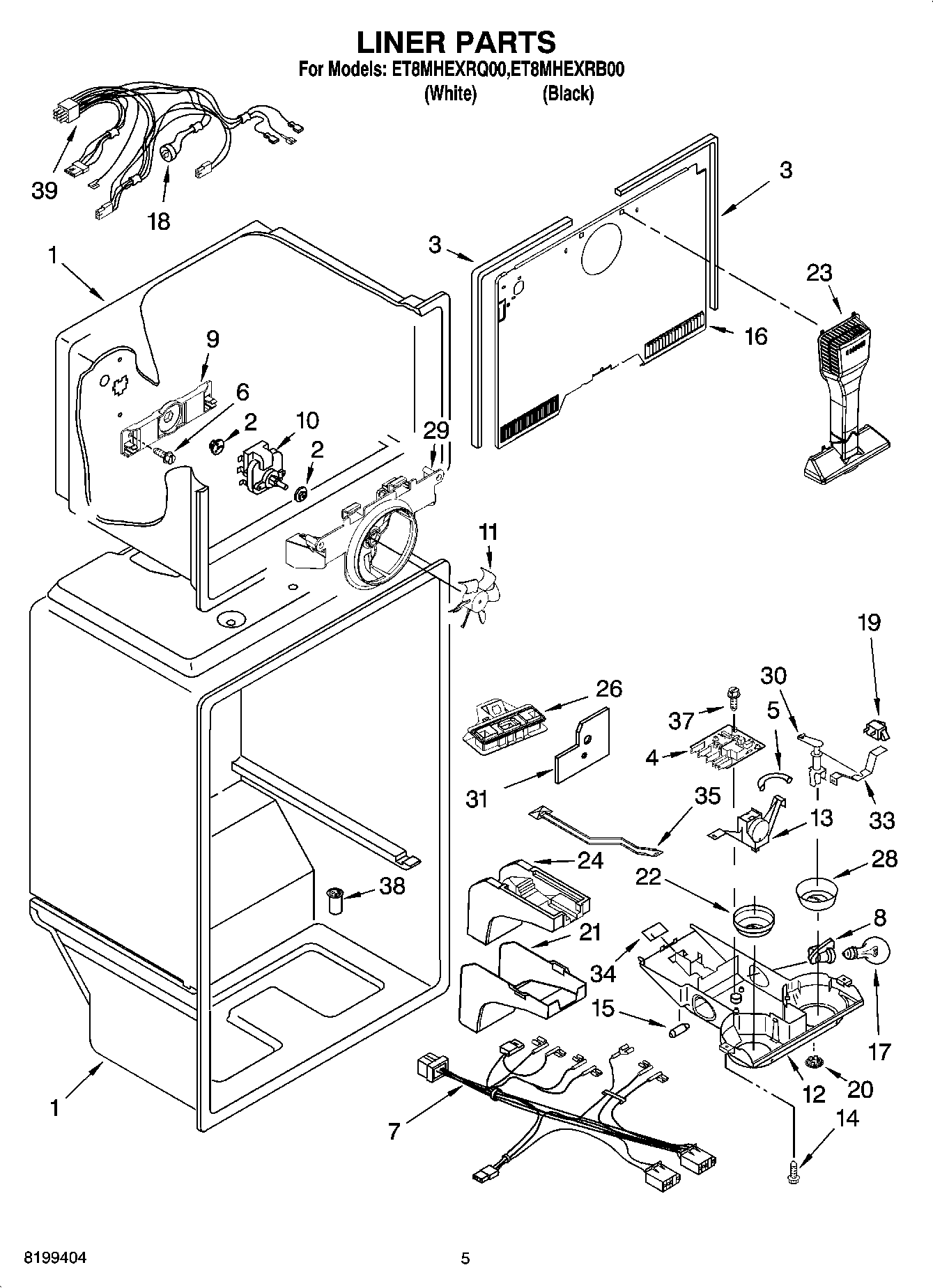

ET8MHEXRB00 03 – LINER PARTS

ET8MHEXRB00 03 – LINER PARTS

Written by

in

ET8MHEXRB00 03 – LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4WP2304099-includeCORE Whirlpool WP2304099 Refrigerator Electronic Control
5Thermostat Tube Barrier
6WP488163 Whirlpool Refrigerator Screw
7Wire Assy. Control Box
84387478 Whirlpool Refrigerator Light Socket
92254454 Whirlpool Refrigerator Bracket
10WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13Thermostat Assy. (Includes Illus. 5 & 18)
14WP489478 Whirlpool Refrigerator Screw
15Weight, Thermal
16Cover-Evaporator
17RANGE ONLY 40W 120V APPL BULB
18WP2321800 Whirlpool Refrigerator Bimetallic Defrost
19W11384469 Whirlpool Door Switch
20940014 Whirlpool Refrigerator Primary Button Plug
21Cover, Air Diffuser
22W10829461 Whirlpool Refrigerator Thermal Knob
23WP2254354 Whirlpool Refrigerator Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
26Air Separator Assembly
28Knob, Damper
29BRACKET, FAN MOTOR
30Post, Damper
31Shield, heat
33Bracket, Damper Knob
34WP2205079 Whirlpool Refrigerator Seal
35Damper, Air
37Screw
38WP2210509 Whirlpool Refrigerator Tub Valve
39Wire Assembly Freezer Compt. (Includes Item 32)
