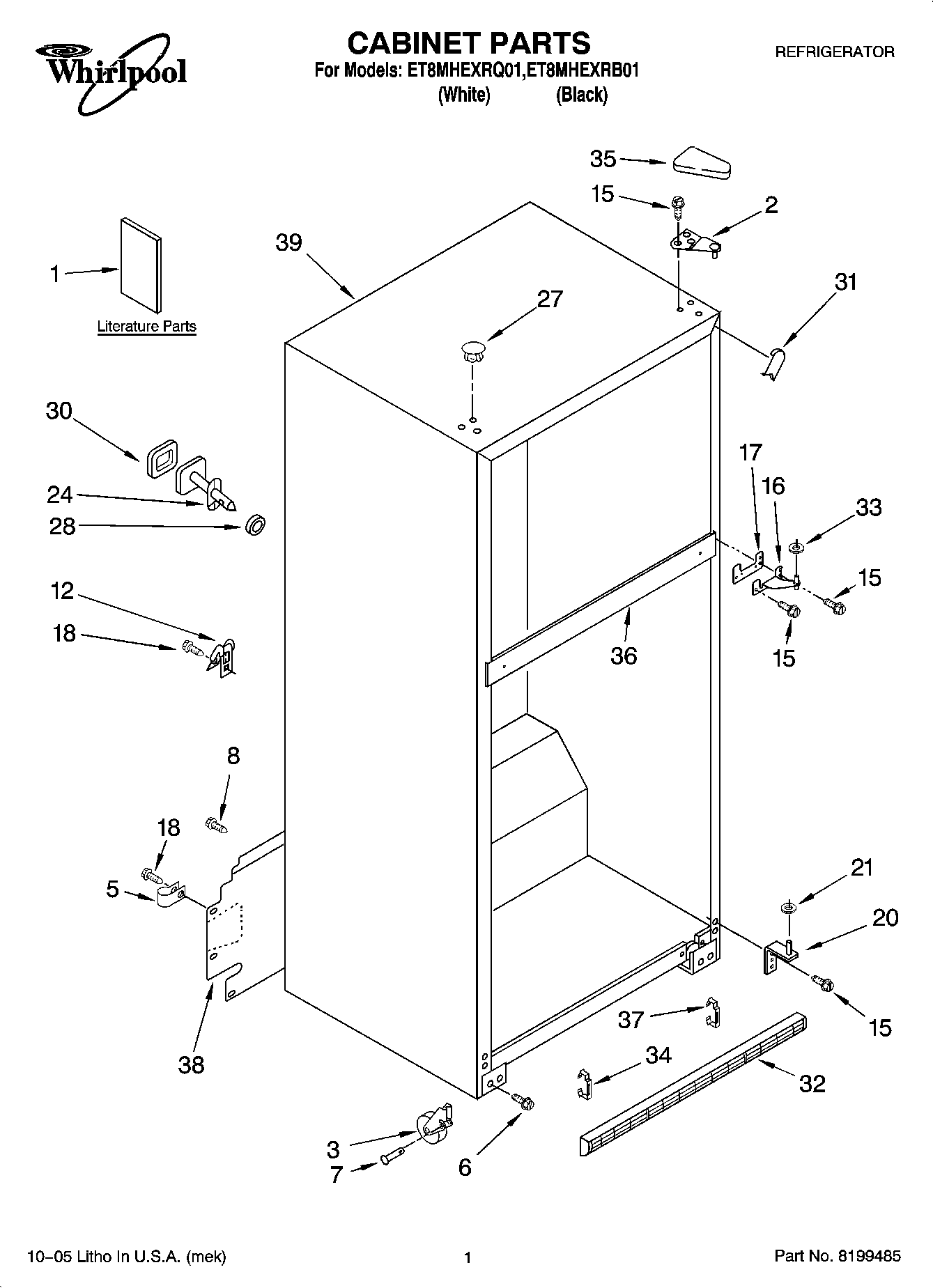

ET8MHEXRB01 01 – CABINET PARTSadmin2025-04-26T10:33:59+00:00ET8MHEXRB01 01 – CABINET PARTS ProductsPositionProduct1DO-IT-YOURSELF MANUAL, REF./ FZR.1Use & Care Guide1Modular Icemaker Service Sheet1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS1Energy Label1Customer Instructions1Service & Wiring Sheet2WP2261963 Whirlpool Refrigerator Door Hinge3WP2166108 Whirlpool Refrigerator Cabinet Roller5WP488366 Whirlpool Refrigerator Clamp6WP3400504 Whirlpool Refrigerator Screw7W11594405 Whirlpool Axle8WP489427 Whirlpool Refrigerator Screw12549193 Whirlpool Refrigerator Power Clamp15WP489497 Whirlpool Screw16WP2254618 Whirlpool Center Door Hinge17WP2183854 Whirlpool Refrigerator Shim18WP489464 Whirlpool Refrigerator Screw20WP2254473 Whirlpool Refrigerator Door Hinge21WP487576 Whirlpool Washer24Fitting, Water Tube (Not Serviced)27WP2151652 Whirlpool Refrigerator Button Plug27WP2183998 Whirlpool Refrigerator Button Plug28Seal, Front (Not Serviced)30Seal, Rear (Not Serviced)31WPW10283959 Whirlpool Refrigerator Filler31W11252732 Whirlpool Refrigerator Filler32Grille (Includes Illus. 4 & 24) (Black)32WP2254386 Whirlpool Refrigerator Grille33WP489467 Whirlpool Hinge Shim34CLIP, GRILLE35WP2213360 Whirlpool Refrigerator Cover35WP2213363 Whirlpool Refrigerator Cover36Rail Center (Not Serviced)372254385 Whirlpool Refrigerator Clip38Cover, Unit39Cabinet (Not A Serviceable Part)
