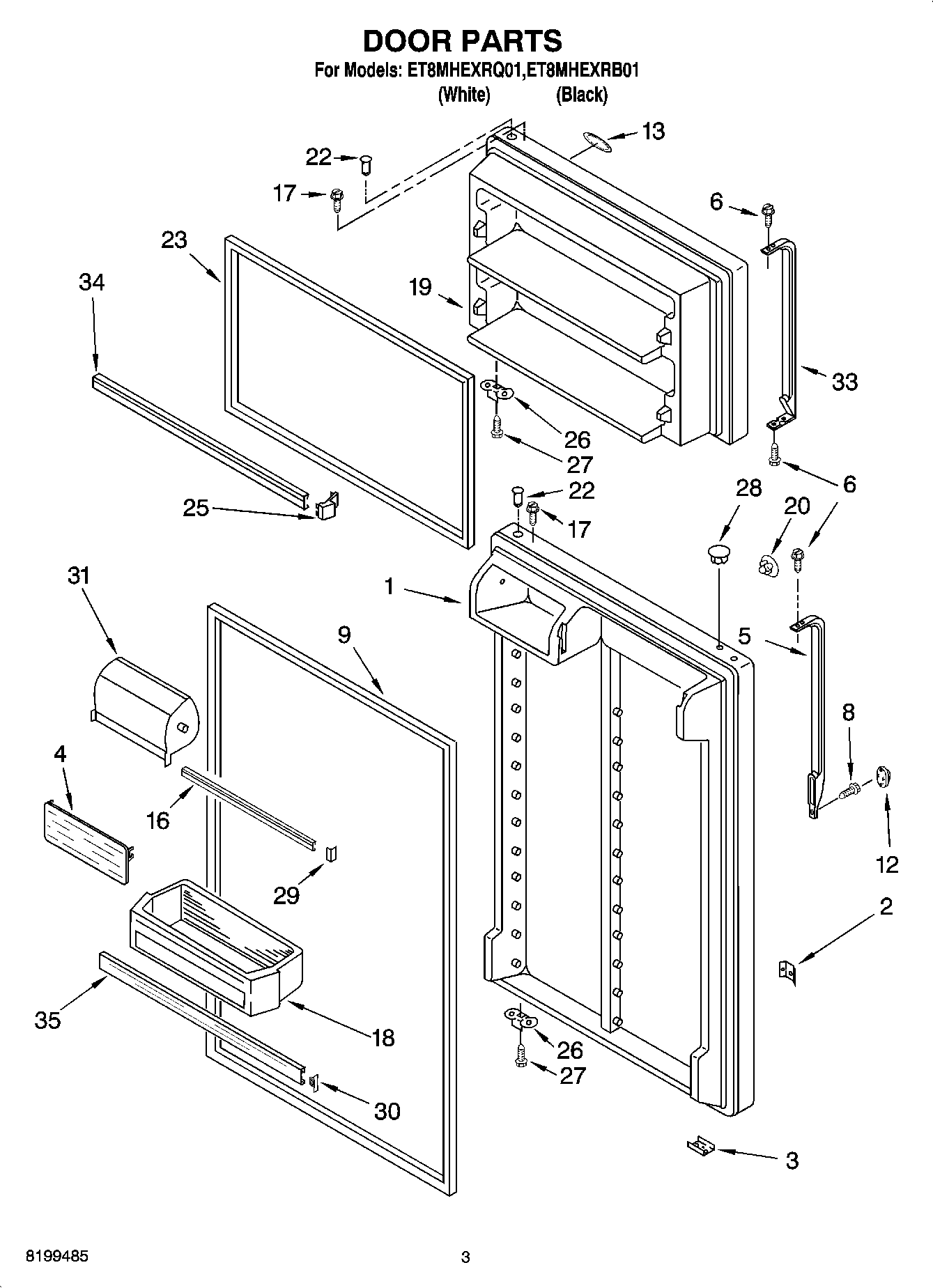

ET8MHEXRB01 02 – DOOR PARTS

ET8MHEXRB01 02 – DOOR PARTS

Written by

in

ET8MHEXRB01 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 3,4, 9 & 17) (White)
1Refrigerator Door (Includes Illus. 3,4, 9 & 17) (Black)
2WP939101 Whirlpool Refrigerator Plate
3W10833053 Whirlpool Refrigerator Plate
4WP2188234 Whirlpool Shelf
5WP2202807W Whirlpool Handle Door
5Handle, Refrigerator (Black)
6WP489357 Whirlpool Recessed Screw
8WP8281146 Whirlpool Screw
92177305 Whirlpool Refrigerator Door FIP Gasket
92159057 Whirlpool Refrigerator Fresh Food Door Gasket
12WP2202819W Whirlpool Refrigerator Cover
12WP2202819B Whirlpool Refrigerator Cover
13WP2213265 Whirlpool Refrigerator Nameplate
16TRIM-DOOR
17WP8281206 Whirlpool Refrigerator Screw
18WP2204810 Whirlpool Refrigerator Cantilever Bin
19Freezer Door (Includes Illus. 4, 17 & 18) (White)
19Freezer Door (Includes Illus. 4,17 & 18) (Black)
20WP2189009 Whirlpool Refrigerator Handle Plug
20WP2189000 Whirlpool Refrigerator Handle Plug
22WP2183003 Whirlpool Thimble
232159327 Whirlpool Refrigerator Door Gasket
232177304 Whirlpool Refrigerator FIP Gasket
25ENDCAP
26W11745278 Whirlpool Bracket
27WP488921 Whirlpool Refrigerator Screw
28WP2212651 Whirlpool Refrigerator Button Plug
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29ENDCAP-TRM
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31WP2218113 Whirlpool Dairy Door
33WP2202806W Whirlpool Refrigerator Handle
33WP2202806B Whirlpool Refrigerator Handle
34Trim-Door (2)
35WPW10421484 Whirlpool Refrigerator Door Trim
